Junction box IP20

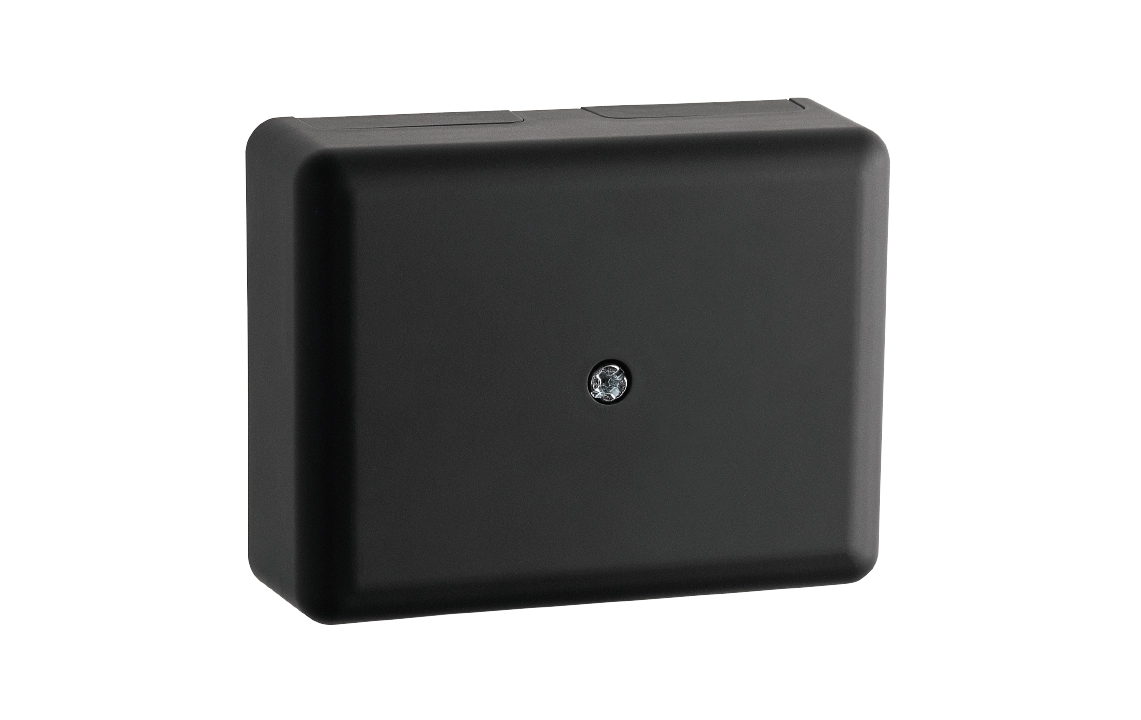

IP20 Junction box Black

Article code
78701
EAN
7021987870113
Back to articlelist

Overview

IP Class
IP20
Mounting
Indoor
    5 years Warranty
  • indoor
  • ip20
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 78701 Revit file - Generic IP20 Terminal Box - generic Revit file - Face Based IP20 box - face based

See more

Mounting instruction IP20 koblingsboks_User Manual

How to specify

Text copied to clipboard

IP20 Junction box Black, Article code: 78701, EAN: 7021987870113, IP20, Electrical: Voltage: Max 440V, Protection: IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Colour: Black (RAL 9004), Halogen free: Yes, Mounting/Connection: Mounting: Indoor, Connection: 6 movable screw terminals for up to 2x6mm², Dimensions: Length (mm) L: 84, Width (mm) W: 65, Height (mm) H: 28, Weight (kg) gross/net: 0.084 / 0.065, Packaging: Packaging dimensions (mm): 84 x 65 x 28, Number per pack: 6

Electrical

Voltage
Max 440V

Protection

IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)
Colour
Black (RAL 9004)
Halogen free
Yes

Mounting/Connection

Mounting
Indoor
Connection
6 movable screw terminals for up to 2x6mm²

Dimensions

Length (mm) L
84
Width (mm) W
65
Height (mm) H
28
Weight (kg) gross/net
0.084 / 0.065

Packaging

Packaging dimensions (mm)
84 x 65 x 28
Number per pack
6
