DCL ceiling outlet / DCL plug

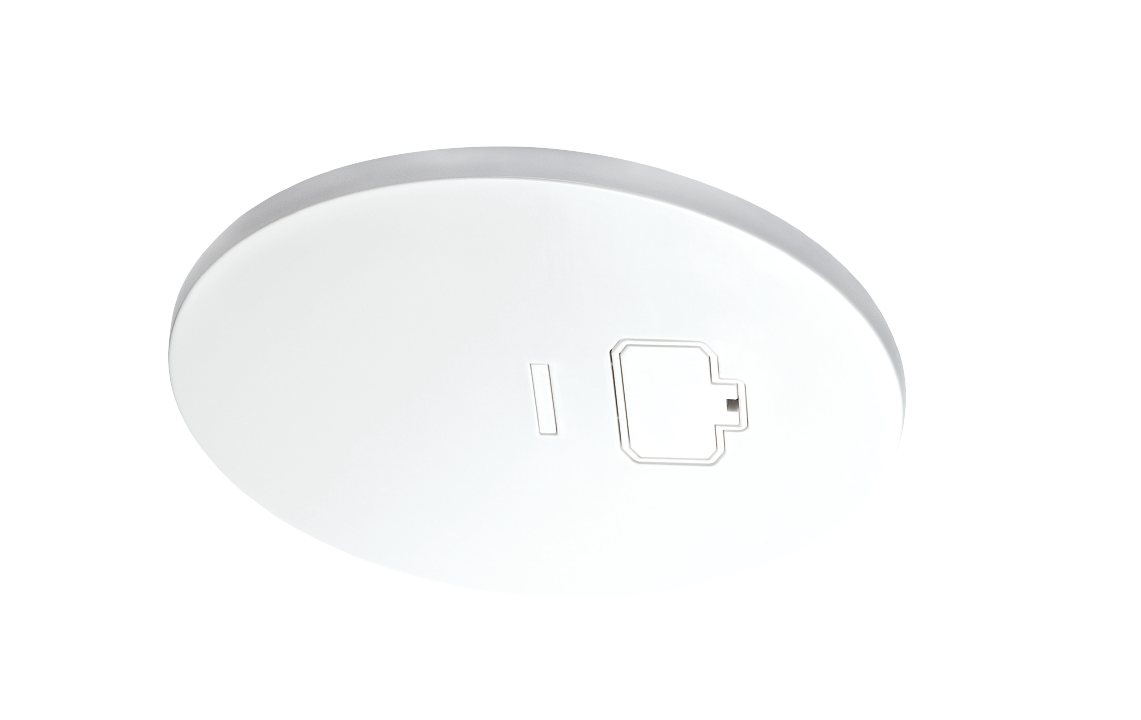

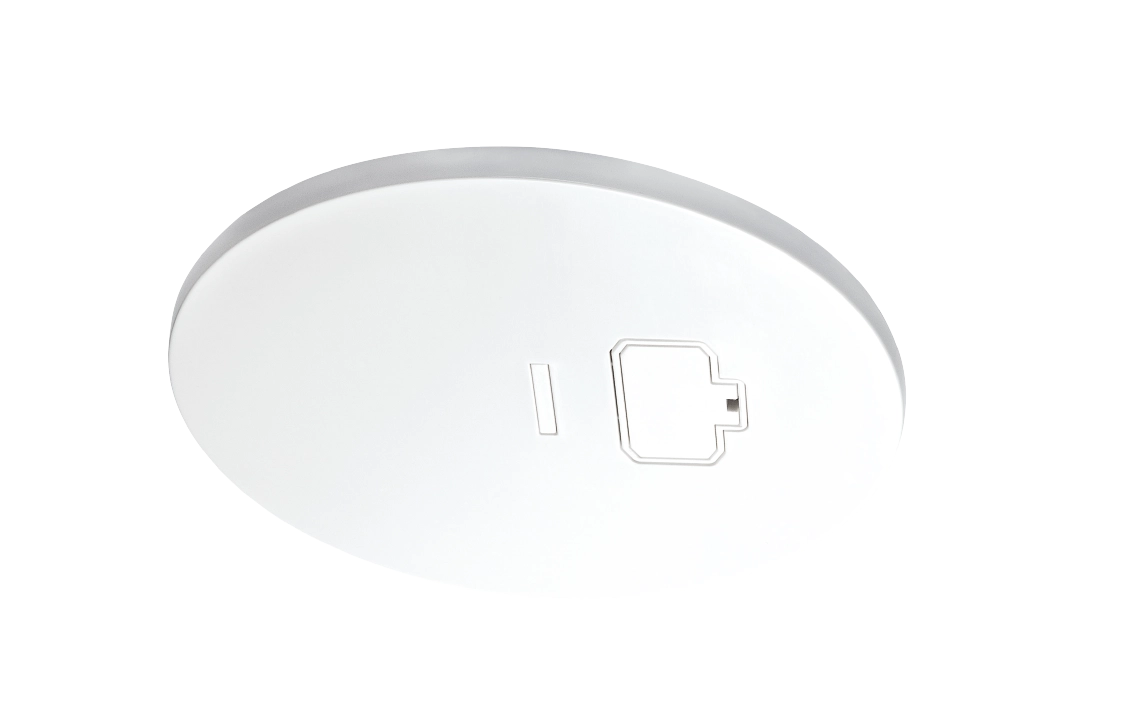

DCL Ceiling Outlet White

Article code
77580
EAN
7021987758015
Back to articlelist

Overview

IP Class
IP20
Mounting
Indoor
    5 years Warranty
  • indoor
  • ip20
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77580 Mounting instruction DCL Outlet_User Manual CE Declaration CE251013B_Ceiling Outlet NO

How to specify

Text copied to clipboard

DCL Ceiling Outlet White, Article code: 77580, EAN: 7021987758015, IP20, Electrical: Voltage: 250V, Frequency (Hz): 50/60Hz, Nominal current: 6A, Protection: IP Class: IP20, Energy and approvals: BVB: Yes, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Mounting: Indoor, Dimensions: Height (mm) H: 38, Weight (kg) gross/net: 0.138 / 0.104, Packaging: Packaging dimensions (mm): 115 x 115 x 38, Number per pack: 6

Electrical

Voltage
250V
Frequency (Hz)
50/60Hz
Nominal current
6A

Protection

IP Class
IP20

Energy and approvals

BVB
Yes

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Mounting
Indoor

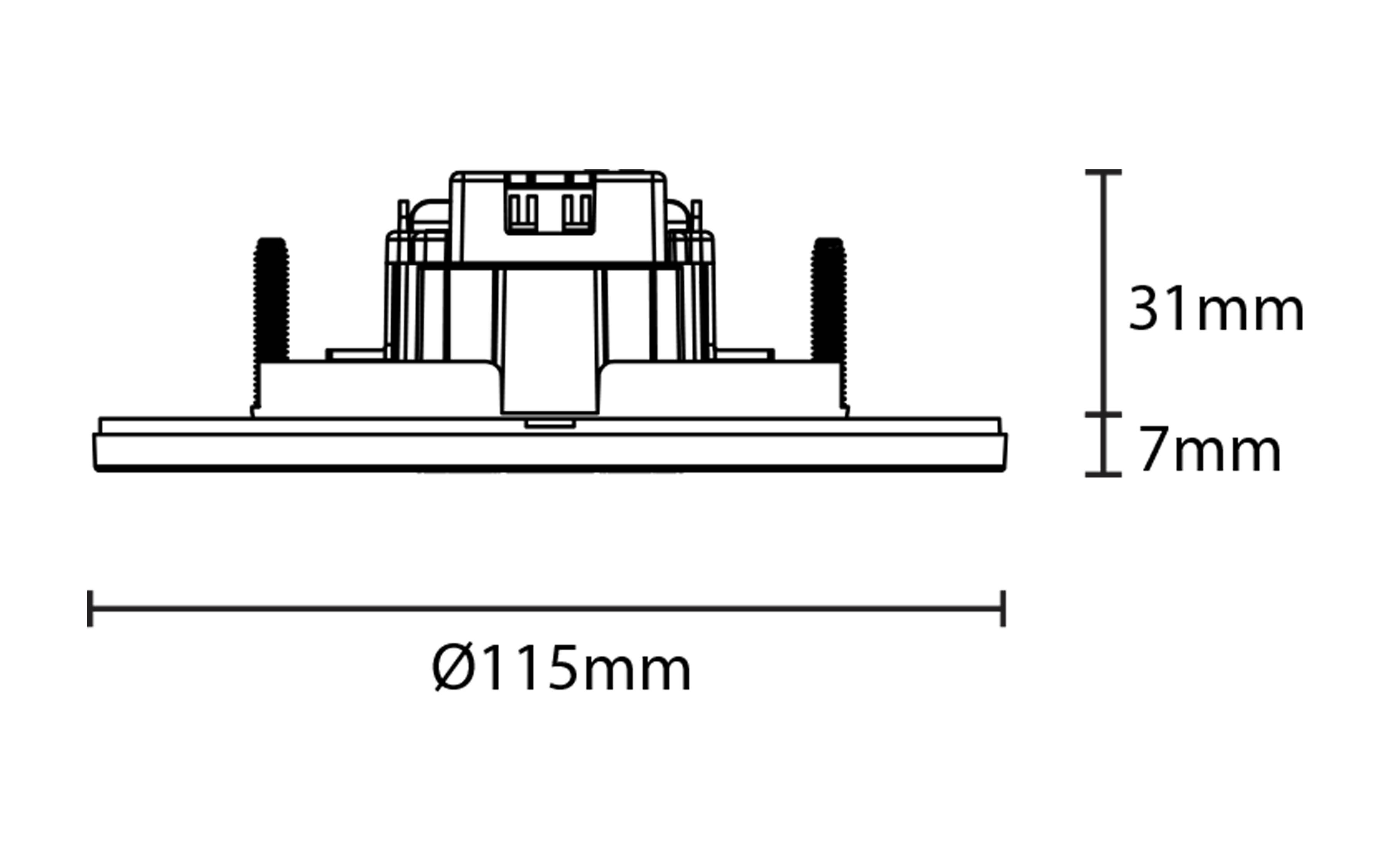

Dimensions

Height (mm) H
38
Weight (kg) gross/net
0.138 / 0.104

Packaging

Packaging dimensions (mm)
115 x 115 x 38
Number per pack
6
