Outlet, recessed

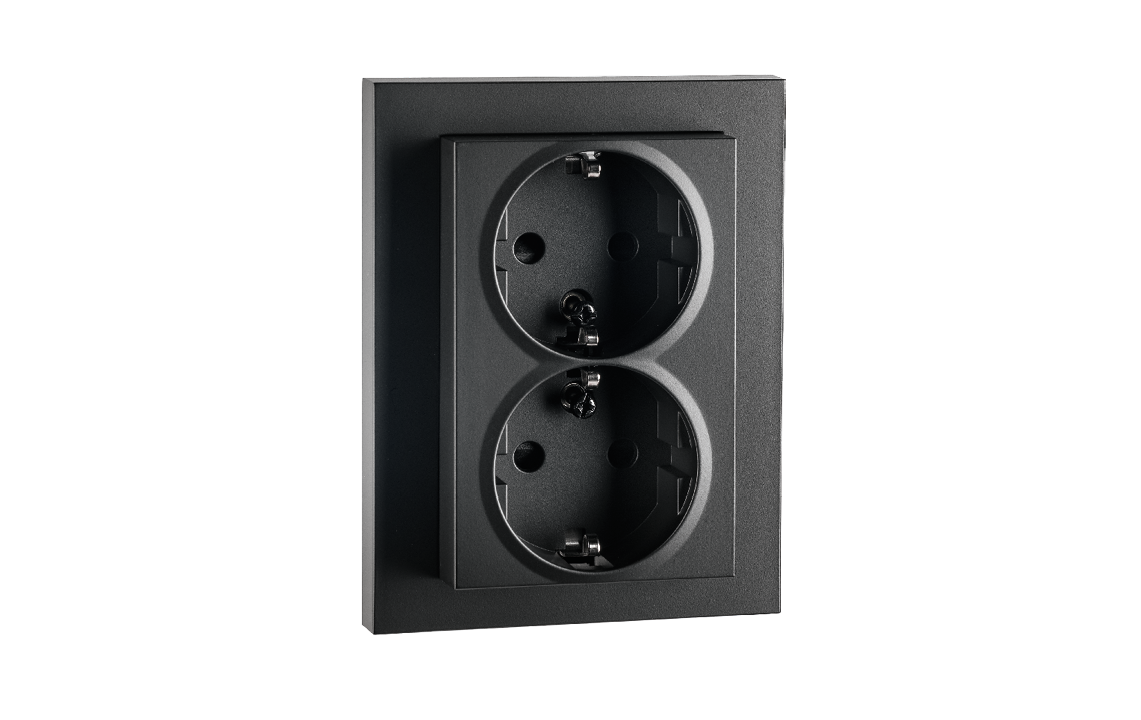

Outlet recessed Black Rehab med jord Center plate, cover plate included

Article code
77061
EAN
7021987706115
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77061 EPD NEPD-11887-11847_Outlet-Flush-Mounted-Double-Rehab Mounting instruction Outlet_User Manual

See more

CE Declaration CE251014C_Recessed schuko outlet

How to specify

Text copied to clipboard

Outlet recessed Black Rehab med jord Center plate, cover plate included, Article code: 77061, EAN: 7021987706115, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Protection: IP Class: IP21, Materials and finish: Housing: Polycarbonat (PC), Colour: Black (RAL 9004), Halogen free: Yes, Mounting/Connection: Extra blind connectors: No, Frame: included 1x1,5, Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 108, Width (mm) W: 84, Height (mm) H: 40, Weight (kg) gross/net: 0.142 / 0.114, Packaging: Packaging dimensions (mm): 108 x 84 x 40, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Protection

IP Class
IP21

Materials and finish

Housing
Polycarbonat (PC)
Colour
Black (RAL 9004)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
No
Frame
included 1x1,5
Mounting
Recessed, Indoor

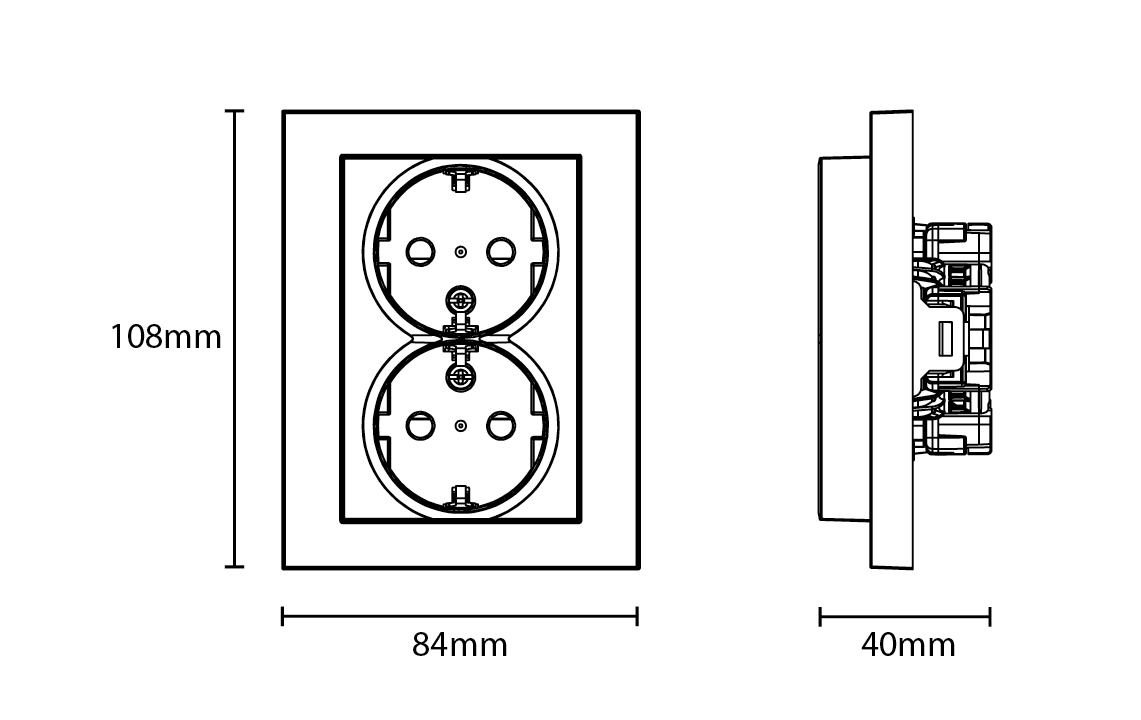

Dimensions

Length (mm) L
108
Width (mm) W
84
Height (mm) H
40
Weight (kg) gross/net
0.142 / 0.114

Packaging

Packaging dimensions (mm)
108 x 84 x 40
Number per pack
6
