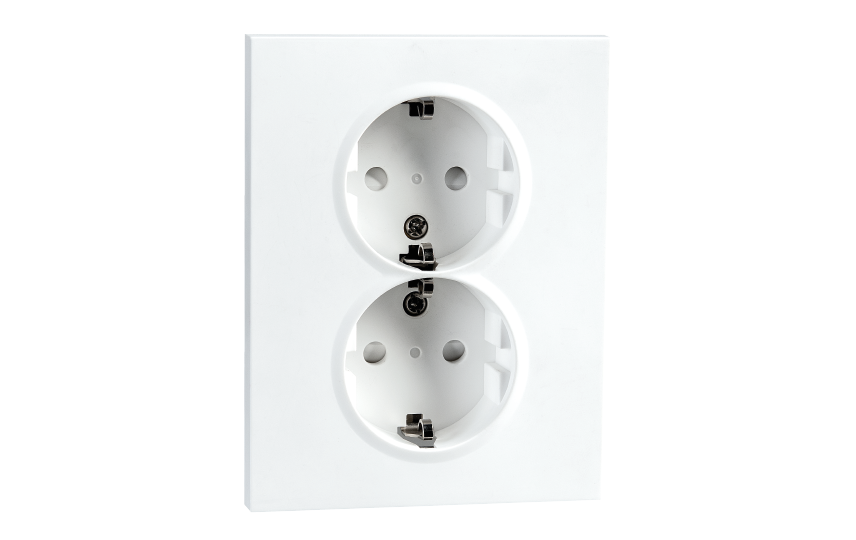

Outlet, recessed

Outlet recessed White Double Grounded 1.5 Box .

Article code
77020
EAN
7021987702018
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77020 Revit file - Generic Outlet Flush Mounted Double WEarth - generic Revit file - Face Based Outlet Flush Mounted Double WEarth 1,5 Box - face based

See more

EPD NEPD-8235-7895_Outlet-Flush-Mounted-Double Mounting instruction Outlet_User Manual CE Declaration CE251014C_Recessed schuko outlet

How to specify

Text copied to clipboard

Outlet recessed White Double Grounded 1.5 Box ., Article code: 77020, EAN: 7021987702018, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Protection: IP Class: IP21, Energy and approvals: BVB: Yes, Sunda Hus: C-, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Extra blind connectors: No, Frame: complete, Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 108, Width (mm) W: 84, Height (mm) H: 41, Weight (kg) gross/net: 0.13 / 0.111, Packaging: Packaging dimensions (mm): 108 x 84 x 41, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Protection

IP Class
IP21

Energy and approvals

BVB
Yes
Sunda Hus
C-

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
No
Frame
complete
Mounting
Recessed, Indoor

Dimensions

Length (mm) L
108
Width (mm) W
84
Height (mm) H
41
Weight (kg) gross/net
0.13 / 0.111

Packaging

Packaging dimensions (mm)
108 x 84 x 41
Number per pack
6
