Outlet, recessed

Outlet flush mounted double White w/USB-C 1,5 box

Article code
77110
EAN
7021987711010
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77110 Mounting instruction Outlet_User Manual CE Declaration CE251014C_Recessed schuko outlet

How to specify

Text copied to clipboard

Outlet flush mounted double White w/USB-C 1,5 box, Article code: 77110, EAN: 7021987711010, IP21, Electrical: System wattage: 30W, Protection: IP Class: IP21, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 108, Width (mm) W: 84, Height (mm) H: 58, Weight (kg) gross/net: 0.22 / 0.184, Packaging: Packaging dimensions (mm): 108 x 84 x 58, Number per pack: 6

Electrical

System wattage
30W

Protection

IP Class
IP21

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Mounting
Recessed, Indoor

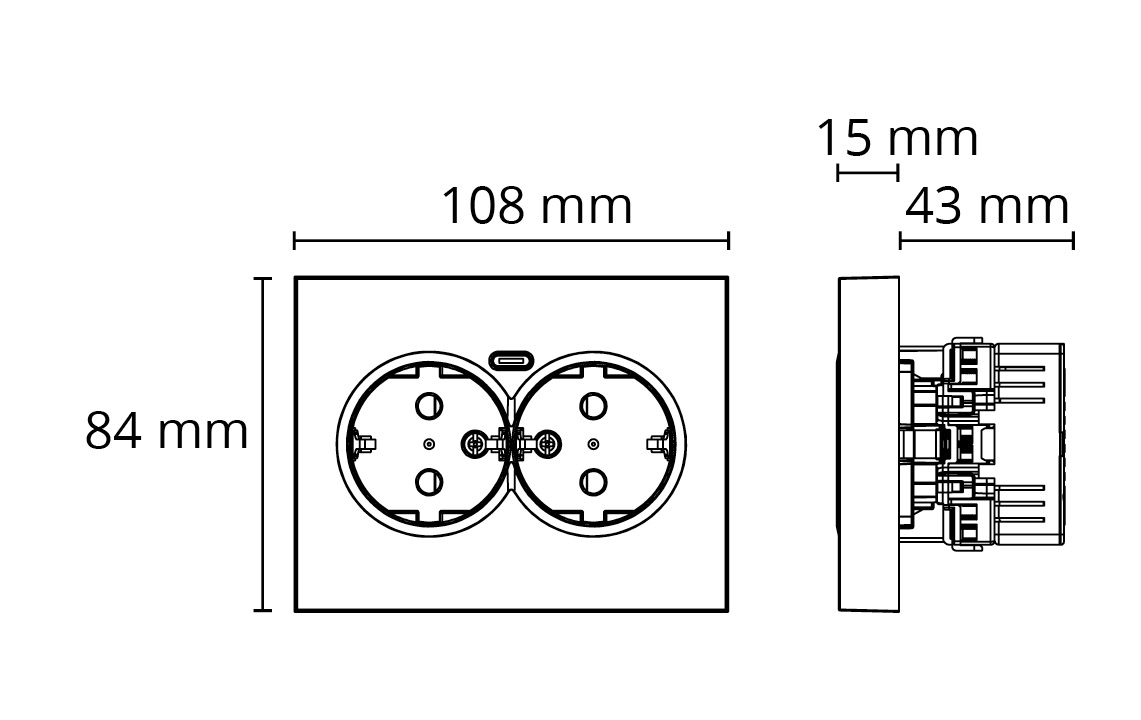

Dimensions

Length (mm) L
108
Width (mm) W
84
Height (mm) H
58
Weight (kg) gross/net
0.22 / 0.184

Packaging

Packaging dimensions (mm)
108 x 84 x 58
Number per pack
6
