Outlet, recessed

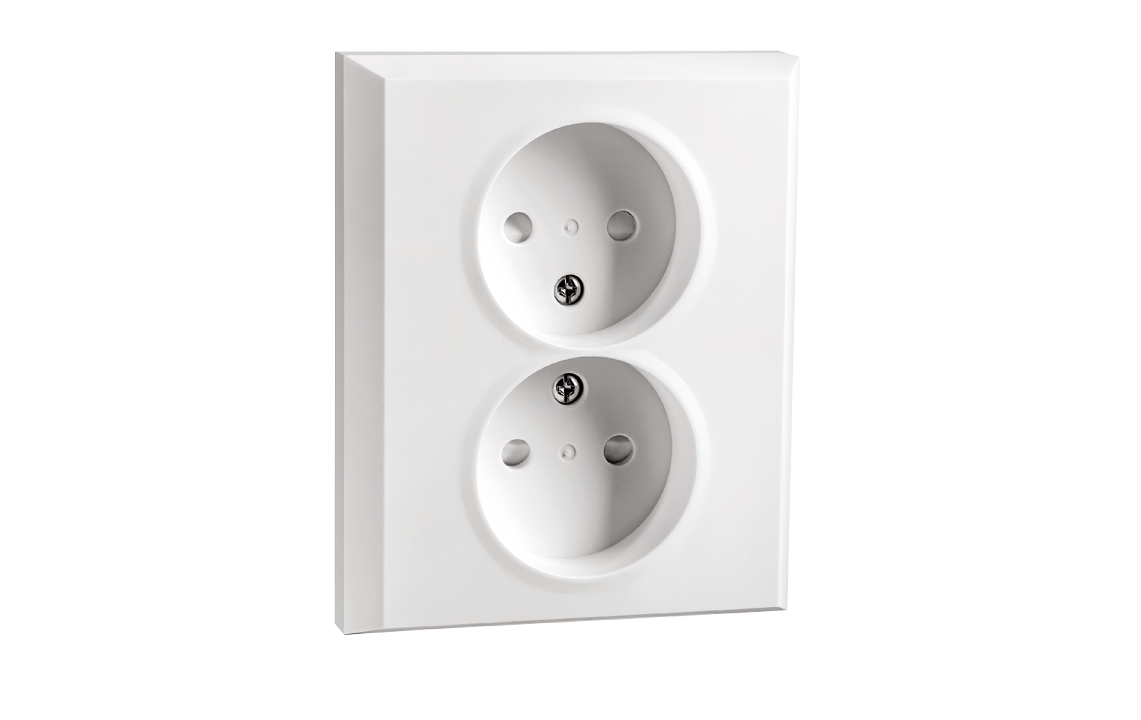

Outlet recessed White Double ungrounded

Article code
77100
EAN
7021987710013
Back to articlelist

Overview

IP Class
IP20
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77100 Mounting instruction Outlet without earth_User Manual CE Declaration CE251014C_Recessed schuko outlet

How to specify

Text copied to clipboard

Outlet recessed White Double ungrounded, Article code: 77100, EAN: 7021987710013, IP20, Electrical: Voltage: 250V, Frequency (Hz): 50/60Hz, Protection: Luminaire class: Class II, IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 103, Width (mm) W: 84, Height (mm) H: 37, Weight (kg) gross/net: 0.1 / 0.096, Packaging: Packaging dimensions (mm): 103 x 84 x 37, Number per pack: 6

Electrical

Voltage
250V
Frequency (Hz)
50/60Hz

Protection

Luminaire class
Class II
IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Mounting
Recessed, Indoor

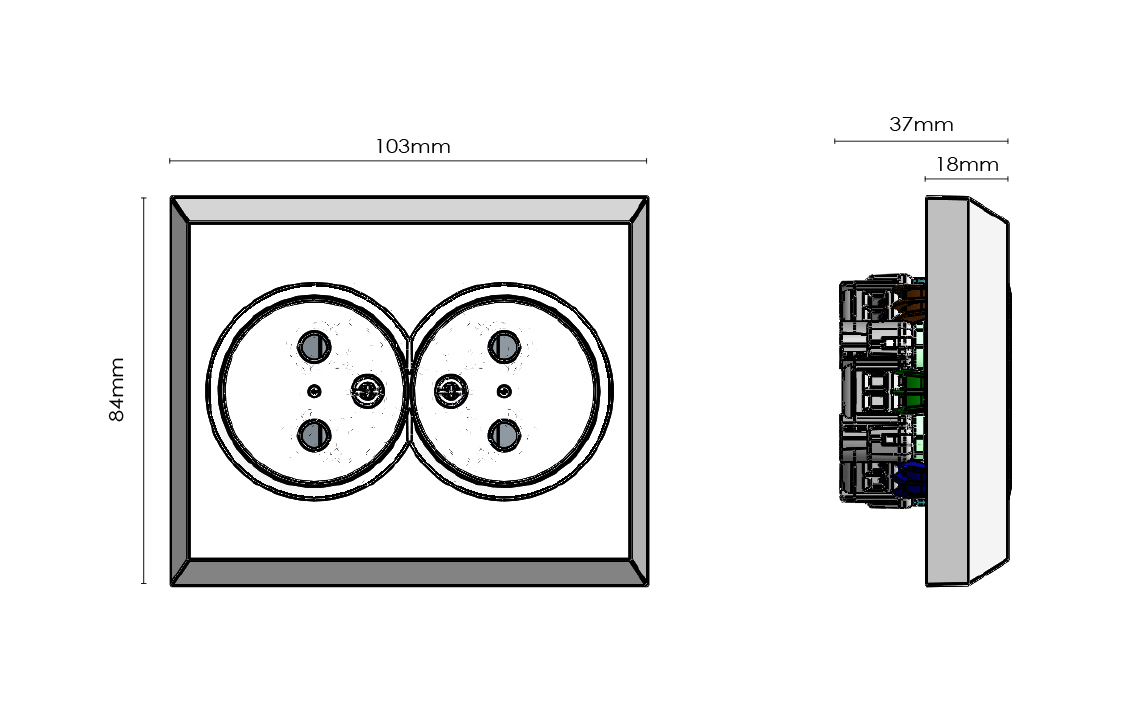

Dimensions

Length (mm) L
103
Width (mm) W
84
Height (mm) H
37
Weight (kg) gross/net
0.1 / 0.096

Packaging

Packaging dimensions (mm)
103 x 84 x 37
Number per pack
6
