Outlet, recessed

Outlet recessed White Euro 3-way .

Article code
77030
EAN
7021987703015
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77030 Mounting instruction Outlet_User Manual EPD NEPD-8200-7868_Outlet-Flush-Mounted-Single-w-Earth CE Declaration CE251014C_Recessed schuko outlet Revit file - Generic Euro 3x Outlet recessed - generic Revit file - Face Based Euro 3x Outlet recessed - face based

How to specify

Text copied to clipboard

Outlet recessed White Euro 3-way ., Article code: 77030, EAN: 7021987703015, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Protection: IP Class: IP21, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Extra blind connectors: two 2x2,5 mm², Frame: included 1x1, Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 39, Weight (kg) gross/net: 0.105 / 0.09, Packaging: Packaging dimensions (mm): 84 x 84 x 39, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Protection

IP Class
IP21

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
two 2x2,5 mm²
Frame
included 1x1
Mounting
Recessed, Indoor

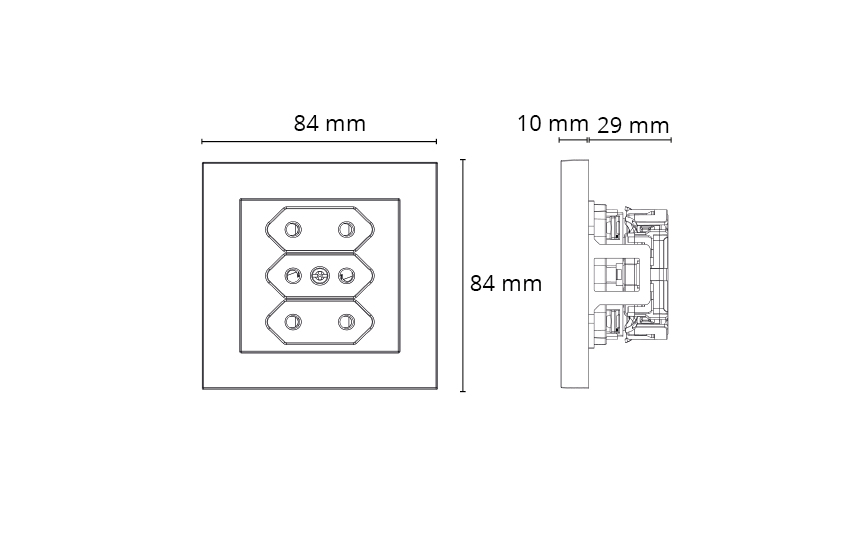

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
39
Weight (kg) gross/net
0.105 / 0.09

Packaging

Packaging dimensions (mm)
84 x 84 x 39
Number per pack
6
