Outlet, recessed

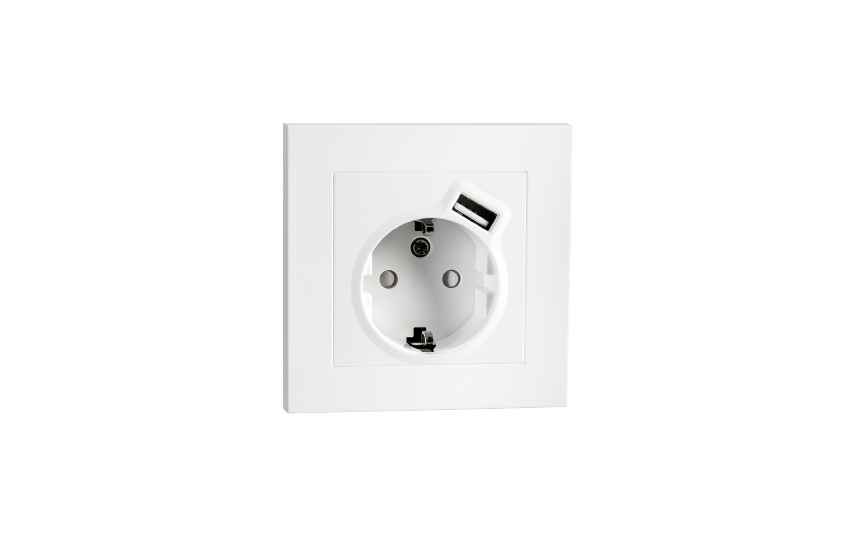

Outlet recessed White Single Grounded + USB-A Charging Unit 2,4A

Article code
77050
EAN
7021987705019
Back to articlelist

Overview

Mounting
Recessed, Indoor
  • indoor

Tools

Downloads

Specification sheet 77050 Mounting instruction USB A+C_User Manual EPD NEPD-8235-7895_Outlet-Flush-Mounted-Double

See more

CE Declaration CE251014C_Recessed schuko outlet

How to specify

Text copied to clipboard

Outlet recessed White Single Grounded + USB-A Charging Unit 2,4A, Article code: 77050, EAN: 7021987705019, Electrical: Voltage: 250V, Nominal current: 16A, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Extra blind connectors: No, Frame: included 1x1, Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 45, Weight (kg) gross/net: 0.134 / 0.11, Packaging: Packaging dimensions (mm): 84 x 84 x 45, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
No
Frame
included 1x1
Mounting
Recessed, Indoor

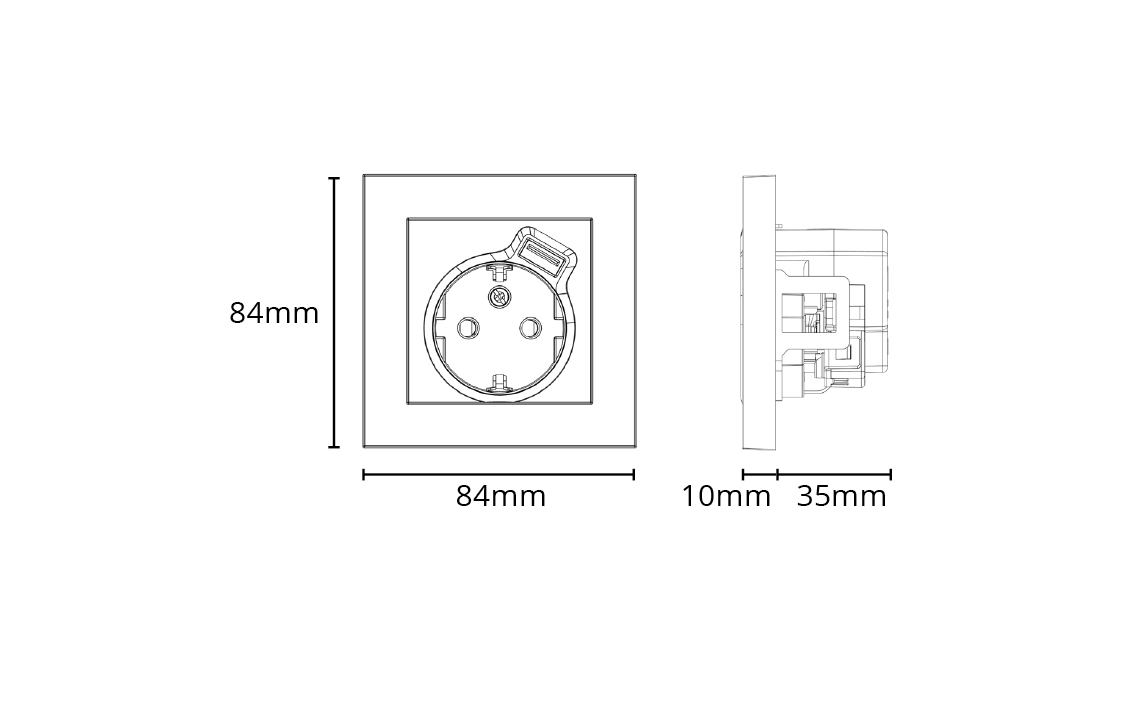

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
45
Weight (kg) gross/net
0.134 / 0.11

Packaging

Packaging dimensions (mm)
84 x 84 x 45
Number per pack
6
