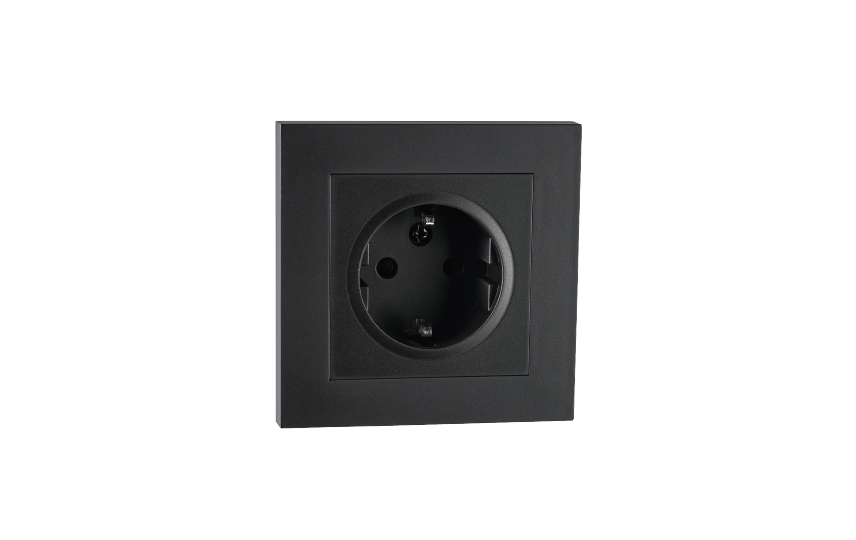

Outlet, recessed

Outlet recessed Black Single Grounded .

Article code
77001
EAN
7021987700113
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77001 Mounting instruction Outlet_User Manual EPD NEPD-8200-7868_Outlet-Flush-Mounted-Single-w-Earth CE Declaration CE251014C_Recessed schuko outlet Revit file - Generic Outlet Flush Mounted Single - generic Revit file - Face Based Outlet Flush Mounted Single - face based

How to specify

Text copied to clipboard

Outlet recessed Black Single Grounded ., Article code: 77001, EAN: 7021987700113, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Protection: IP Class: IP21, Energy and approvals: BVB: Yes, Materials and finish: Housing: Polycarbonat (PC), Colour: Black (RAL 9004), Halogen free: Yes, Mounting/Connection: Extra blind connectors: No, Frame: included 1x1, Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 39, Weight (kg) gross/net: 0.099 / 0.083, Packaging: Packaging dimensions (mm): 84 x 84 x 39, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Protection

IP Class
IP21

Energy and approvals

BVB
Yes

Materials and finish

Housing
Polycarbonat (PC)
Colour
Black (RAL 9004)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
No
Frame
included 1x1
Mounting
Recessed, Indoor

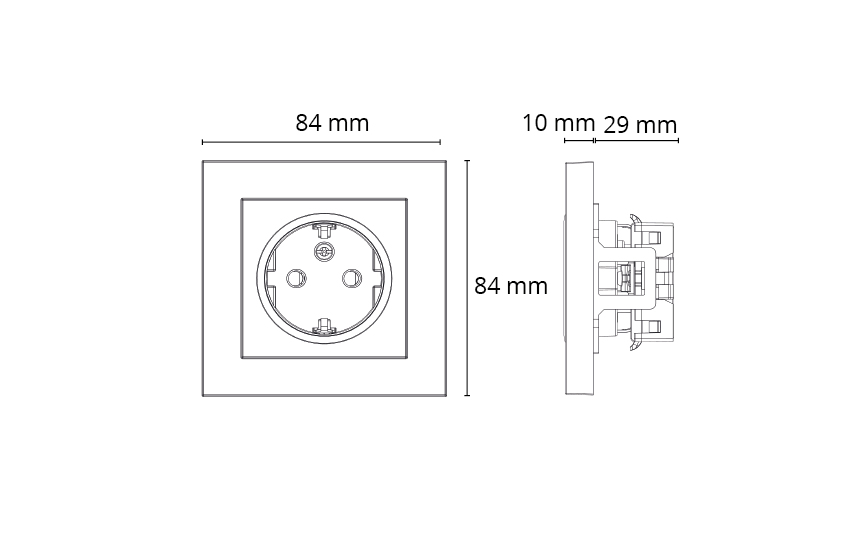

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
39
Weight (kg) gross/net
0.099 / 0.083

Packaging

Packaging dimensions (mm)
84 x 84 x 39
Number per pack
6
