Outlet, surface

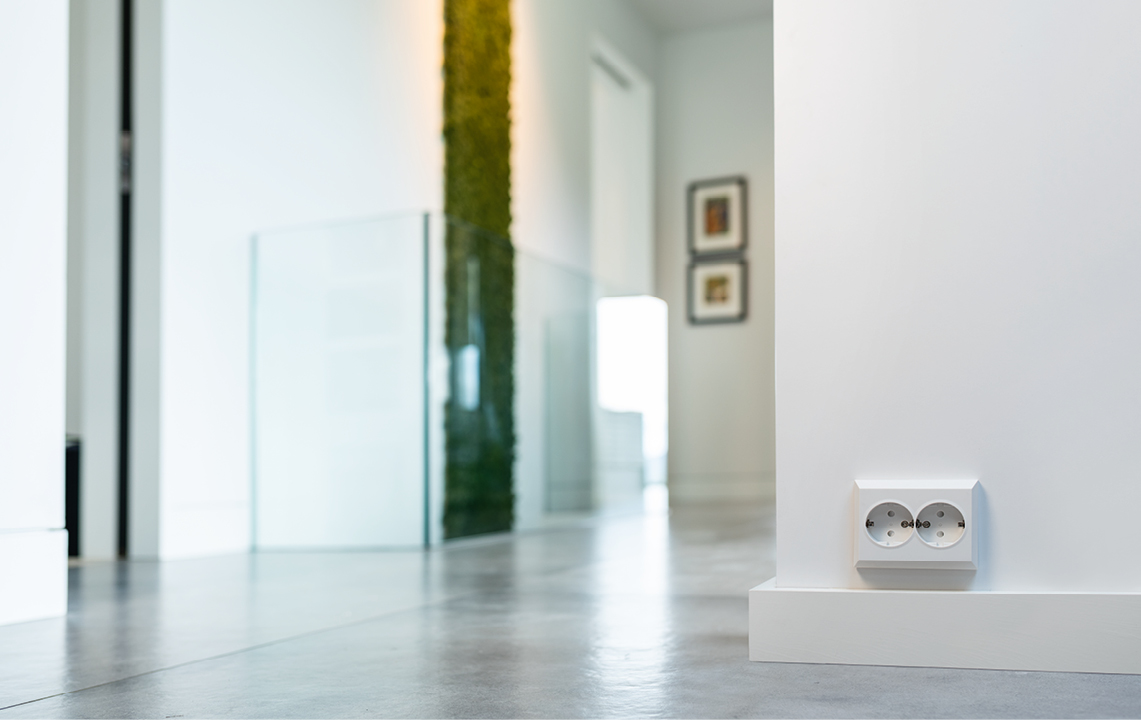

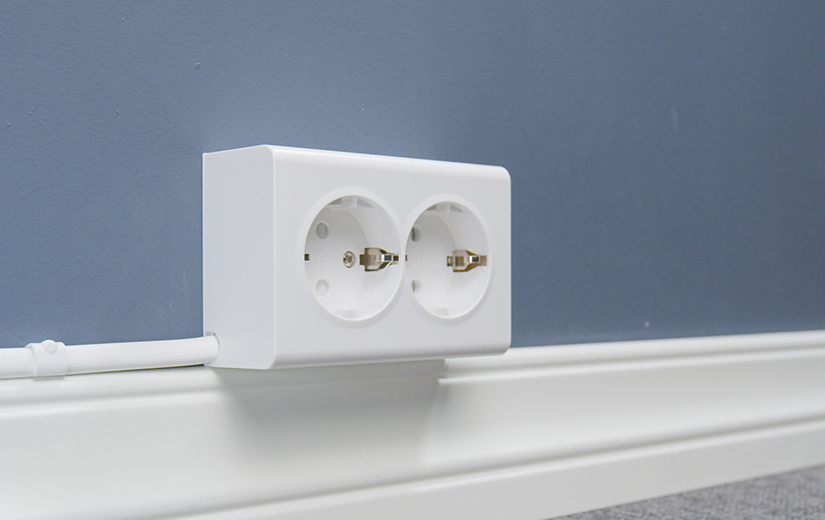

Range of outlets with a modern design. The straight sides of this outlet make it easy to fit into mouldings and other flat surfaces. Available in single, double, 4-way, and 4+6 configurations The double outlets are also available not grounded. The recess is made using a Nibbler for a proper fitting to the cable.

Article list

Outlet, surface

Class II Indoor

Filters

Color

Version

IP Class

					Tools
77501	IP21	Surface	Single Grounded	L63 x W71 x H43	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
77511	IP21	Surface	Double Grounded	L104 x W71 x H43	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
77521	IP21	Surface	4-way Grounded	L115 x W104 x H44	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
77523	IP21	Surface	4-way without Earth	L115 x W104 x H40	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
77531	IP21	Surface	4+6 Euro Grounded	L176 x W115 x H44	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
77601	IP20	Surface	Double ungrounded	L104 x W71 x H39	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
77500	IP21	Surface	Single Grounded	L63 x W71 x H43	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
77510	IP21	Surface	Double Grounded	L104 x W71 x H43	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
77520	IP21	Surface	4-way Grounded	L115 x W104 x H44	Info Mounting instruction (PDF) (Opens in new tab) EPD Info Mounting instruction (PDF) (Opens in new tab) EPD
77522	IP21	Surface	4-way without Earth	L115 x W104 x H40	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
77530	IP21	Surface	4+6 Euro Grounded	L176 x W115 x H44	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
77560	IP20		25A (Female) Grounded	L143 x W90 x H37	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
77600	IP20	Surface	Double ungrounded	L104 x W71 x H39	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
