Outlet, surface

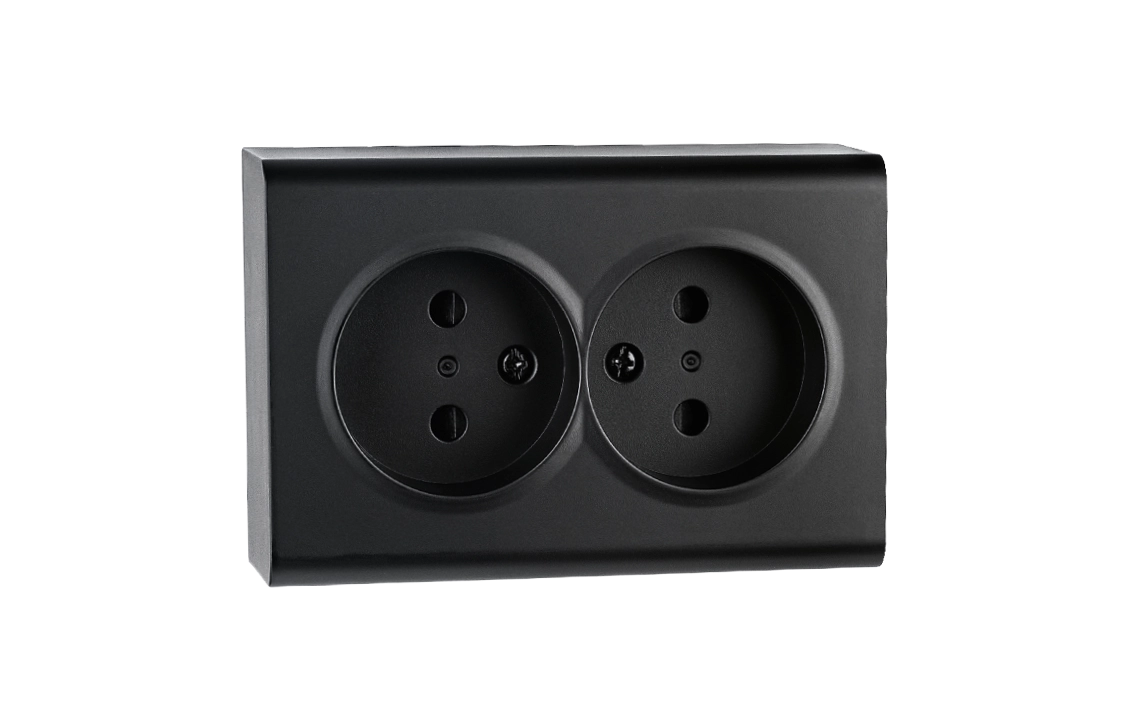

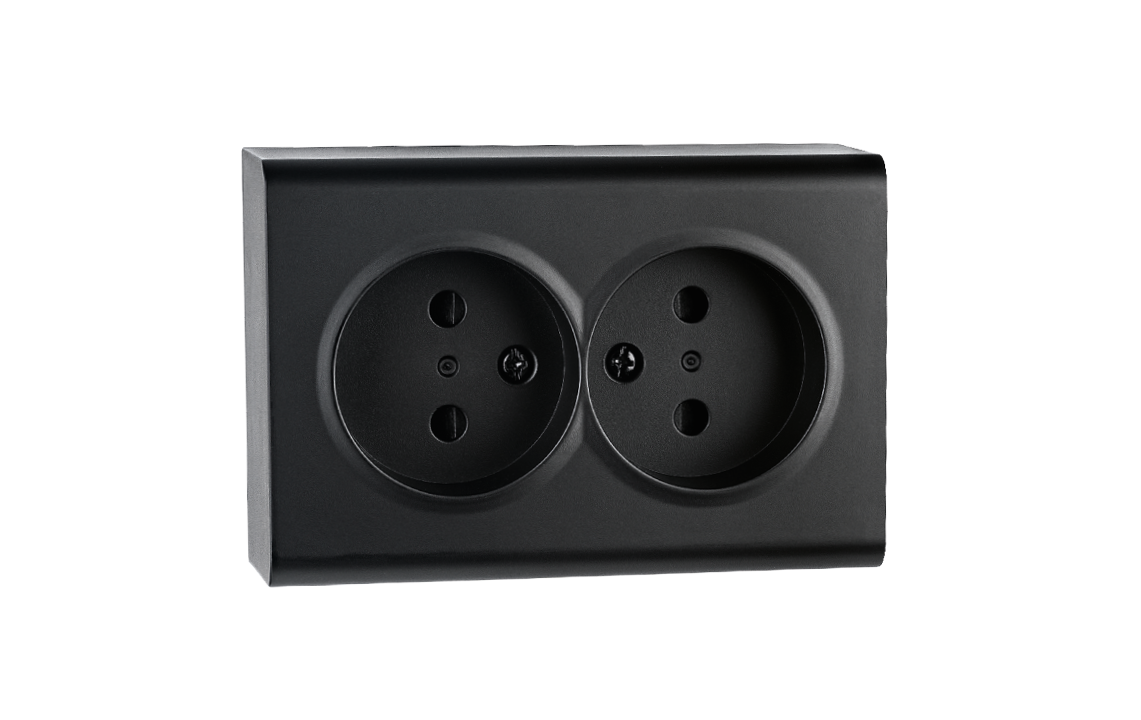

Outlet surface Black Double ungrounded

Article code
77601
EAN
7021987760117
Back to articlelist

Overview

IP Class
IP20
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_2
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77601 Mounting instruction Outlet without earth_User Manual EPD NEPD-8235-7895_Outlet-Flush-Mounted-Double

How to specify

Text copied to clipboard

Outlet surface Black Double ungrounded, Article code: 77601, EAN: 7021987760117, IP20, Electrical: Voltage: 250V, Frequency (Hz): 50/60Hz, Protection: Luminaire class: Class II, IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Colour: Black (RAL 9004), Halogen free: Yes, Mounting/Connection: Mounting: Surface, Indoor, Dimensions: Length (mm) L: 104, Width (mm) W: 71, Height (mm) H: 39, Weight (kg) gross/net: 0.1 / 0.098, Packaging: Packaging dimensions (mm): 104 x 71 x 39, Number per pack: 6

Electrical

Voltage
250V
Frequency (Hz)
50/60Hz

Protection

Luminaire class
Class II
IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)
Colour
Black (RAL 9004)
Halogen free
Yes

Mounting/Connection

Mounting
Surface, Indoor

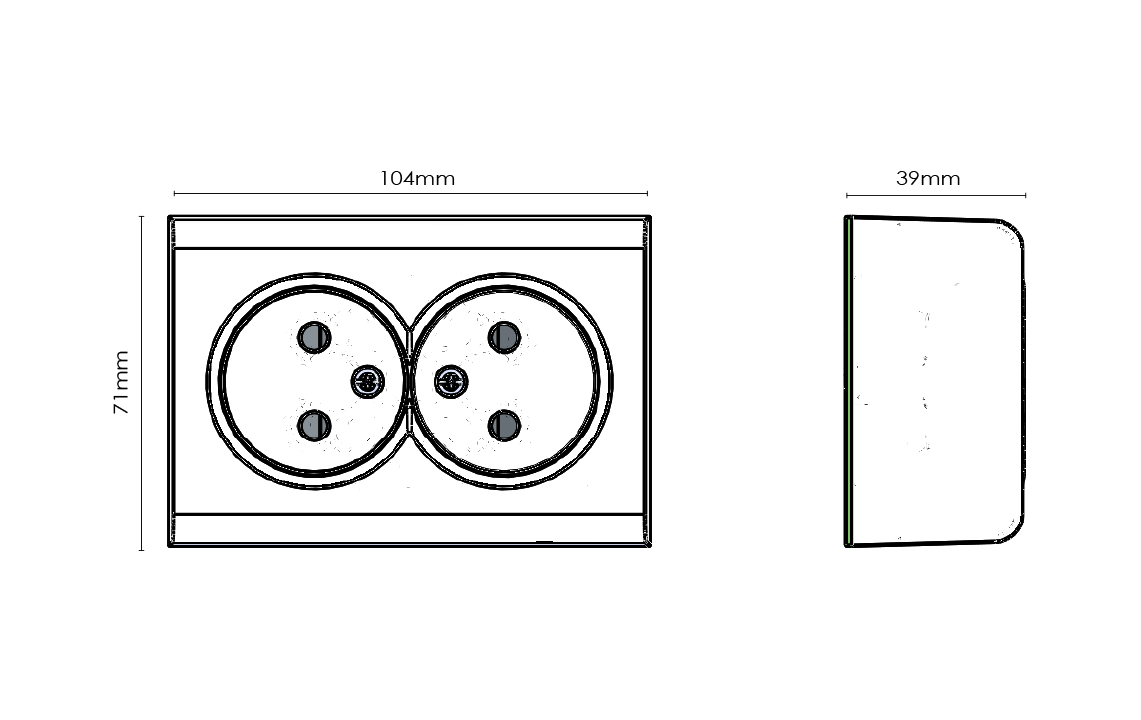

Dimensions

Length (mm) L
104
Width (mm) W
71
Height (mm) H
39
Weight (kg) gross/net
0.1 / 0.098

Packaging

Packaging dimensions (mm)
104 x 71 x 39
Number per pack
6
