Outlet, surface

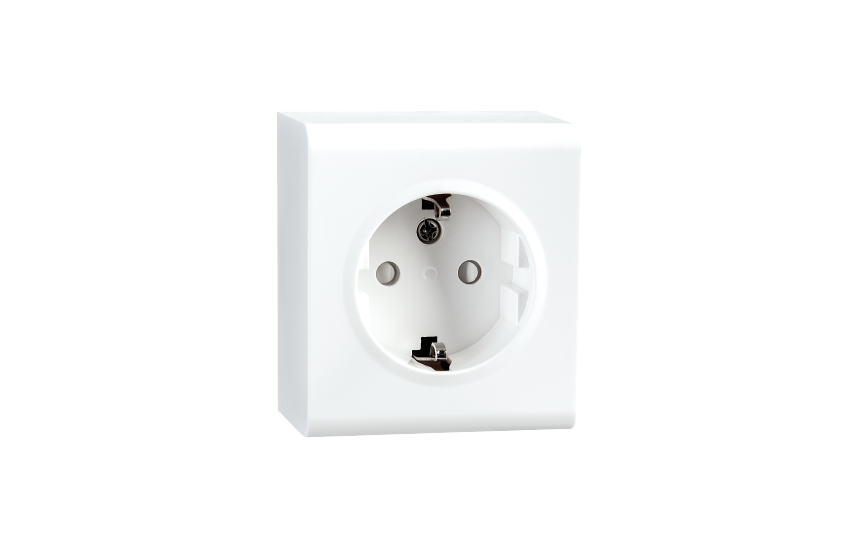

Outlet surface White Single Grounded

Article code
77500
EAN
7021987750019
Back to articlelist

Overview

IP Class
IP21
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip21
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77500 Mounting instruction Outlet_User Manual EPD NEPD-8200-7868_Outlet-Flush-Mounted-Single-w-Earth CE Declaration CE251015A_Surface schuko outlet Revit file - Generic Single Outles Suface Mounted - generic Revit file - Face Based Single Outles Suface Mounted - face based

How to specify

Text copied to clipboard

Outlet surface White Single Grounded, Article code: 77500, EAN: 7021987750019, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Protection: IP Class: IP21, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Extra blind connectors: No, Frame: complete, Mounting: Surface, Indoor, Dimensions: Length (mm) L: 63, Width (mm) W: 71, Height (mm) H: 43, Weight (kg) gross/net: 0.082 / 0.07, Packaging: Packaging dimensions (mm): 63 x 71 x 43, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Protection

IP Class
IP21

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
No
Frame
complete
Mounting
Surface, Indoor

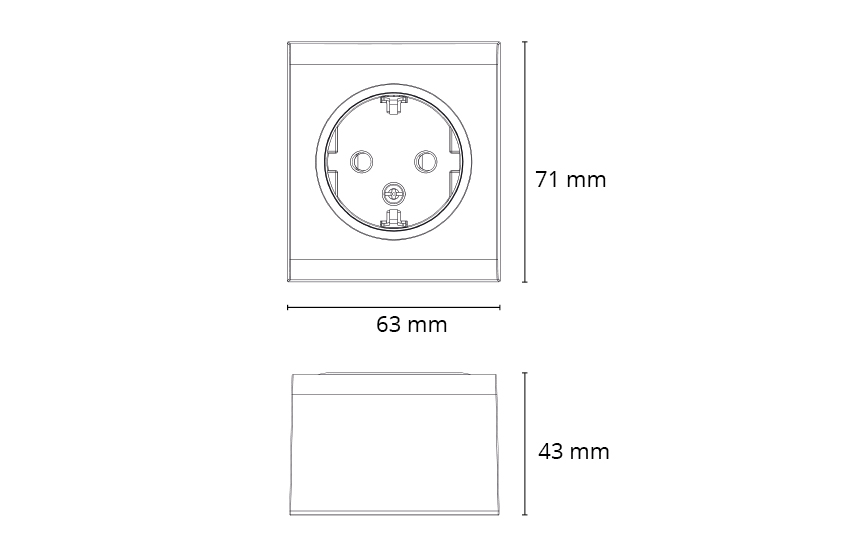

Dimensions

Length (mm) L
63
Width (mm) W
71
Height (mm) H
43
Weight (kg) gross/net
0.082 / 0.07

Packaging

Packaging dimensions (mm)
63 x 71 x 43
Number per pack
6
