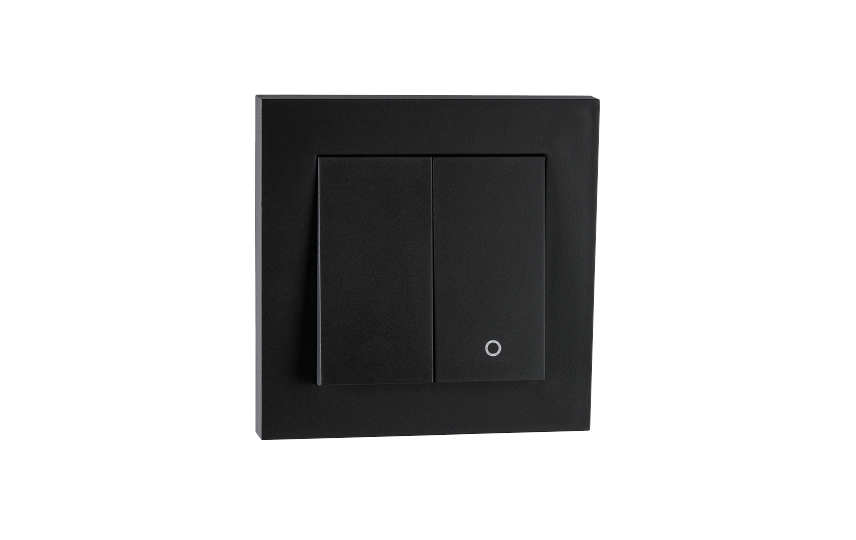

Switch, recessed

Switch recessed Black 2+1 no additional connectors, cover plate included

Article code
76061
EAN
7021987606118
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 76061 Revit file - Generic Switch Flush Mounted 2+1 - generic Revit file - Face Based Switch Flush Mounted 2+1 - face based

See more

EPD NEPD-7744-7122_Switch Mounting instruction Switch_User Manual

How to specify

Text copied to clipboard

Switch recessed Black 2+1 no additional connectors, cover plate included, Article code: 76061, EAN: 7021987606118, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Switching current for fluorescent lamps: 10A, Protection: IP Class: IP21, Energy and approvals: BVB: Yes, Materials and finish: Housing: Polycarbonat (PC), Colour: Black (RAL 9004), Halogen free: Yes, Mounting/Connection: Extra blind connectors: One 2x2,5 mm2, Frame: included 1x1, Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 24, Weight (kg) gross/net: 0.097 / 0.083, Packaging: Packaging dimensions (mm): 84 x 84 x 24, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A
Switching current for fluorescent lamps
10A

Protection

IP Class
IP21

Energy and approvals

BVB
Yes

Materials and finish

Housing
Polycarbonat (PC)
Colour
Black (RAL 9004)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
One 2x2,5 mm2
Frame
included 1x1
Mounting
Recessed, Indoor

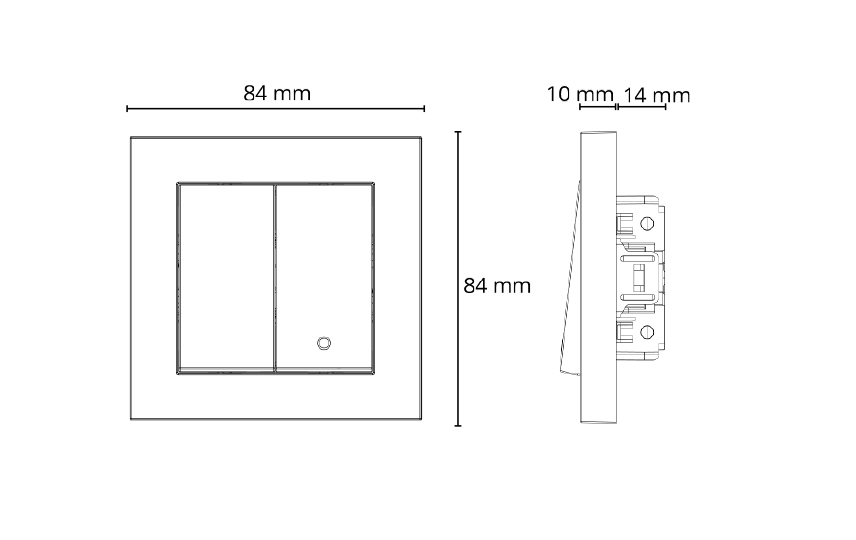

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
24
Weight (kg) gross/net
0.097 / 0.083

Packaging

Packaging dimensions (mm)
84 x 84 x 24
Number per pack
6
