Switch, recessed

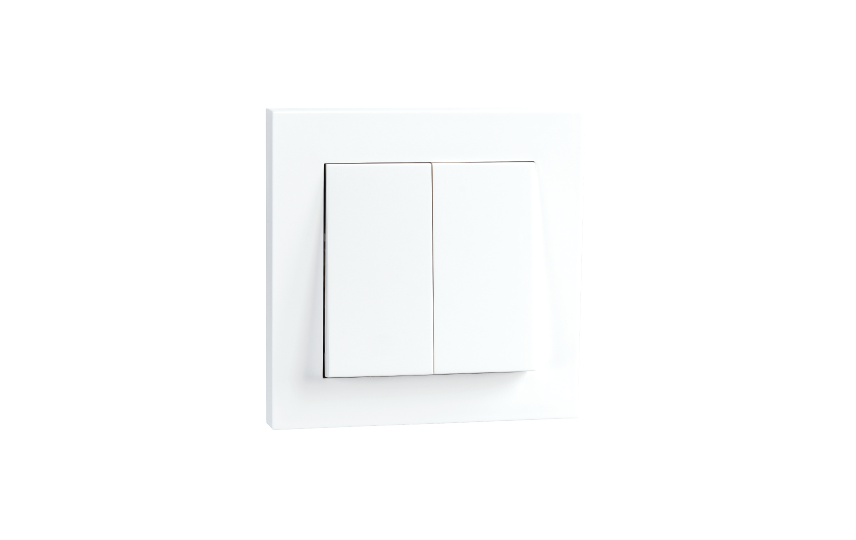

Switch recessed White Double Changeover

Article code
76100
EAN
7021987610016
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 76100 EPD NEPD-7744-7122_Switch Mounting instruction Switch_User Manual

How to specify

Text copied to clipboard

Switch recessed White Double Changeover, Article code: 76100, EAN: 7021987610016, IP21, Electrical: Voltage: 250V, Frequency (Hz): 50/60Hz, Protection: IP Class: IP21, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 24, Weight (kg) gross/net: 0.083 / 0.082, Packaging: Packaging dimensions (mm): 84 x 84 x 24, Number per pack: 6

Electrical

Voltage
250V
Frequency (Hz)
50/60Hz

Protection

IP Class
IP21

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Mounting
Recessed, Indoor

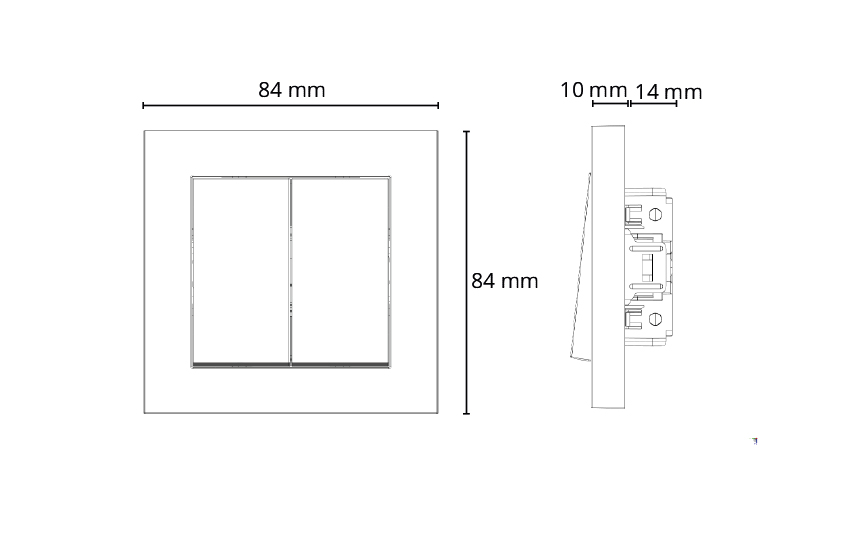

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
24
Weight (kg) gross/net
0.083 / 0.082

Packaging

Packaging dimensions (mm)
84 x 84 x 24
Number per pack
6
