Switch, recessed

Switch recessed White Intermediate .

Article code
76030
EAN
7021987603018
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 76030 Mounting instruction Switch_User Manual EPD NEPD-7744-7122_Switch CE Declaration CE251021A_Recessed switches NO Revit file - Generic Switch Flush Mounted Intermediate Switch - generic Revit file - Face Based Switch Flush Mounted Intermediate Switch - face based

How to specify

Text copied to clipboard

Switch recessed White Intermediate ., Article code: 76030, EAN: 7021987603018, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Switching current for fluorescent lamps: 10A, Protection: IP Class: IP21, Energy and approvals: BVB: Yes, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Extra blind connectors: two 2x2,5 mm², Frame: included 1x1, Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 24, Weight (kg) gross/net: 0.097 / 0.083, Packaging: Packaging dimensions (mm): 84 x 84 x 24, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A
Switching current for fluorescent lamps
10A

Protection

IP Class
IP21

Energy and approvals

BVB
Yes

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
two 2x2,5 mm²
Frame
included 1x1
Mounting
Recessed, Indoor

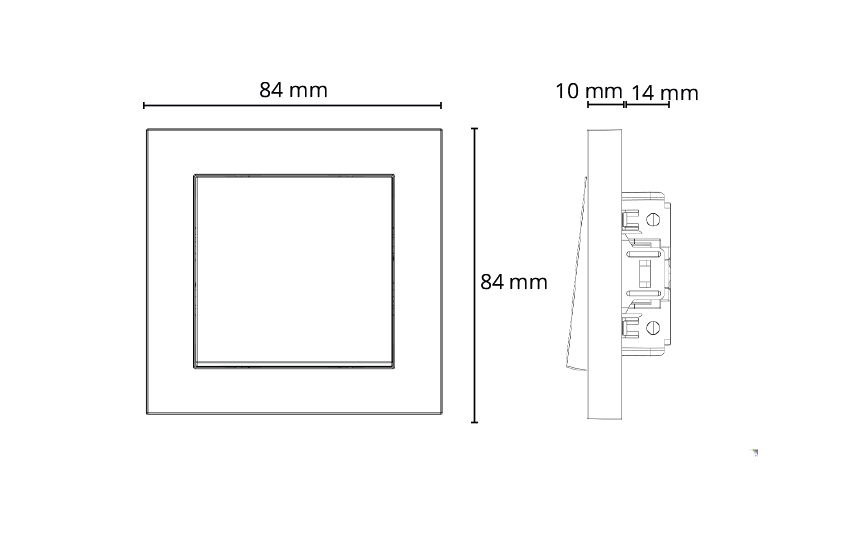

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
24
Weight (kg) gross/net
0.097 / 0.083

Packaging

Packaging dimensions (mm)
84 x 84 x 24
Number per pack
6
