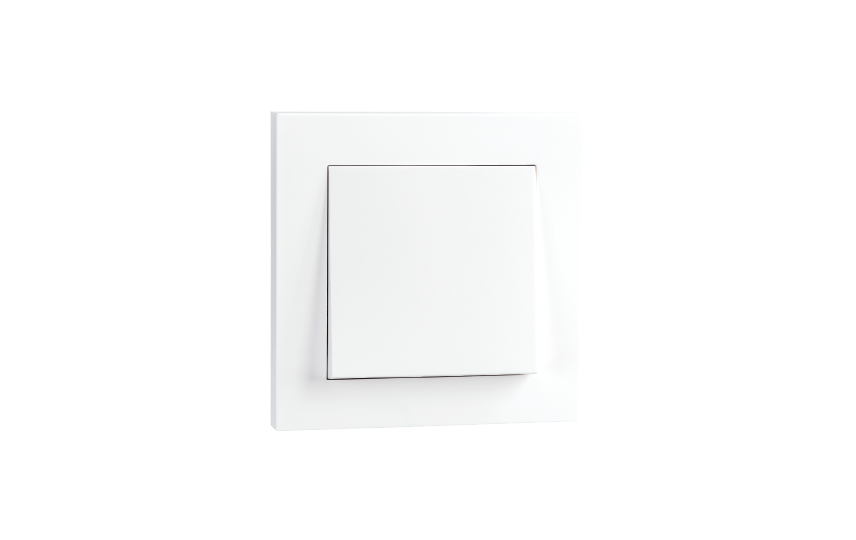

Switch, recessed

Switch recessed White Changeover 2 additional connectors, cover plate included

Article code
76020
EAN
7021987602011
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 76020 Revit file - Generic Switch Flush Mounted Two Way Switch - generic Revit file - Face Based Switch Flush Mounted Two Way Switch - face based

See more

EPD NEPD-7744-7122_Switch Mounting instruction Switch_User Manual

How to specify

Text copied to clipboard

Switch recessed White Changeover 2 additional connectors, cover plate included, Article code: 76020, EAN: 7021987602011, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Switching current for fluorescent lamps: 10A, Protection: IP Class: IP21, Energy and approvals: BVB: Yes, Sunda Hus: C-, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Extra blind connectors: two 2x2,5 mm2, Frame: included 1x1, Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 24, Weight (kg) gross/net: 0.094 / 0.08, Packaging: Packaging dimensions (mm): 84 x 84 x 24, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A
Switching current for fluorescent lamps
10A

Protection

IP Class
IP21

Energy and approvals

BVB
Yes
Sunda Hus
C-

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
two 2x2,5 mm2
Frame
included 1x1
Mounting
Recessed, Indoor

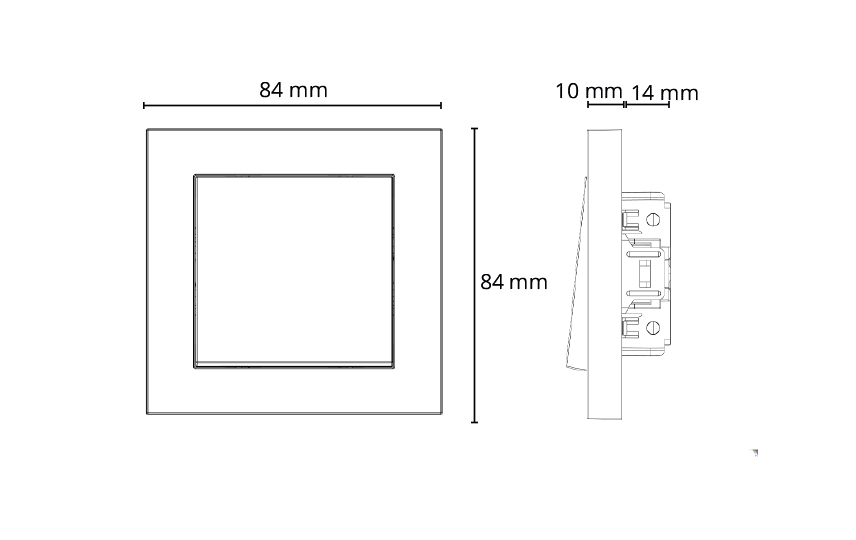

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
24
Weight (kg) gross/net
0.094 / 0.08

Packaging

Packaging dimensions (mm)
84 x 84 x 24
Number per pack
6
