Switch, recessed

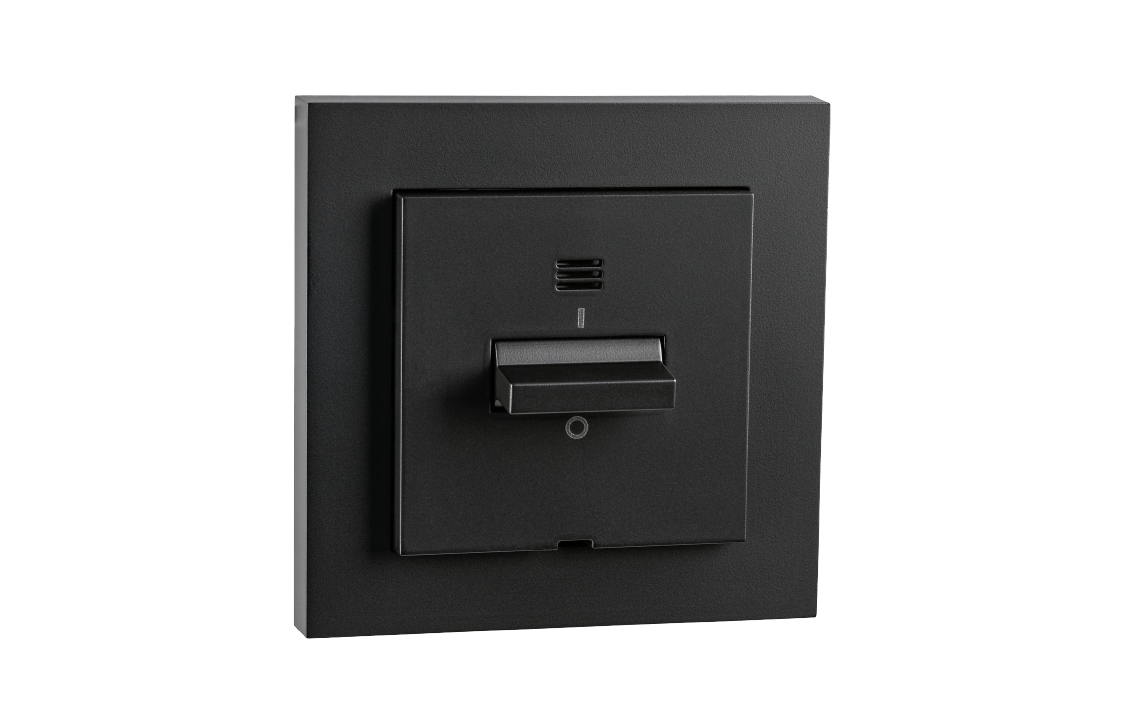

Switch recessed 2-pole Black w/light

Article code
76121
EAN
7021987612119
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip21
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 76121 Mounting instruction Switch with light_User Manual EPD NEPD-7744-7122_Switch

How to specify

Text copied to clipboard

Switch recessed 2-pole Black w/light, Article code: 76121, EAN: 7021987612119, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Switching current for fluorescent lamps: 10A, Protection: IP Class: IP21, Materials and finish: Housing: Polycarbonat (PC), Colour: Black (RAL 9004), Halogen free: Yes, Mounting/Connection: Mounting: Recessed, Indoor, Module: 2-pole, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 39, Weight (kg) gross/net: 0.107 / 0.085, Packaging: Packaging dimensions (mm): 84 x 84 x 39, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A
Switching current for fluorescent lamps
10A

Protection

IP Class
IP21

Materials and finish

Housing
Polycarbonat (PC)
Colour
Black (RAL 9004)
Halogen free
Yes

Mounting/Connection

Mounting
Recessed, Indoor
Module
2-pole

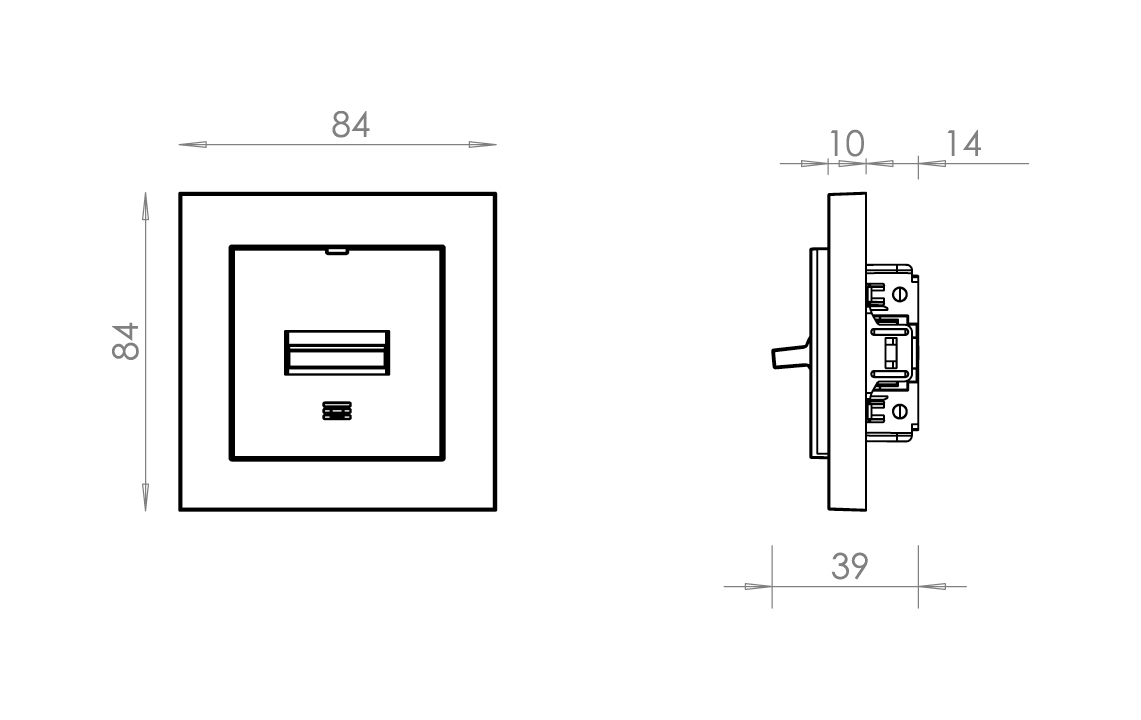

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
39
Weight (kg) gross/net
0.107 / 0.085

Packaging

Packaging dimensions (mm)
84 x 84 x 39
Number per pack
6
