LEDDim DIN

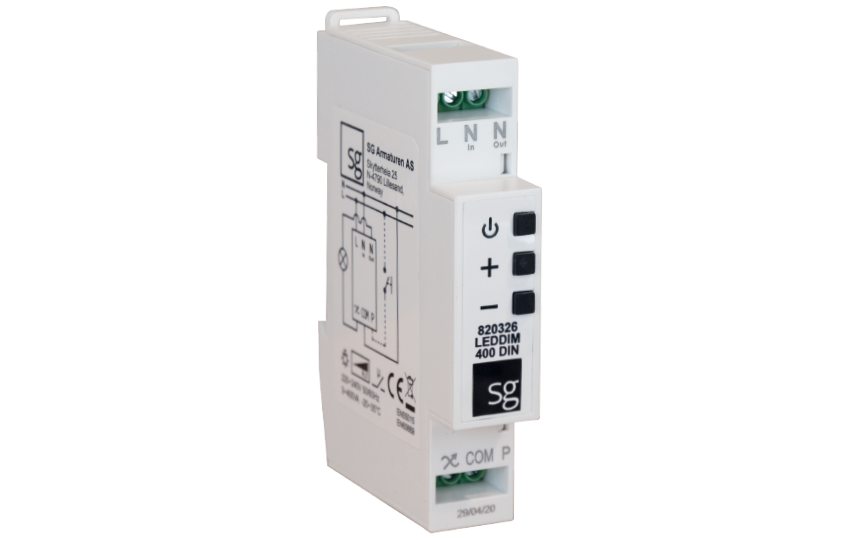

LEDDim DIN 2-pole 400VA

Article code
820326
EAN
7021988203262
Back to articlelist

Overview

Wattage
400VA
IP Class
IP20
Mounting
DIN rail, Indoor
    5 years Warranty
  • indoor
  • ip20
  • ce

Tools

Downloads

Specification sheet 820326 Mounting instruction LEDDim 400 DIN_User Manual CE Declaration LEDDim DIN

How to specify

Text copied to clipboard

LEDDim DIN 2-pole 400VA, Article code: 820326, EAN: 7021988203262, IP20, Electrical: Wattage: 400VA, Standby power: 0.36W, Voltage: 220-240V, Overvoltage protection: Yes, Overload protection: Yes, Minium dim level is adjustable: Yes, Memory feature in the event of voltage drop out: Yes, Control/Dimming: Type: Trailing edge, Protection: IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Mounting/Connection: Mounting: DIN rail, Indoor, Module: 2-pole, Dimensions: Width (mm) W: 18, Height (mm) H: 90, Depth (D): 62, Weight (kg) gross/net: 0.09 / 0.08, Packaging: Packaging dimensions (mm): 95 x 63 x 20

Electrical

Wattage
400VA
Standby power
0.36W
Voltage
220-240V
Overvoltage protection
Yes
Overload protection
Yes
Minium dim level is adjustable
Yes
Memory feature in the event of voltage drop out
Yes

Control/Dimming

Type
Trailing edge

Protection

IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)

Mounting/Connection

Mounting
DIN rail, Indoor
Module
2-pole

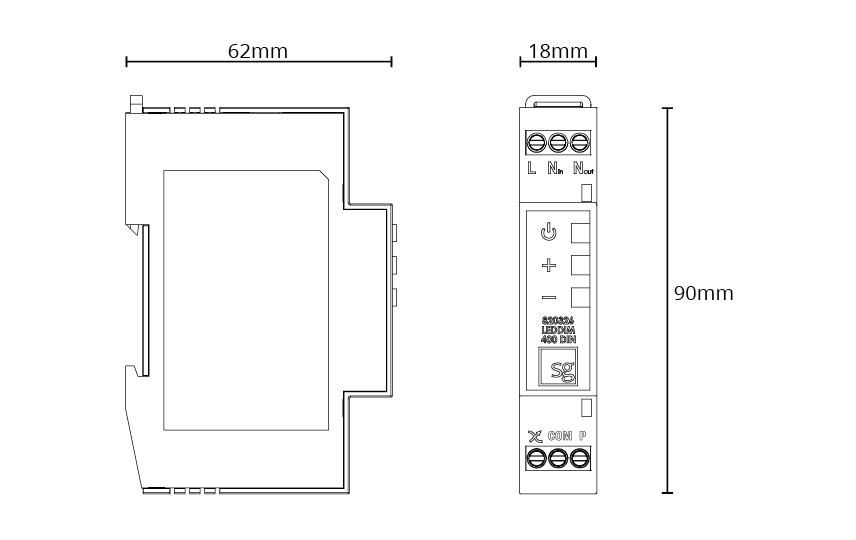

Dimensions

Width (mm) W
18
Height (mm) H
90
Depth (D)
62
Weight (kg) gross/net
0.09 / 0.08

Packaging

Packaging dimensions (mm)
95 x 63 x 20
