LEDDim Smart

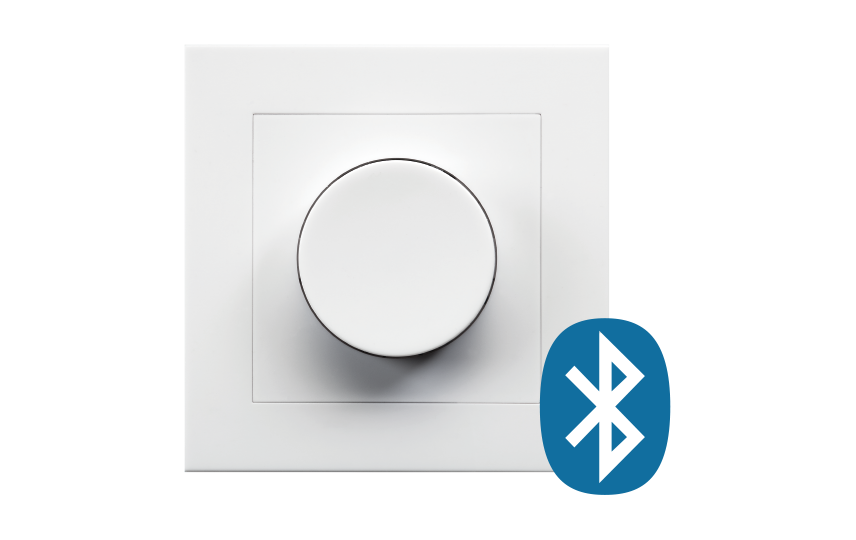

LEDDim Smart White 400VA

Article code
820412
EAN
7021988204122
Replaces
820334
Back to articlelist

Overview

Wattage
400VA
IP Class
IP20
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip20
  • ce

Tools

Downloads

Specification sheet 820412 Mounting instruction LEDDim Smart_User Manual CE Declaration LEDDim Smart

How to specify

Text copied to clipboard

LEDDim Smart White 400VA, Article code: 820412, EAN: 7021988204122, IP20, Electrical: Wattage: 400VA, Standby power: 0.50W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Overvoltage protection: Yes, Overload protection: Yes, Minium dim level is adjustable: Yes, Memory feature in the event of voltage drop out: Yes, Control/Dimming: Type: Trailing edge, Protection: IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 48, Cut-out (mm): 58, Ceiling void depth (mm): 29, Weight (kg) gross/net: 0.095 / 0.085, Packaging: Packaging dimensions (mm): 90 x 90 x 77

Electrical

Wattage
400VA
Standby power
0.50W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Overvoltage protection
Yes
Overload protection
Yes
Minium dim level is adjustable
Yes
Memory feature in the event of voltage drop out
Yes

Control/Dimming

Type
Trailing edge

Protection

IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor

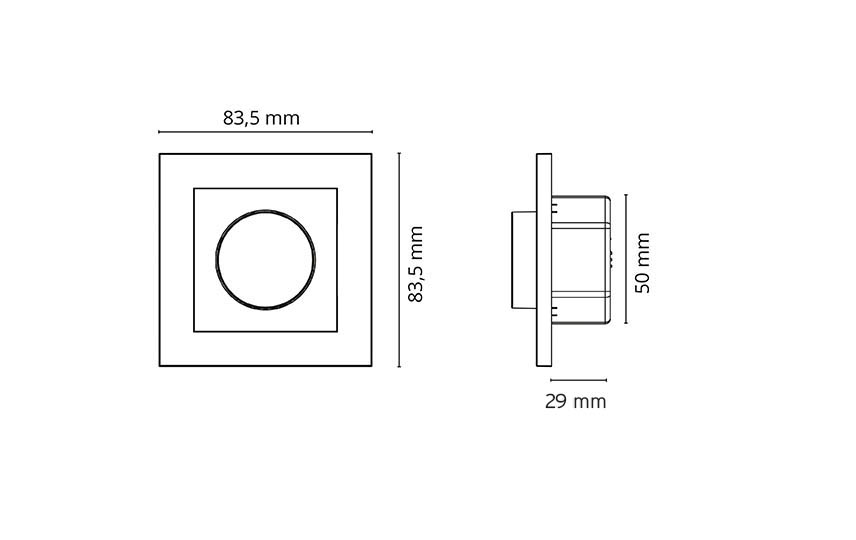

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
48
Cut-out (mm)
58
Ceiling void depth (mm)
29
Weight (kg) gross/net
0.095 / 0.085

Packaging

Packaging dimensions (mm)
90 x 90 x 77
