Smart Plug

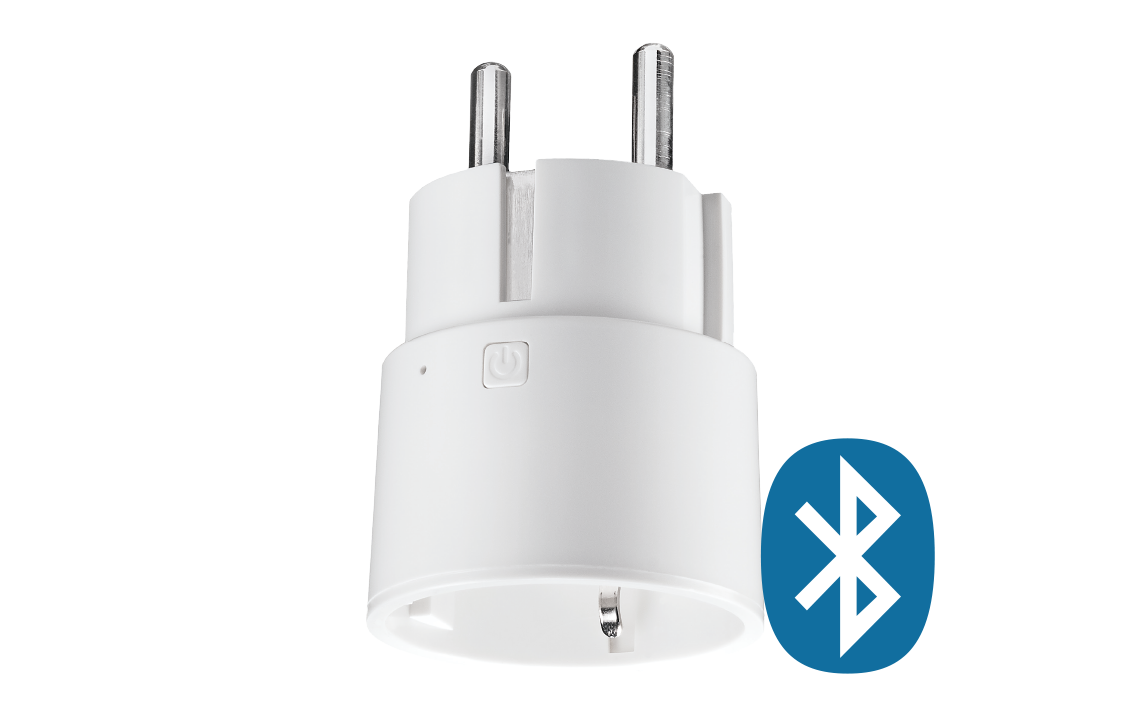

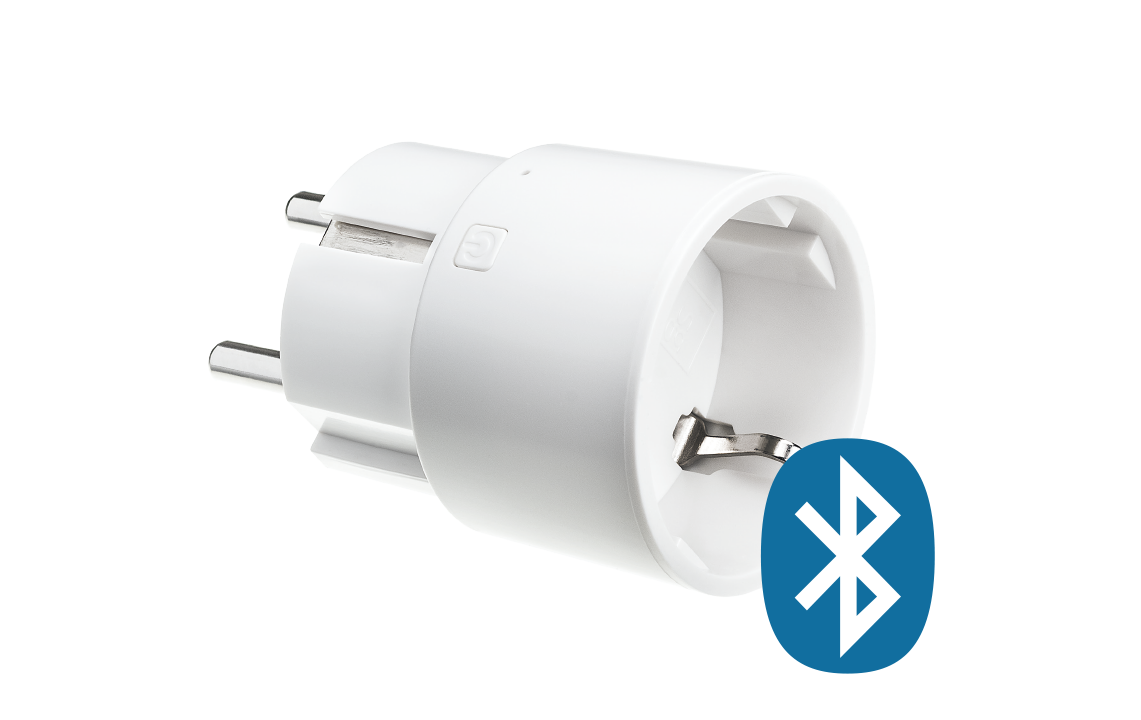

Smart Plug White Max 3000W

Article code
820458
EAN
7021988204580
Replaces
820340
Back to articlelist

Overview

Wattage
Max 3000W
IP Class
IP20
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 820458 Mounting instruction Smart Plug_User Manual CE Declaration Smart Plug

How to specify

Text copied to clipboard

Smart Plug White Max 3000W, Article code: 820458, EAN: 7021988204580, IP20, Electrical: Wattage: Max 3000W, Standby power: 0.50W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Overvoltage protection: Yes, Overload protection: Yes, Control/Dimming: Type: SG Smart / On-Off / Not dimmable, Protection: Luminaire class: Class I, IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Colour: White, Mounting/Connection: Mounting: Surface, Indoor, Connection: Type F Schuko, Dimensions: Height (mm) H: 67, Diameter (mm) D: 44, Weight (kg) gross/net: 0.117 / 0.05, Packaging: Packaging dimensions (mm): 75 x 50 x 50

Electrical

Wattage
Max 3000W
Standby power
0.50W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Overvoltage protection
Yes
Overload protection
Yes

Control/Dimming

Type
SG Smart / On-Off / Not dimmable

Protection

Luminaire class
Class I
IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)
Colour
White

Mounting/Connection

Mounting
Surface, Indoor
Connection
Type F Schuko

Dimensions

Height (mm) H
67
Diameter (mm) D
44
Weight (kg) gross/net
0.117 / 0.05

Packaging

Packaging dimensions (mm)
75 x 50 x 50
