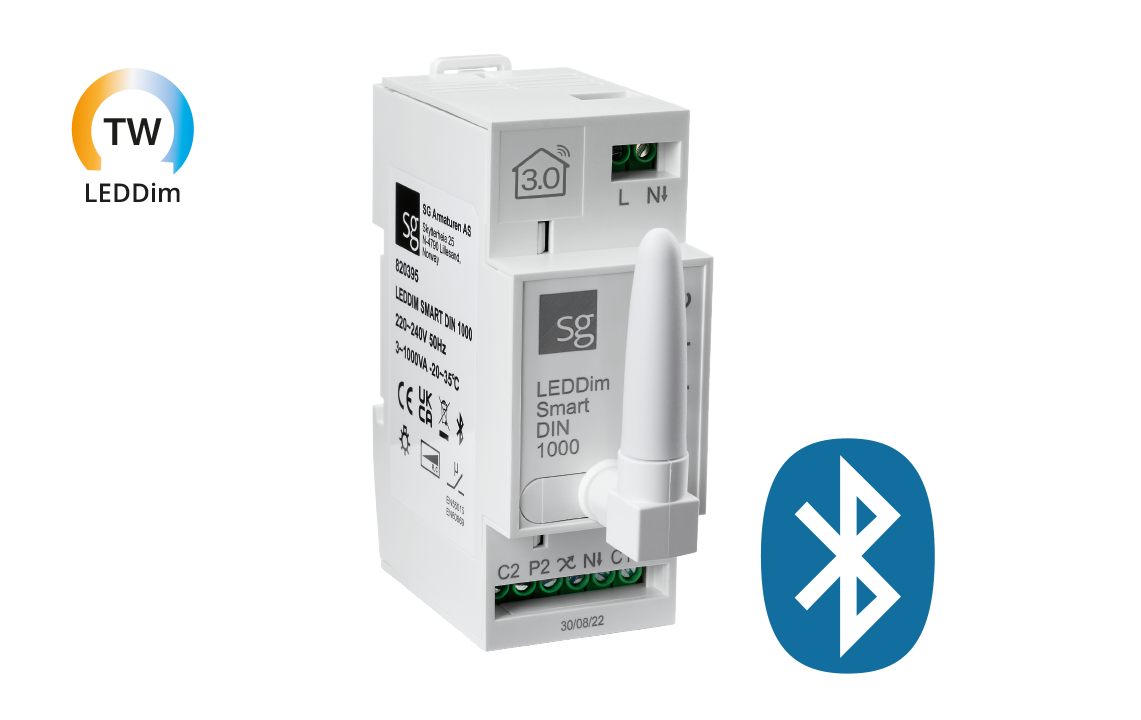

LEDDim Smart DIN 1000 TW 3.0

Bluetooth-controlled digital zone dimmer for DIN-rail mounting. Can be used for Tunable White (TW) LEDDim, dimming, simple on/off control or as a countdown timer. The functions are configured via the SG Smart app. The LEDDim Smart DIN 1000 can be controlled via two inputs. P1 is for a pulse switch (230 V or 24 V). P2 is used for control via a standard on/off PIR sensor, where the output signal from the sensor is connected to the P2 input. An external antenna ensures a good Bluetooth connection.
