Arco Air

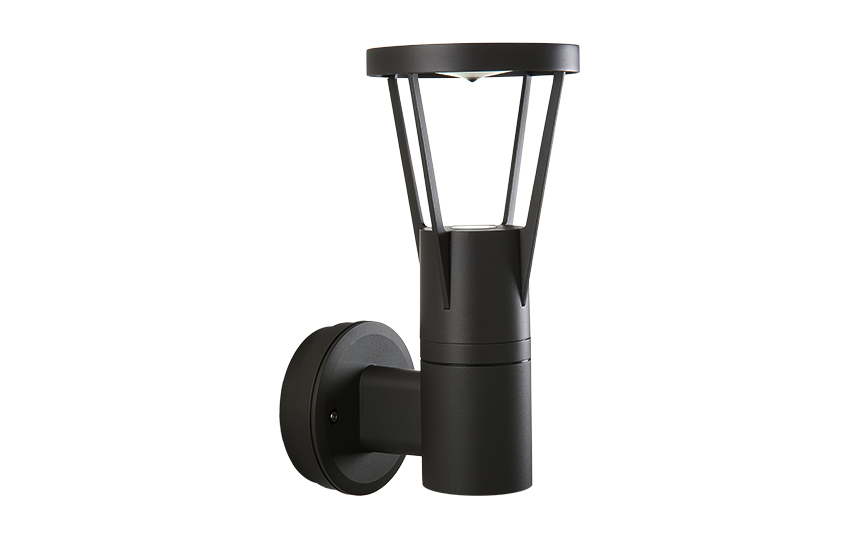

Arco Air Wall Graphite 75lm 2700K Ra>90 Trailing edge

Article code
623622
EAN
7021986236224
Back to articlelist

Overview

Efficacy
13 lm/W
Lumen
75lm
IP Class
IP54
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
Lifetime
50,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik08
  • ip54
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 623622 Revit file - Generic Arco Air Wall - Generic Revit file - Face Based Arco Air Wall - face based

See more

Eulumdat file (ldt) 7021986236224_Arco Air Wall Graphite 75lm 2700K Ra90 Trailing edge dimming Dialux file (uld) 7021986236224_Arco Air Wall Graphite 75lm 2700K Ra90 Trailing edge dimming Relux file (rolf) 7021986236224_Arco_Air_Wall_Graphite_75lm_2700K_Ra_90_Trailing_edge_dimming Mounting instruction Arco Air_User Manual CE Declaration Arco Air

How to specify

Text copied to clipboard

Arco Air Wall Graphite 75lm 2700K Ra>90 Trailing edge, Article code: 623622, EAN: 7021986236224, IP54, IK08, Electrical: System wattage: 6W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 75lm, Efficacy: 13 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L70/B50>50,000, Light distribution: Direct/Indirect, Optic: Glass Clear, Beam angle: 360°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP54, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 160, Height (mm) H: 356, Depth (D): 219, Weight (kg) gross/net: 2.124 / 1.77, Packaging: Packaging dimensions (mm): 225 x 160 x 283

Electrical

System wattage
6W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
75lm
Efficacy
13 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L70/B50>50,000

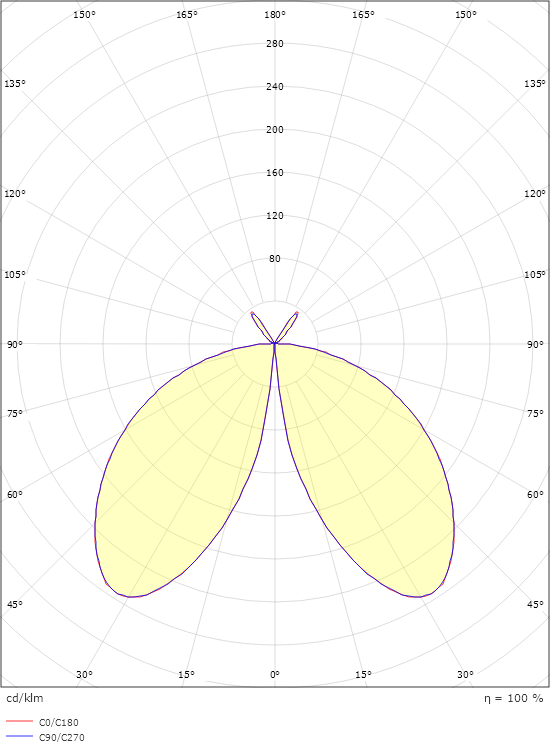

Light distribution
Direct/Indirect
Optic
Glass Clear
Beam angle
360°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP54

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
160
Height (mm) H
356
Depth (D)
219
Weight (kg) gross/net
2.124 / 1.77

Packaging

Packaging dimensions (mm)
225 x 160 x 283
