Kjevik

Kjevik Black 2060lm 3000K Ra>80 On/Off

Article code
623800
EAN
7021986238006
Back to articlelist

Overview

Efficacy
79 lm/W
Lumen
2060lm
IP Class
IP66
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • el
  • dipswitch
  • ik10
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 623800 Revit file - Generic Kjevik Bollard - generic Revit file - Face Based Kjevik bollard - face based

See more

Eulumdat file (ldt) 7021986238006_Kjevik Black 2060lm 3000K Ra80 OnOff Dialux file (uld) 7021986238006_Kjevik Black 2060lm 3000K Ra80 OnOff Relux file (rolf) 7021986238006_Kjevik_Black_2060lm_3000K_Ra_80_On_Off EPD NEPD-12402-12471_Kjevik Mounting instruction Kjevik_User Manual CE Declaration Kjevik

How to specify

Text copied to clipboard

Kjevik Black 2060lm 3000K Ra>80 On/Off, Article code: 623800, EAN: 7021986238006, IP66, IK10, Electrical: System wattage: 26W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 2060lm, Efficacy: 79 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Visible flicker (PstLM): 0.03, Stroboscopic flicker (SVM): 0.02, Photobiological safety: RG 1, ULOR (<1%): Yes, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP66, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Outdoor, Dimensions: Height (mm) H: 1010, Diameter (mm) D: 200, Weight (kg) gross/net: 10.75 / 8.7, Packaging: Packaging dimensions (mm): 1030 x 215 x 215

Electrical

System wattage
26W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
2060lm
Efficacy
79 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

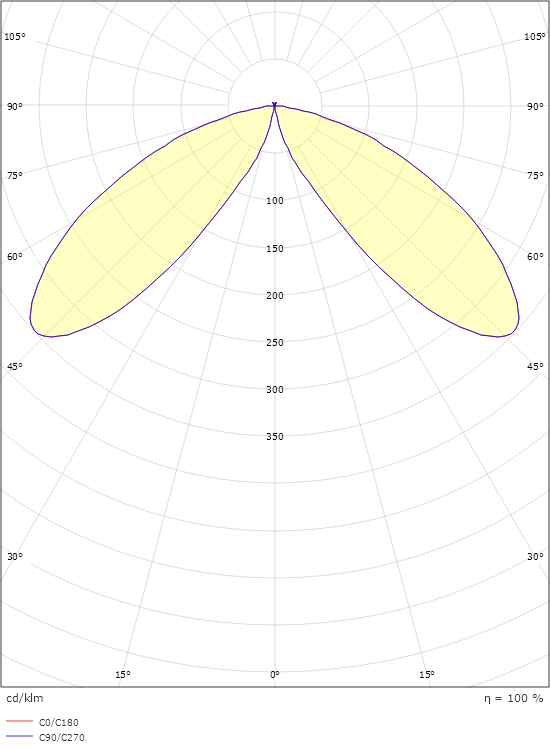

Light distribution
Direct
Visible flicker (PstLM)
0.03
Stroboscopic flicker (SVM)
0.02
Photobiological safety
RG 1
ULOR (<1%)
Yes

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP66
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Outdoor

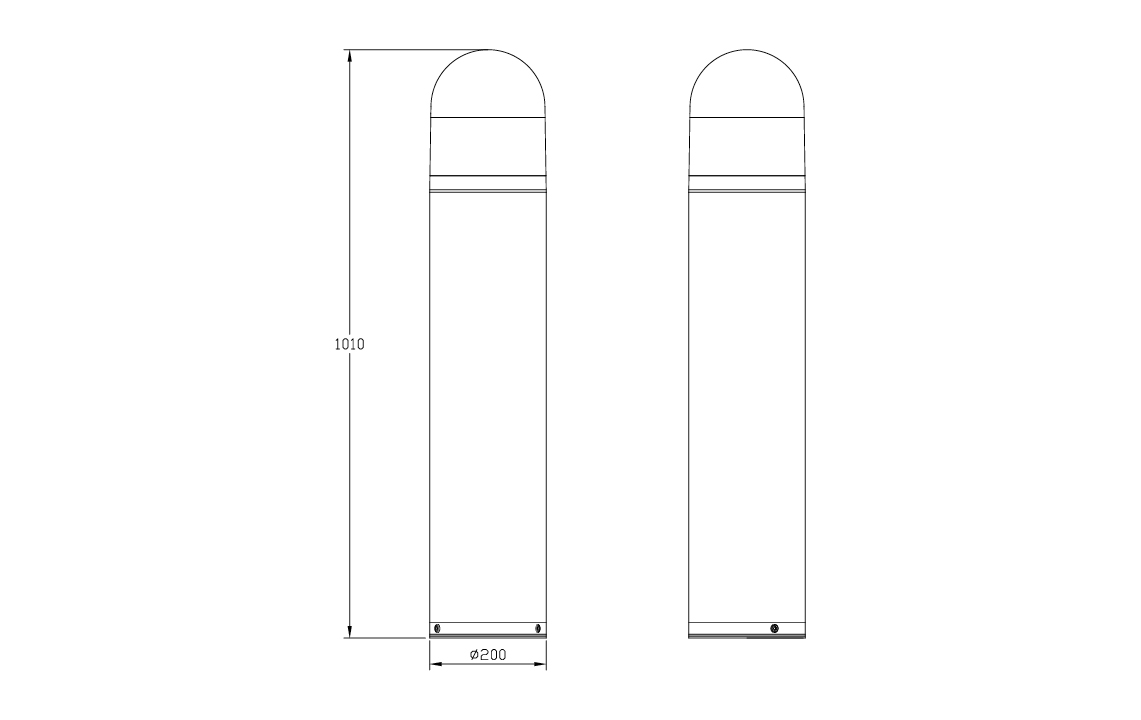

Dimensions

Height (mm) H
1010
Diameter (mm) D
200
Weight (kg) gross/net
10.75 / 8.7

Packaging

Packaging dimensions (mm)
1030 x 215 x 215
