Opus

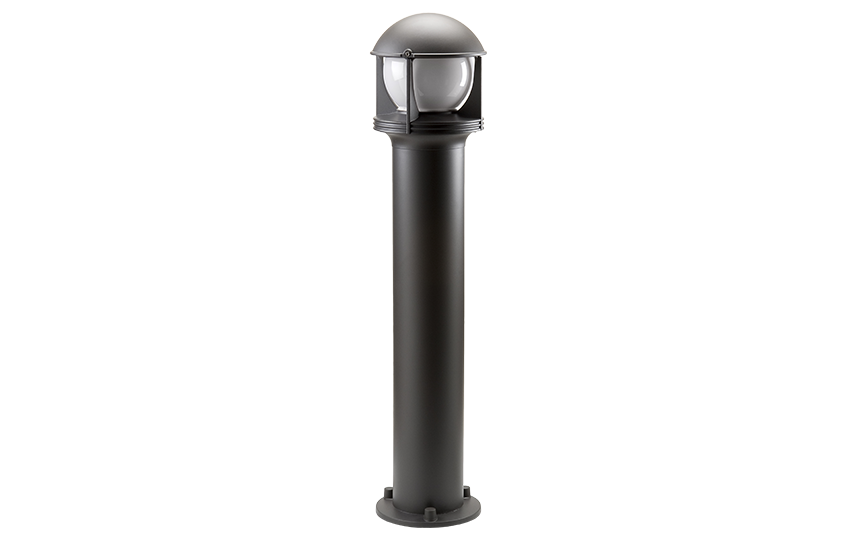

Opus Graphite E27

Article code
623733
EAN
7021986237337
Back to articlelist

Overview

Wattage
Max 46W
IP Class
IP65
Mounting
Onto surfaces or ground anchor, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 623733 Revit file - Face Based Opus - face based Revit file - Generic Opus - Generic

See more

Mounting instruction Opus Mounting instructions CE Declaration Opus

How to specify

Text copied to clipboard

Opus Graphite E27, Article code: 623733, EAN: 7021986237337, IP65, IK10, Electrical: Wattage: Max 46W, Voltage: 220-240V, Light technic: Socket: E27, Light source included: No, Light distribution: Direct, Optic: Opal, Beam angle: 360°, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Onto surfaces or ground anchor, Outdoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 970, Diameter (mm) D: 216, Weight (kg) gross/net: 5.12, Packaging: Packaging dimensions (mm): 230 x 230 x 990

Electrical

Wattage
Max 46W
Voltage
220-240V

Light technic

Socket
E27
Light source included
No
Light distribution
Direct
Optic
Opal
Beam angle
360°

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Onto surfaces or ground anchor, Outdoor
Connection
Screwless terminal block

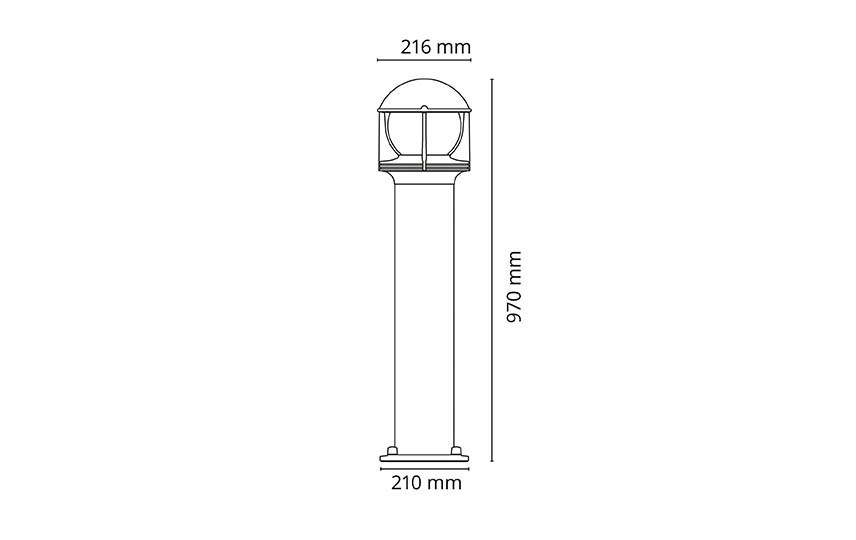

Dimensions

Height (mm) H
970
Diameter (mm) D
216
Weight (kg) gross/net
5.12

Packaging

Packaging dimensions (mm)
230 x 230 x 990
