Ray Bollard II

Ray Bollard II Grey Asymmetric 1990lm 3000K Ra>70 On/Off

Article code
8246095088
EAN
5703821179232
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
83 lm/W
Lumen
1990lm
IP Class
IP54
Colour temperature
3000K
Colour rendering (Ra)
Ra>70
Lifetime
100,000 L90/B10>
Mounting
Onto surfaces or ground anchor, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik10
  • ip54
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246095088 Eulumdat file (ldt) 5703821179232_Ray Bollard II Grey Asymmetric 1980lm 3000K Ra70 Dialux file (uld) 5703821179232_Ray Bollard II Grey Asymmetric 1980lm 3000K Ra70

See more

Relux file (rolf) 5703821179232_Ray_Bollard_II_Grey_Asymmetric_1990lm_3000K_Ra_70_On_Off Revit file - Generic Ray bollard ll - generic Revit file - Face Based Ray Bollard ll - face based Mounting instruction Ray Bollard II_User Manual CE Declaration Ray Pullert II

How to specify

Text copied to clipboard

Ray Bollard II Grey Asymmetric 1990lm 3000K Ra>70 On/Off, Article code: 8246095088, EAN: 5703821179232, IP54, IK10, Electrical: System wattage: 24W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 1990lm, Efficacy: 83 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>70, MacAdams factor: SDCM: 4, Lifetime: L90/B10>100,000, Light distribution: Asymmetric, Optic: Lens, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP54, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Grey S/30, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Onto surfaces or ground anchor, Outdoor, Dimensions: Height (mm) H: 900, Diameter (mm) D: 260, Weight (kg) gross/net: 12.7 / 12.5, Packaging: Packaging dimensions (mm): 900 x 260 x 900

Electrical

System wattage
24W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
1990lm
Efficacy
83 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>70
MacAdams factor
SDCM: 4
Lifetime
L90/B10>100,000

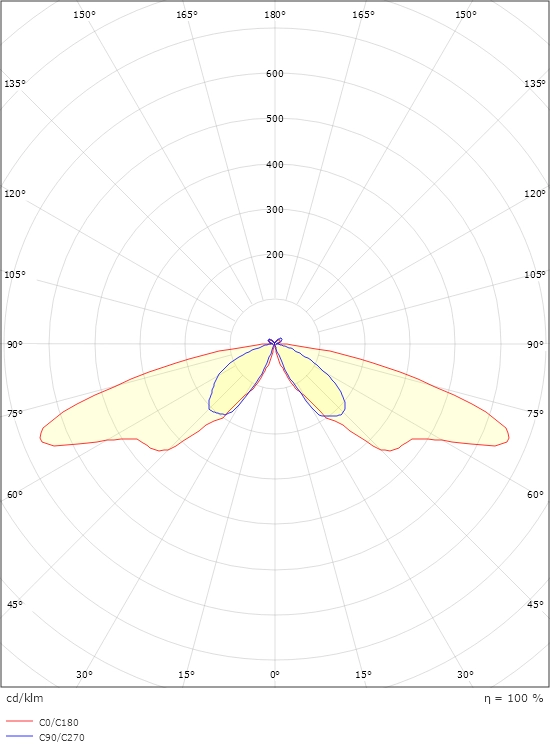

Light distribution
Asymmetric
Optic
Lens

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP54
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Grey S/30
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Onto surfaces or ground anchor, Outdoor

Dimensions

Height (mm) H
900
Diameter (mm) D
260
Weight (kg) gross/net
12.7 / 12.5

Packaging

Packaging dimensions (mm)
900 x 260 x 900
