Evje

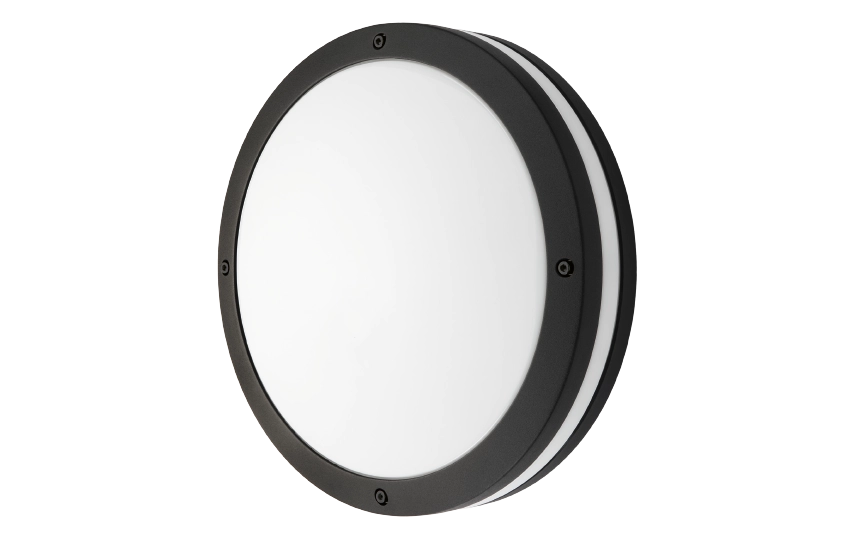

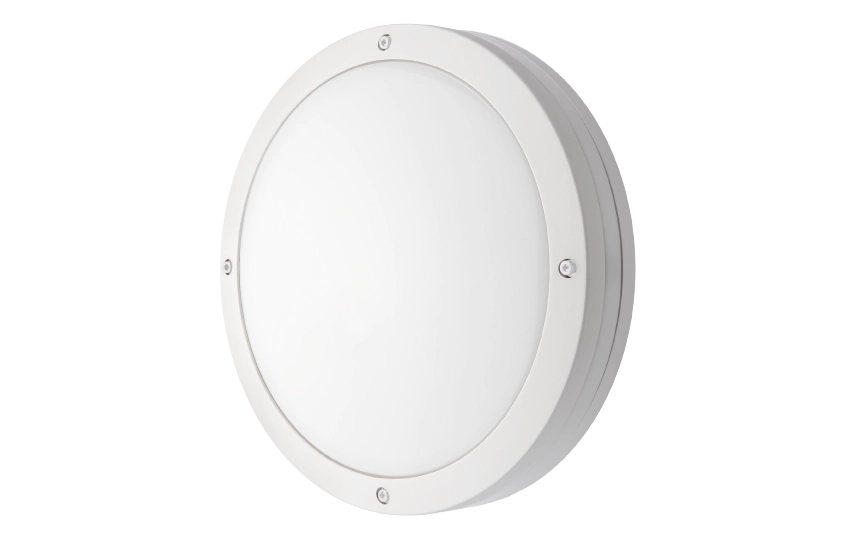

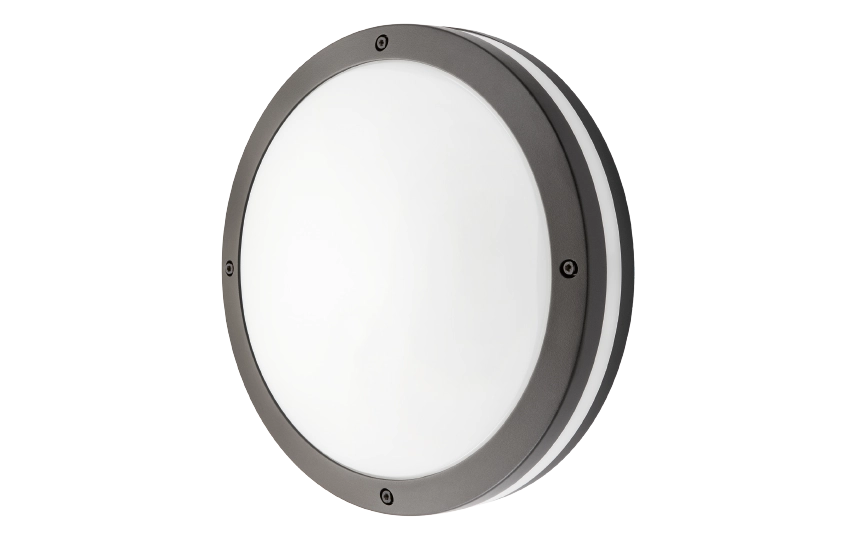

Design: Hallvard Jakobsen. Attractive, round luminaire with direct and indirect light that can be mounted to both walls and ceilings, and both indoors and outdoors. Made of die-cast powder-coated aluminium. Flat diffuser with indirect light made of UV-stabilised opal polycarbonate. Several light source variants and sensors, and wireless control. Two inputs/outputs for cables, option of both visible and concealed cabling, and loopable quick clips. IP65 and vandal-resistant rating IK10.

Article list

Evje

Indoor, Outdoor Direct/Indirect Surface SDCM: 3 Class I IK10 IP65 Ra>80 Beam angle: 110° 10,000, L70/B10> 100,000

Filters

Color

Colour temperature

System wattage

Lumen

Control gear

Filters

					Others	Tools
614825	3000K	36W		HF	Ø320 x L320 x W320 x H85, 2x18W, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
614827	3000K	52W		HF	Ø320 x L320 x W320 x H85, 2x26W, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
644821	3000K	12W	1230lm	Sensor	103 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
644820	3000K	12W	1230lm	Trailing edge	103 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
623825	3000K	36W		HF	Ø320 x L320 x W320 x H85, 2x18W, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
623827	3000K	52W		HF	Ø320 x L320 x W320 x H85, 2x26W, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
643821	3000K	12W	1230lm	Sensor	103 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
643824	3000K	12W	1180lm	Sensor Wireless	98 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
643820	3000K	12W	1230lm	Trailing edge	103 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
611827	3000K	52W		HF	Ø320 x L320 x W320 x H85, 2x26W, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641821	3000K	12W	1270lm	Sensor	106 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641820	3000K	12W	1270lm	Trailing edge	106 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
644823	4000K	12W	1300lm	Sensor	108 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
644822	4000K	12W	1300lm	Trailing edge	108 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
643823	4000K	12W	1300lm	Sensor	108 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
643822	4000K	12W	1300lm	Trailing edge	108 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641823	4000K	12W	1340lm	Sensor	112 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641822	4000K	12W	1340lm	Trailing edge	112 lm/W, Ø320 x H85, 2000, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
624829				On/Off	Ø320 x H85, 2xE27, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
624826				Sensor	Ø320 x H85, 2xE27, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
633829				On/Off	Ø320 x H85, 2xE27, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
633826				Sensor	Ø320 x H85, 2xE27, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
621829				On/Off	Ø320 x H85, 2xE27, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
621826				Sensor	Ø320 x H85, 2xE27, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks
