Evje

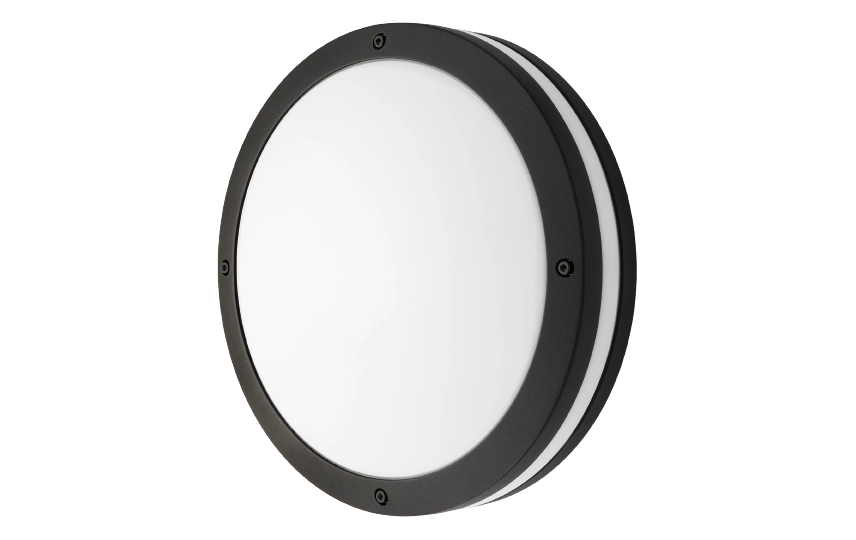

Evje Black 2x18W 3000K Ra>80 HF

Article code
614825
EAN
7021986148251

Overview

Wattage
2x18W TC-D/E
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
10,000
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty
  • indoor
  • outdoor
  • dipswitch
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

How to specify

Text copied to clipboard

Evje Black 2x18W 3000K Ra>80 HF, Article code: 614825, EAN: 7021986148251, IP65, IK10, Electrical: Wattage: 2x18W TC-D/E, System wattage: 36W, Voltage: 220-240V, Light technic: Type of light source: Compact fluorescent lamp, Socket: G24q-2, Light source included: Yes, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, Lifetime: 10,000, Light distribution: Direct/Indirect, Optic: Opal, Beam angle: 110°, Control/Dimming: Type: HF, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 320, Width (mm) W: 320, Height (mm) H: 85, Diameter (mm) D: 320, Weight (kg) gross/net: 3

Electrical

Wattage
2x18W TC-D/E
System wattage
36W
Voltage
220-240V

Light technic

Type of light source
Compact fluorescent lamp
Socket
G24q-2
Light source included
Yes
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
10,000
Light distribution
Direct/Indirect
Optic
Opal
Beam angle
110°

Control/Dimming

Type
HF

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
320
Width (mm) W
320
Height (mm) H
85
Diameter (mm) D
320
Weight (kg) gross/net
3
