Basso

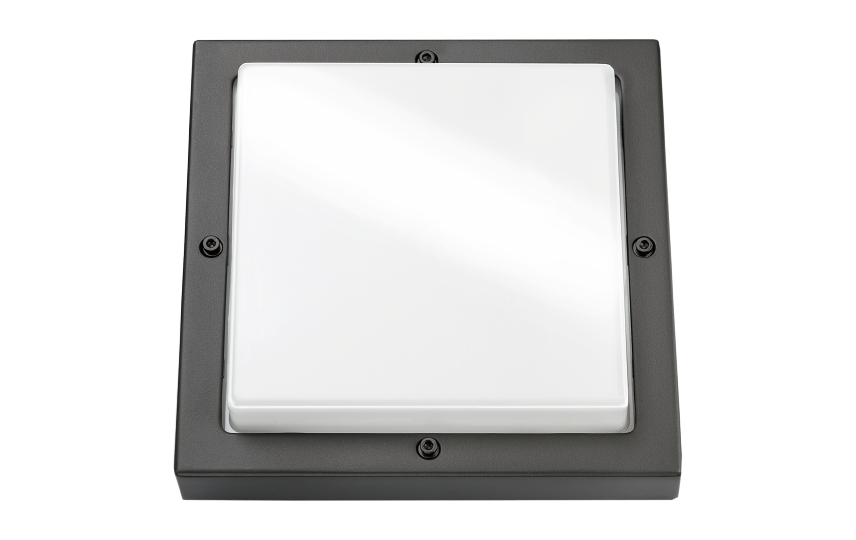

Basso Graphite 2xE27 Sensor

Article code
623199
EAN
7021986231991
Back to articlelist

Overview

Wattage
Max 2x15W
IP Class
IP65
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 623199 Mounting instruction Basso E27_User Manual sensor Mounting instruction Basso E27_User Manual sensor EPD NEPD-8956-8601_Basso-2xE27-Sensor CE Declaration Basso Revit file - Generic Bassi - Generic Revit file - Face Based Basso - face based

How to specify

Text copied to clipboard

Basso Graphite 2xE27 Sensor, Article code: 623199, EAN: 7021986231991, IP65, IK10, Electrical: Wattage: Max 2x15W, Voltage: 220-240V, Light technic: Socket: 2xE27, Light source included: No, Light distribution: Direct, Optic: Opal, Beam angle: 120°, Control/Dimming: Type: Sensor, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 308, Width (mm) W: 308, Height (mm) H: 88, Weight (kg) gross/net: 1.9 / 1.9, Packaging: Packaging dimensions (mm): 308 x 308 x 88

Electrical

Wattage
Max 2x15W
Voltage
220-240V

Light technic

Socket
2xE27
Light source included
No
Light distribution
Direct
Optic
Opal
Beam angle
120°

Control/Dimming

Type
Sensor

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
308
Width (mm) W
308
Height (mm) H
88
Weight (kg) gross/net
1.9 / 1.9

Packaging

Packaging dimensions (mm)
308 x 308 x 88
