Junistar Exclusive

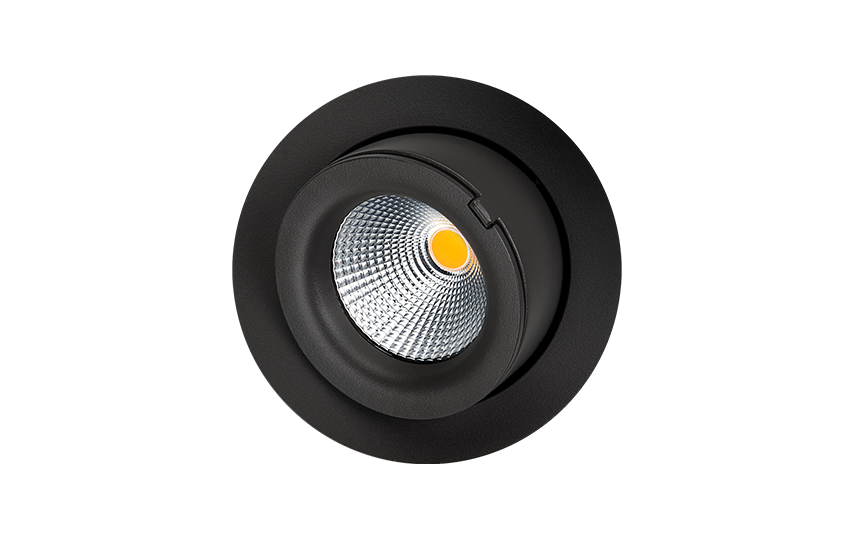

Junistar Exclusive In/Outdoor Black 660lm 3000K Ra>95 Trailing edge
- Article code
- 903303
- EAN
- 7021989033035
Overview
- Wattage
- 9W
- Efficacy
- 61 lm/W
- Lumen
- 660lm
- IP Class
- IP44/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
Electrical
- Wattage
- 9W
- System wattage
- 10.9W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
Light technic
- Type of light source
- LED
- Luminous flux
- 660lm
- Efficacy
- 61 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>95
- MacAdams factor
- SDCM: 2
- Lifetime
- L90/B10>100,000

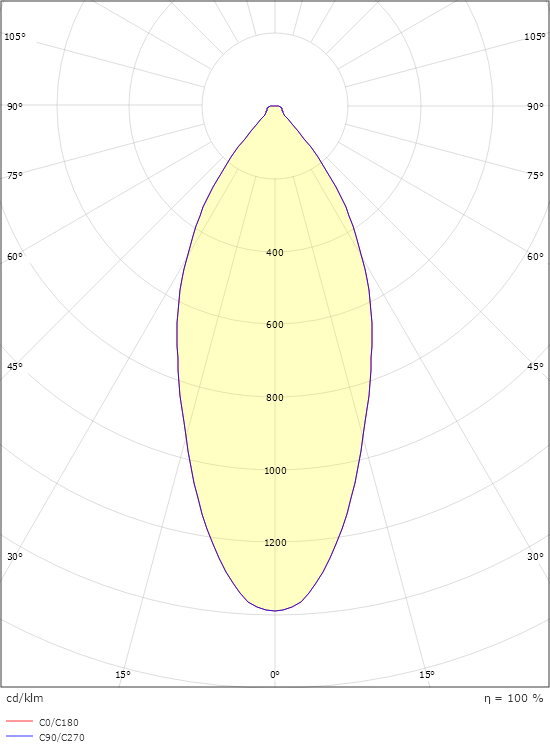

- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<25
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II SELV
- IP Class
- IP44/IP20
Energy and approvals
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Recessed, Indoor / Outdoor
- Connection
- Screwless terminal block
Dimensions
- Length (mm) L
- 121
- Width (mm) W
- 94
- Height (mm) H
- 55
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 53
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.38 / 0.38
Packaging
- Packaging dimensions (mm)
- 130 x 120 x 90
