Junistar Exclusive

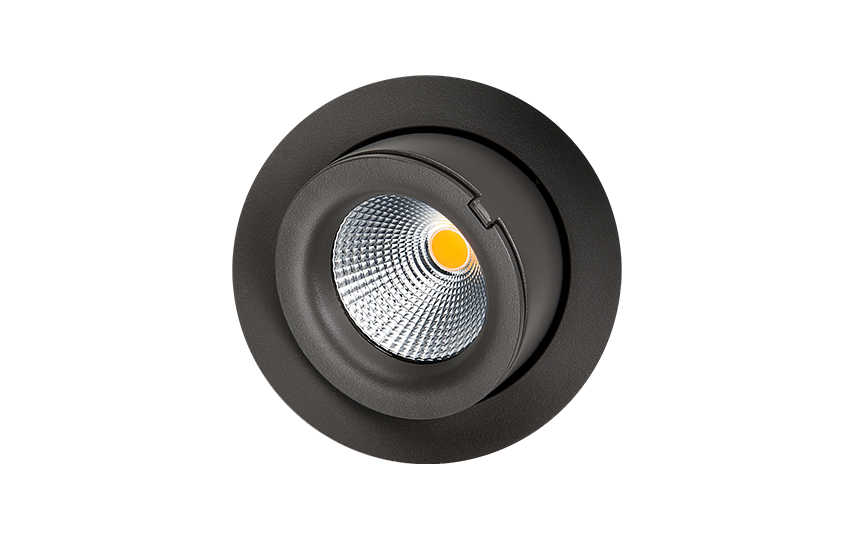

Junistar Exclusive In/Outdoor Graphite 750lm 4000K Ra>95 Trailing edge

Article code
903404
EAN
7021989034049
Back to articlelist

Overview

Wattage
9W
Efficacy
69 lm/W
Lumen
750lm
IP Class
IP44/IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>95
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor / Outdoor
    5 years corrosion warranty 10 years Warranty
  • indoor
  • outdoor
  • dipswitch
  • ip44ip20
  • tilt40
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 903404 Mounting instruction Junistar Exclusive_User Manual CE Declaration Junistar Exclusive In-Outdoor Relux file (rolf) 7021989034049_Junistar_Exclusive_In_Outdoor_Graphite_750lm_4000K_Ra_98_Trailing_edge_dimming Eulumdat file (ldt) 7021989034049_Junistar Exclusive InOutdoor Graphite 750lm 4000K Ra 98-36691 Dialux file (uld) 7021989034049_Junistar Exclusive InOutdoor Graphite 750lm 4000K Ra 98 Revit file - Generic Junistar Exclusive - generic Revit file - Ceiling Based Junistar Exclusive - ceiling based

How to specify

Text copied to clipboard

Junistar Exclusive In/Outdoor Graphite 750lm 4000K Ra>95 Trailing edge, Article code: 903404, EAN: 7021989034049, IP44/IP20, Electrical: Wattage: 9W, System wattage: 10.9W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 77, B16: 123, C10: 77, C16: 123, Light technic: Type of light source: LED, Luminous flux: 750lm, Efficacy: 69 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>95, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector, Beam angle: 42°, UGR: UGR<25, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II SELV, IP Class: IP44/IP20, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: Tempered glass, Mounting/Connection: Mounting: Recessed, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 121, Width (mm) W: 94, Height (mm) H: 55, Cut-out (mm): 83, Ceiling void depth (mm): 53, Distance to flammable materials: 10mm, Weight (kg) gross/net: 0.38 / 0.38, Packaging: Packaging dimensions (mm): 130 x 115 x 95

Electrical

Wattage
9W
System wattage
10.9W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 77, B16: 123, C10: 77, C16: 123

Light technic

Type of light source
LED
Luminous flux
750lm
Efficacy
69 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>95
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

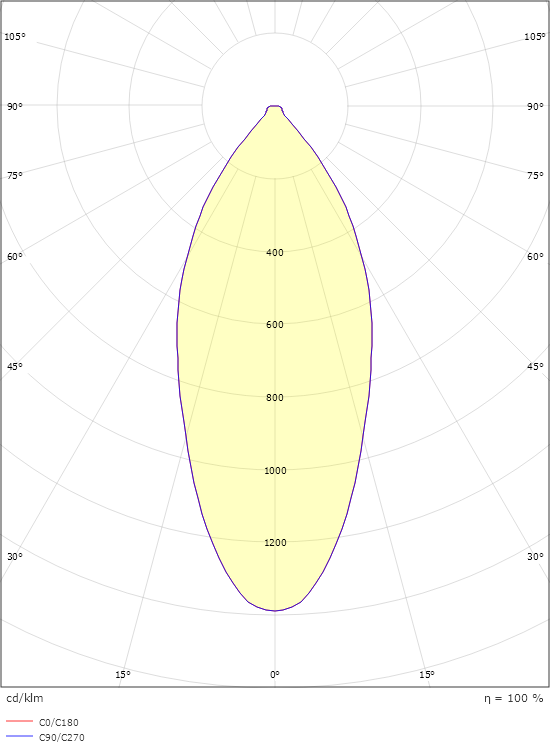

Light distribution
Direct
Optic
Reflector
Beam angle
42°
UGR
UGR<25

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II SELV
IP Class
IP44/IP20

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
Tempered glass

Mounting/Connection

Mounting
Recessed, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
121
Width (mm) W
94
Height (mm) H
55
Cut-out (mm)
83
Ceiling void depth (mm)
53
Distance to flammable materials
10mm
Weight (kg) gross/net
0.38 / 0.38

Packaging

Packaging dimensions (mm)
130 x 115 x 95
