Jupiter Pro Soft

Jupiter Pro Soft White 1730lm 3000K Ra>90 DALI-2 / Push Dim

Article code
940352
EAN
7021989403524
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
79 lm/W
Lumen
1730lm
IP Class
IP65/IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • el
  • dipswitch
  • ip20ip65
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 940352 Mounting instruction Jupiter Pro Soft Dali_User Manual CE Declaration Jupiter Pro Soft Relux file (rolf) 7021989403524_Jupiter_Pro_Soft_White_1730lm_3000K_Ra_90_DALI Eulumdat file (ldt) 7021989403524_Jupiter Pro Soft White 1730lm 3000K Ra90 DALI Dialux file (uld) 7021989403524_Jupiter Pro Soft White 1730lm 3000K Ra90 DALI Revit file - Generic Jupiter Pro Soft - Generic Revit file - Ceiling Based Jupiter Pro Soft - ceiling based

How to specify

Text copied to clipboard

Jupiter Pro Soft White 1730lm 3000K Ra>90 DALI-2 / Push Dim, Article code: 940352, EAN: 7021989403524, IP65/IP20, Electrical: System wattage: 22W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 1730lm, Efficacy: 79 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector, Beam angle: 35°, UGR: UGR<10, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class II SELV, IP Class: IP65/IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Tempered glass, Mounting/Connection: Mounting: Recessed, Indoor / Outdoor, Connection: 5 pol Linect / screwless terminal block, Dimensions: Height (mm) H: 130, Diameter (mm) D: 114, Cut-out (mm): 83, Ceiling void depth (mm): 130, Distance to flammable materials: 50mm, Weight (kg) gross/net: 1.09 / 0.91, Packaging: Packaging dimensions (mm): 142 x 142 x 140

Electrical

System wattage
22W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
1730lm
Efficacy
79 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

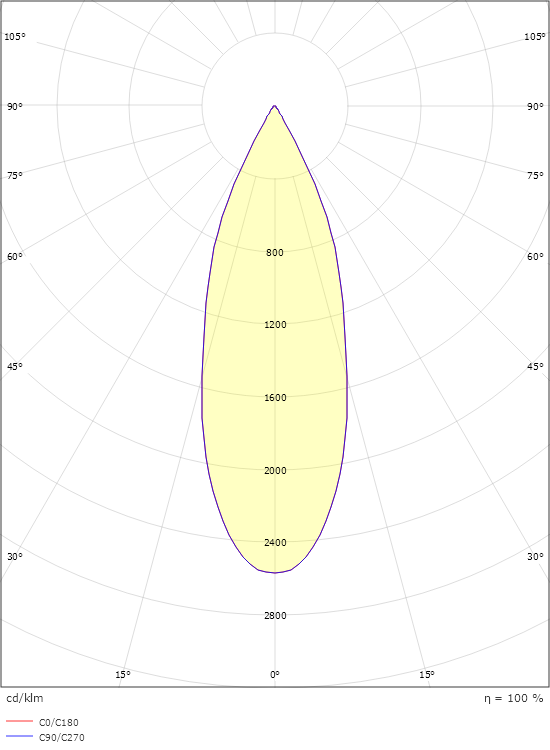

Light distribution
Direct
Optic
Reflector
Beam angle
35°

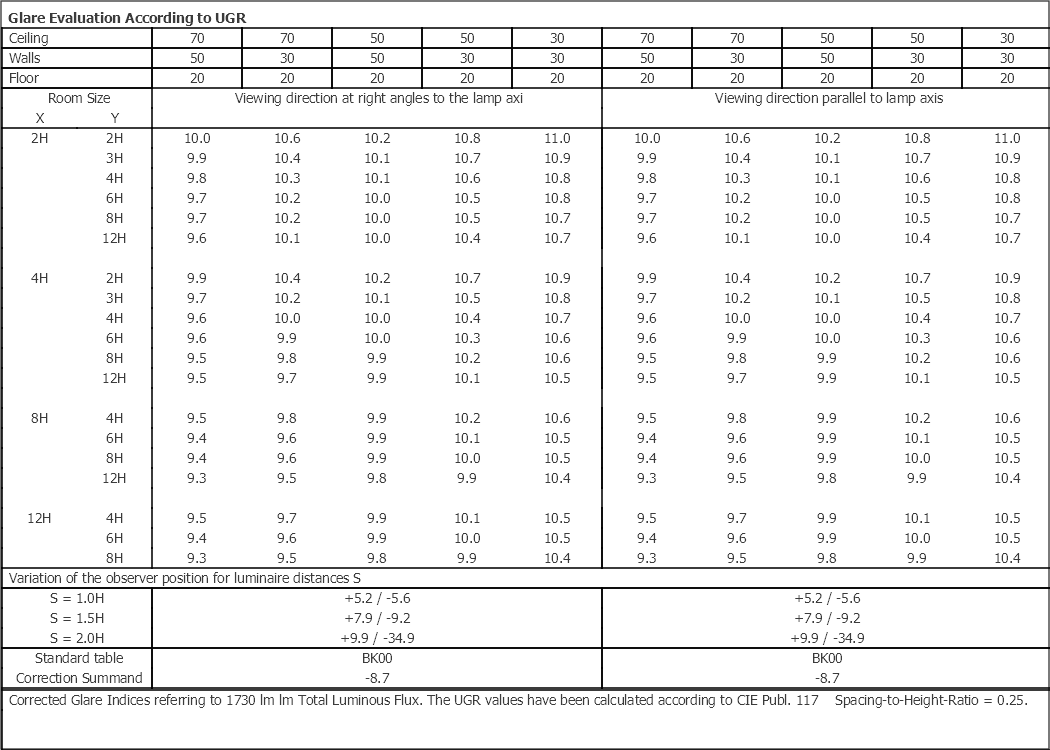

UGR
UGR<10

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class II SELV
IP Class
IP65/IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Tempered glass

Mounting/Connection

Mounting
Recessed, Indoor / Outdoor
Connection
5 pol Linect / screwless terminal block

Dimensions

Height (mm) H
130
Diameter (mm) D
114
Cut-out (mm)
83
Ceiling void depth (mm)
130
Distance to flammable materials
50mm
Weight (kg) gross/net
1.09 / 0.91

Packaging

Packaging dimensions (mm)
142 x 142 x 140
