Flora

Flora Black 400lm 3000K Ra>80 Trailing edge

Article code
614003
EAN
7021986140033
Back to articlelist

Overview

Efficacy
65 lm/W
Lumen
400lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
25,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik08
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 614003 Eulumdat file (ldt) 7021986140033_Flora Black 62W LED 3000K Ra80-38237 Dialux file (uld) 7021986140033_Flora Black 62W LED 3000K Ra80

See more

Relux file (rolf) 7021986140033_Flora_Black_400lm_3000K_Ra_80_Trailing_edge_dimming Revit file - Generic Flora - Generic Revit file - Face Based Flora - face based Mounting instruction Flora Mounting instructions CE Declaration Flora

How to specify

Text copied to clipboard

Flora Black 400lm 3000K Ra>80 Trailing edge, Article code: 614003, EAN: 7021986140033, IP65, IK08, Electrical: System wattage: 6.2W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 400lm, Efficacy: 65 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 4, Lifetime: L70/B50>25,000, Light distribution: Direct, Optic: Glass Clear, Beam angle: 36°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK08, IP Class: IP65, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Polyamid (PA), Colour: Black (RAL 9004), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Outdoor, Cable: Cable 2x1.0mm² 2m, H05RN-F, Connection: Screwless terminal block, Dimensions: Width (mm) W: 110, Height (mm) H: 388, Weight (kg) gross/net: 0.75 / 0.75, Packaging: Packaging dimensions (mm): 245 x 115 x 95

Electrical

System wattage
6.2W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
400lm
Efficacy
65 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 4
Lifetime
L70/B50>25,000

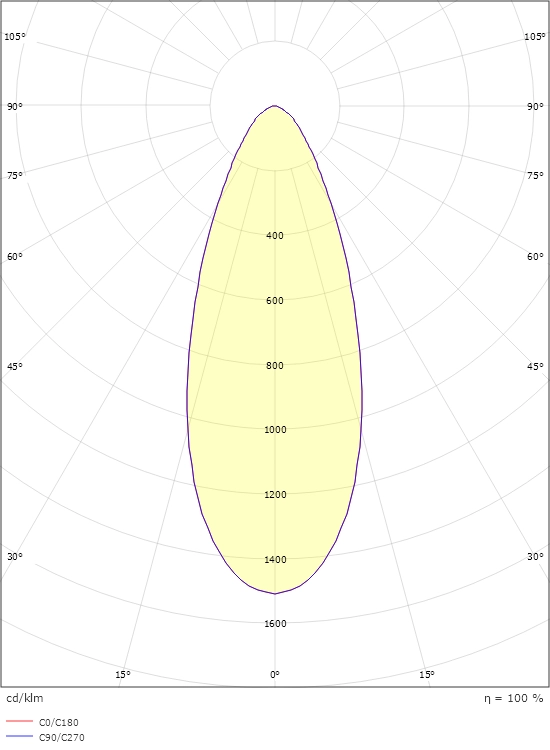

Light distribution
Direct
Optic
Glass Clear
Beam angle
36°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK08
IP Class
IP65

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Polyamid (PA)
Colour
Black (RAL 9004)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Outdoor
Cable
Cable 2x1.0mm² 2m, H05RN-F
Connection
Screwless terminal block

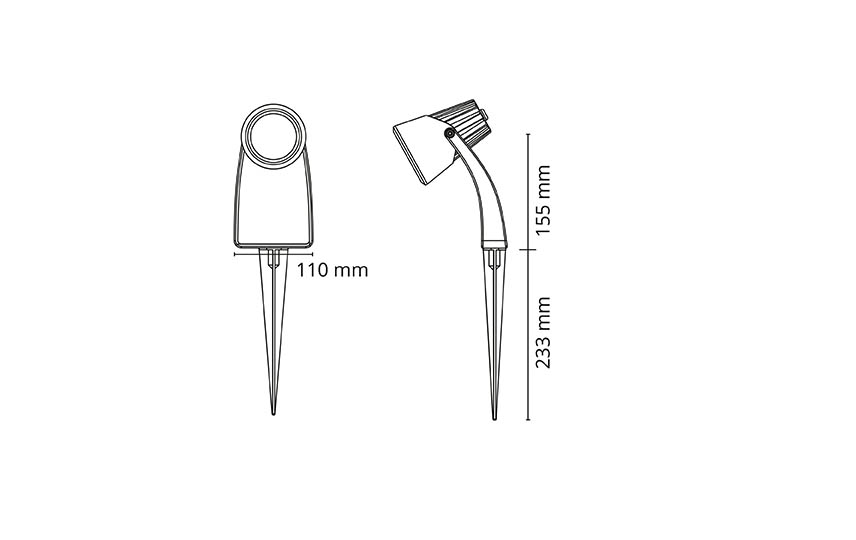

Dimensions

Width (mm) W
110
Height (mm) H
388
Weight (kg) gross/net
0.75 / 0.75

Packaging

Packaging dimensions (mm)
245 x 115 x 95
