Luna Deco Opal

Luna Deco Opal 80lm 3000K Ra>80 Dimmable, depending on the driver

Article code
630043
EAN
7021986300437
Replaces
692103
Back to articlelist

Overview

Efficacy
20 lm/W
Lumen
80lm
IP Class
IP67
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Recessed, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • 24v
  • ip67
  • klasse_3
  • ce

Tools

Downloads

Specification sheet 630043 Revit file - Generic Luna Deco Opal - generic Revit file - Face Based Luna Deco Opal - face based

See more

Eulumdat file (ldt) 7021986300437_Luna Deco Opal 3W LED 3000K Ra80 24V-45352 Dialux file (uld) 7021986300437_Luna Deco Opal 3W LED 3000K Ra80 24V Relux file (rolf) 7021986300437_Luna_Deco_Opal_80lm_3000K_Ra_80 Mounting instruction Luna Deco Opal_User Manual CE Declaration Luna Deco Opal

How to specify

Text copied to clipboard

Luna Deco Opal 80lm 3000K Ra>80 Dimmable, depending on the driver, Article code: 630043, EAN: 7021986300437, IP67, Electrical: System wattage: 4W, Voltage: 24V, Light technic: Type of light source: LED, Luminous flux: 80lm, Efficacy: 20 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Lens, Photobiological safety: RG 1, Control/Dimming: Type: Dimmable, depending on the driver, Protection: Luminaire class: Class III, IP Class: IP67, Max load: 70 kg, Energy and approvals: Contains light source of energy class: G, Materials and finish: Housing: Aluminium and stainless steel, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Outdoor, Cable: Cable 1m, Dimensions: Height (mm) H: 90, Diameter (mm) D: 54, Cut-out (mm): 40, Weight (kg) gross/net: 0.338 / 0.308, Packaging: Packaging dimensions (mm): 135 x 85 x 65

Electrical

System wattage
4W
Voltage
24V

Light technic

Type of light source
LED
Luminous flux
80lm
Efficacy
20 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

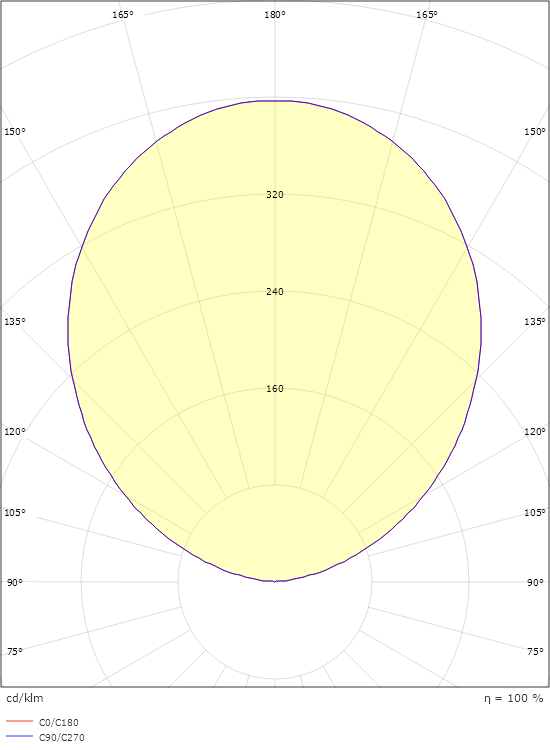

Light distribution
Direct
Optic
Lens
Photobiological safety
RG 1

Control/Dimming

Type
Dimmable, depending on the driver

Protection

Luminaire class
Class III
IP Class
IP67
Max load
70 kg

Energy and approvals

Contains light source of energy class
G

Materials and finish

Housing
Aluminium and stainless steel
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Outdoor
Cable
Cable 1m

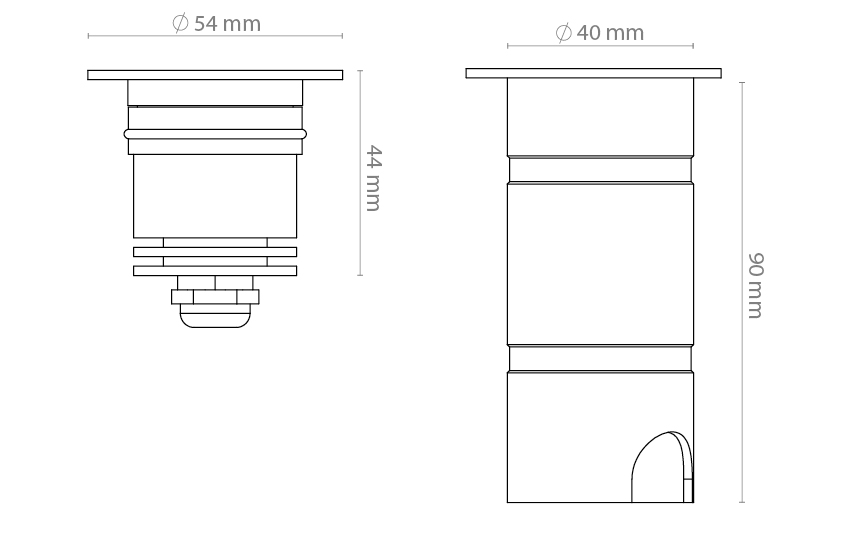

Dimensions

Height (mm) H
90
Diameter (mm) D
54
Cut-out (mm)
40
Weight (kg) gross/net
0.338 / 0.308

Packaging

Packaging dimensions (mm)
135 x 85 x 65
