Luna Deco

Luna Deco 3O 16lm 3000K Ra>80 Dimmable, depending on the driver

Article code
630014
EAN
7021986300147
Back to articlelist

Overview

Efficacy
4 lm/W
Lumen
16lm
IP Class
IP67
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Recessed, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • 24v
  • ik10
  • ip67
  • klasse_3

Tools

Downloads

Specification sheet 630014 Revit file - Generic Luna Deco 3 O - generic Revit file - Face Based Luna Deco 3 0 - face based

See more

Eulumdat file (ldt) 7021986300147_Luna Deco 3O 3W LED 3000K Ra80 24V-38757 Dialux file (uld) 7021986300147_Luna Deco 3O 3W LED 3000K Ra80 24V Relux file (rolf) 7021986300147_Luna_Deco_3O_16lm_3000K_Ra_80_Dimmable,_depending_on_the_driver Mounting instruction Luna Deco_User Manual CE Declaration Luna Deco

How to specify

Text copied to clipboard

Luna Deco 3O 16lm 3000K Ra>80 Dimmable, depending on the driver, Article code: 630014, EAN: 7021986300147, IP67, IK10, Electrical: System wattage: 4W, Voltage: 24V, Light technic: Type of light source: LED, Luminous flux: 16lm, Efficacy: 4 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Indirect, Optic: Lens, Photobiological safety: RG 0, Control/Dimming: Type: Dimmable, depending on the driver, Protection: Luminaire class: Class III, IK Class: IK10, IP Class: IP67, Max load: 500 kg, Energy and approvals: Contains light source of energy class: G, Materials and finish: Housing: Aluminium and stainless steel, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Outdoor, Module: 3O, Cable: Cable 1m, Dimensions: Length (mm) L: 51, Width (mm) W: 60, Height (mm) H: 51, Depth (D): 51, Cut-out (mm): 40, Weight (kg) gross/net: 0.42 / 0.382, Packaging: Packaging dimensions (mm): 135 x 85 x 65

Electrical

System wattage
4W
Voltage
24V

Light technic

Type of light source
LED
Luminous flux
16lm
Efficacy
4 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

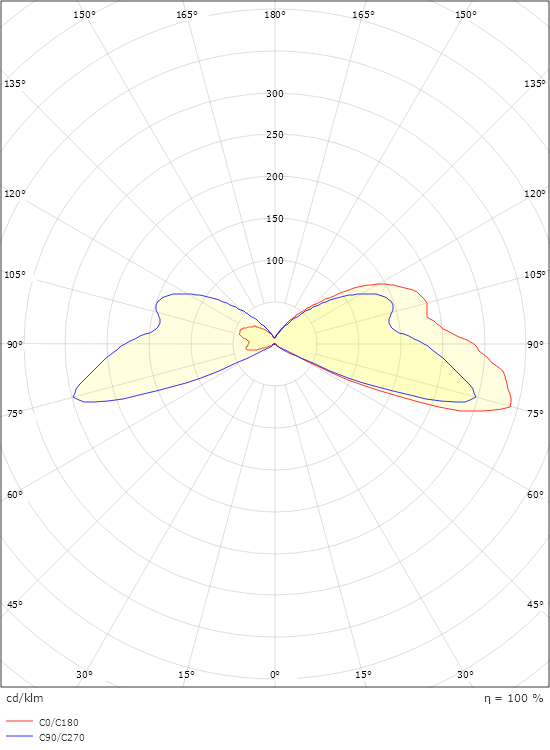

Light distribution
Indirect
Optic
Lens
Photobiological safety
RG 0

Control/Dimming

Type
Dimmable, depending on the driver

Protection

Luminaire class
Class III
IK Class
IK10
IP Class
IP67
Max load
500 kg

Energy and approvals

Contains light source of energy class
G

Materials and finish

Housing
Aluminium and stainless steel
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Outdoor
Module
3O
Cable
Cable 1m

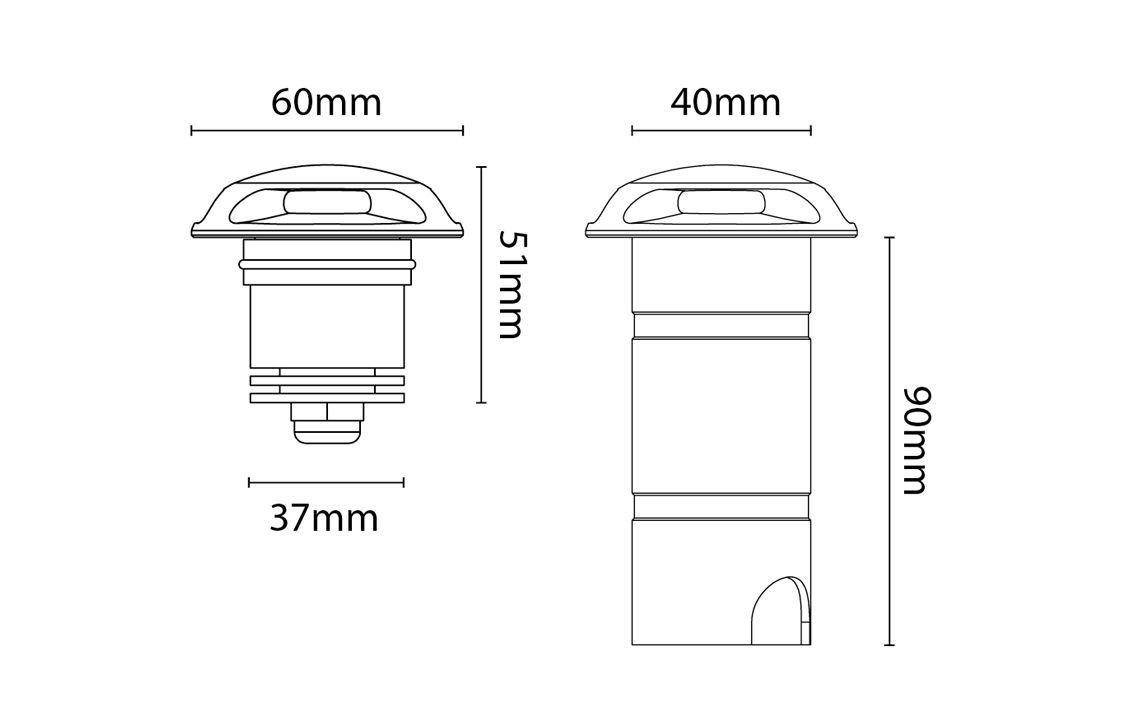

Dimensions

Length (mm) L
51
Width (mm) W
60
Height (mm) H
51
Depth (D)
51
Cut-out (mm)
40
Weight (kg) gross/net
0.42 / 0.382

Packaging

Packaging dimensions (mm)
135 x 85 x 65
