Luna Deco

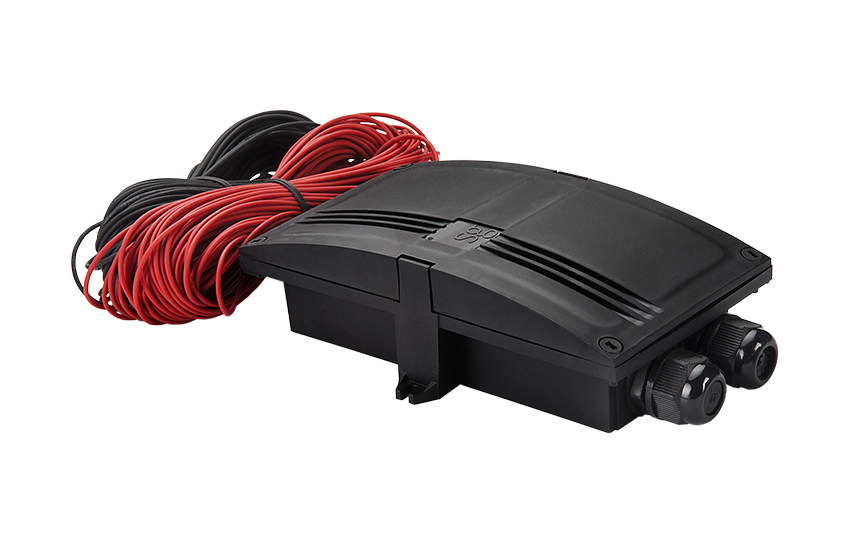

Luna Black 24V Max 20W Driverbox Trailing edge

Article code
692107
EAN
7021986921076
Replaces
900117
Back to articlelist

Overview

Wattage
Max 20W
IP Class
IP44
Mounting
Surface, Indoor / Outdoor
  • indoor
  • outdoor
  • 24v
  • ik08
  • ip44
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 692107 Mounting instruction Luna Driver Kit phase cut_User Manual CE Declaration Luna Deco

How to specify

Text copied to clipboard

Luna Black 24V Max 20W Driverbox Trailing edge, Article code: 692107, EAN: 7021986921076, IP44, IK08, Electrical: Wattage: Max 20W, Voltage: 24V, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK08, IP Class: IP44, Materials and finish: Housing: Plastic, Colour: Black (RAL 9004), Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Cable: Cable 2x20m, Dimensions: Length (mm) L: 180, Width (mm) W: 100, Height (mm) H: 53, Weight (kg) gross/net: 0.79 / 0.66, Packaging: Packaging dimensions (mm): 230 x 170 x 63

Electrical

Wattage
Max 20W
Voltage
24V

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK08
IP Class
IP44

Materials and finish

Housing
Plastic
Colour
Black (RAL 9004)

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Cable
Cable 2x20m

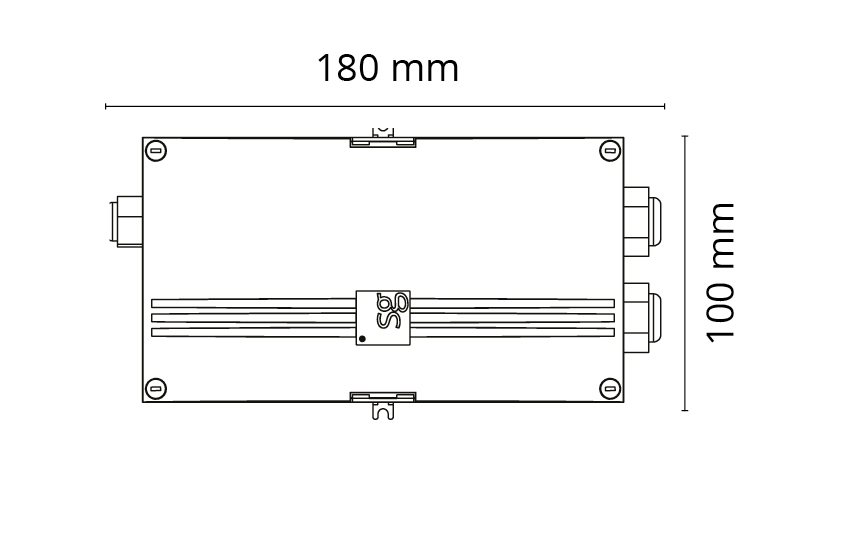

Dimensions

Length (mm) L
180
Width (mm) W
100
Height (mm) H
53
Weight (kg) gross/net
0.79 / 0.66

Packaging

Packaging dimensions (mm)
230 x 170 x 63
