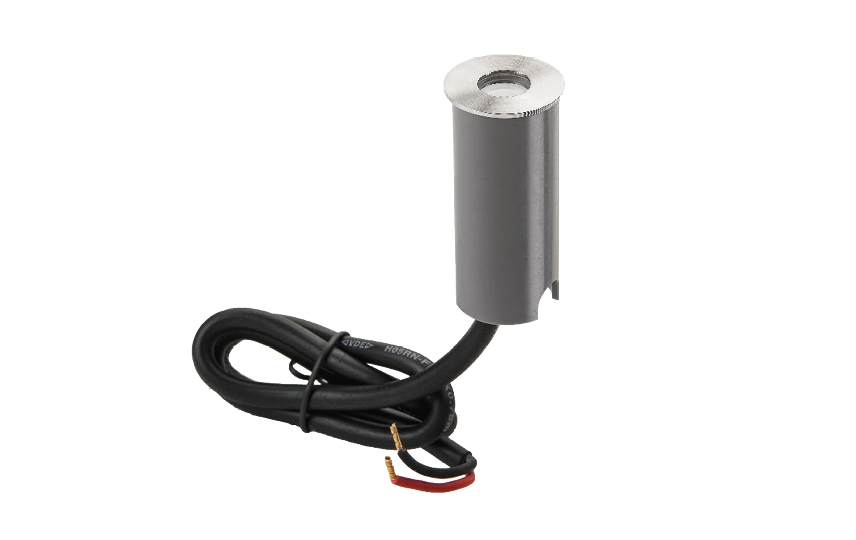

Luna Mini

Luna Mini Graphite 92lm 3000K Ra>80 Dimmable, depending on the driver

Article code
630016
EAN
7021986300161
Back to articlelist

Overview

Efficacy
61 lm/W
Lumen
92lm
IP Class
IP67
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Recessed, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • 24v
  • ik06
  • ip67
  • klasse_3
  • ce

Tools

Downloads

Specification sheet 630016 Revit file - Generic Luna Mini - Generic Revit file - Face Based Luna Mini - face based

See more

Eulumdat file (ldt) 7021986300161_Luna Mini Graphite 1,5W LED 3000K Ra80 24V-39562 Dialux file (uld) 7021986300161_Luna Mini Graphite 1,5W LED 3000K Ra80 24V Relux file (rolf) 7021986300161_Luna_Mini_Graphite_92lm_3000K_Ra_80_Dimmable,_depending_on_the_driver Mounting instruction Luna Mini_User Manual CE Declaration Luna Mini

How to specify

Text copied to clipboard

Luna Mini Graphite 92lm 3000K Ra>80 Dimmable, depending on the driver, Article code: 630016, EAN: 7021986300161, IP67, IK06, Electrical: System wattage: 1.5W, Voltage: 24V, Light technic: Type of light source: LED, Luminous flux: 92lm, Efficacy: 61 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Lens, Photobiological safety: RG 1, Control/Dimming: Type: Dimmable, depending on the driver, Protection: Luminaire class: Class III, IK Class: IK06, IP Class: IP67, Energy and approvals: Contains light source of energy class: D, Materials and finish: Housing: Aluminium and stainless steel, Colour: Graphite, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Outdoor, Dimensions: Length (mm) L: 46, Width (mm) W: 28, Height (mm) H: 46, Depth (D): 46, Cut-out (mm): 25, Weight (kg) gross/net: 0.145 / 0.132, Packaging: Packaging dimensions (mm): 100 x 65 x 50

Electrical

System wattage
1.5W
Voltage
24V

Light technic

Type of light source
LED
Luminous flux
92lm
Efficacy
61 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000
Light distribution
Direct
Optic
Lens
Photobiological safety
RG 1

Control/Dimming

Type
Dimmable, depending on the driver

Protection

Luminaire class
Class III
IK Class
IK06
IP Class
IP67

Energy and approvals

Contains light source of energy class
D

Materials and finish

Housing
Aluminium and stainless steel
Colour
Graphite
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Outdoor

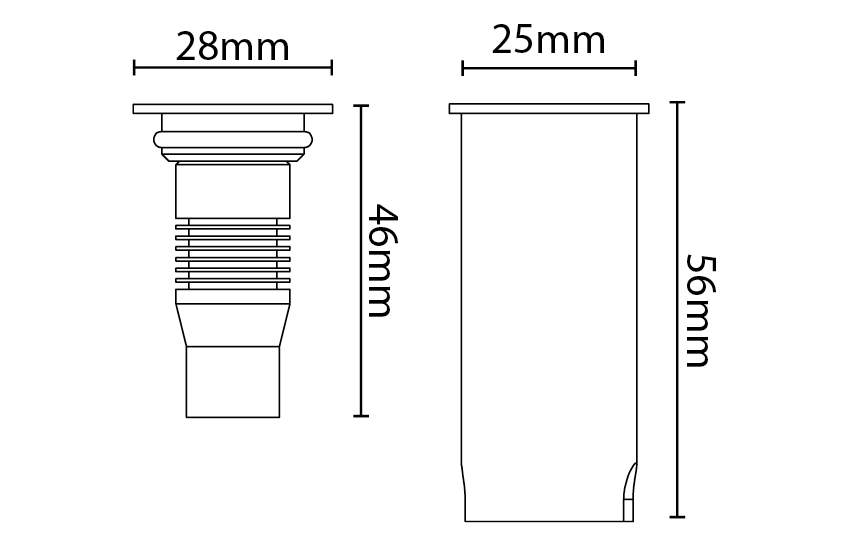

Dimensions

Length (mm) L
46
Width (mm) W
28
Height (mm) H
46
Depth (D)
46
Cut-out (mm)
25
Weight (kg) gross/net
0.145 / 0.132

Packaging

Packaging dimensions (mm)
100 x 65 x 50
