Nemo II / Siriak

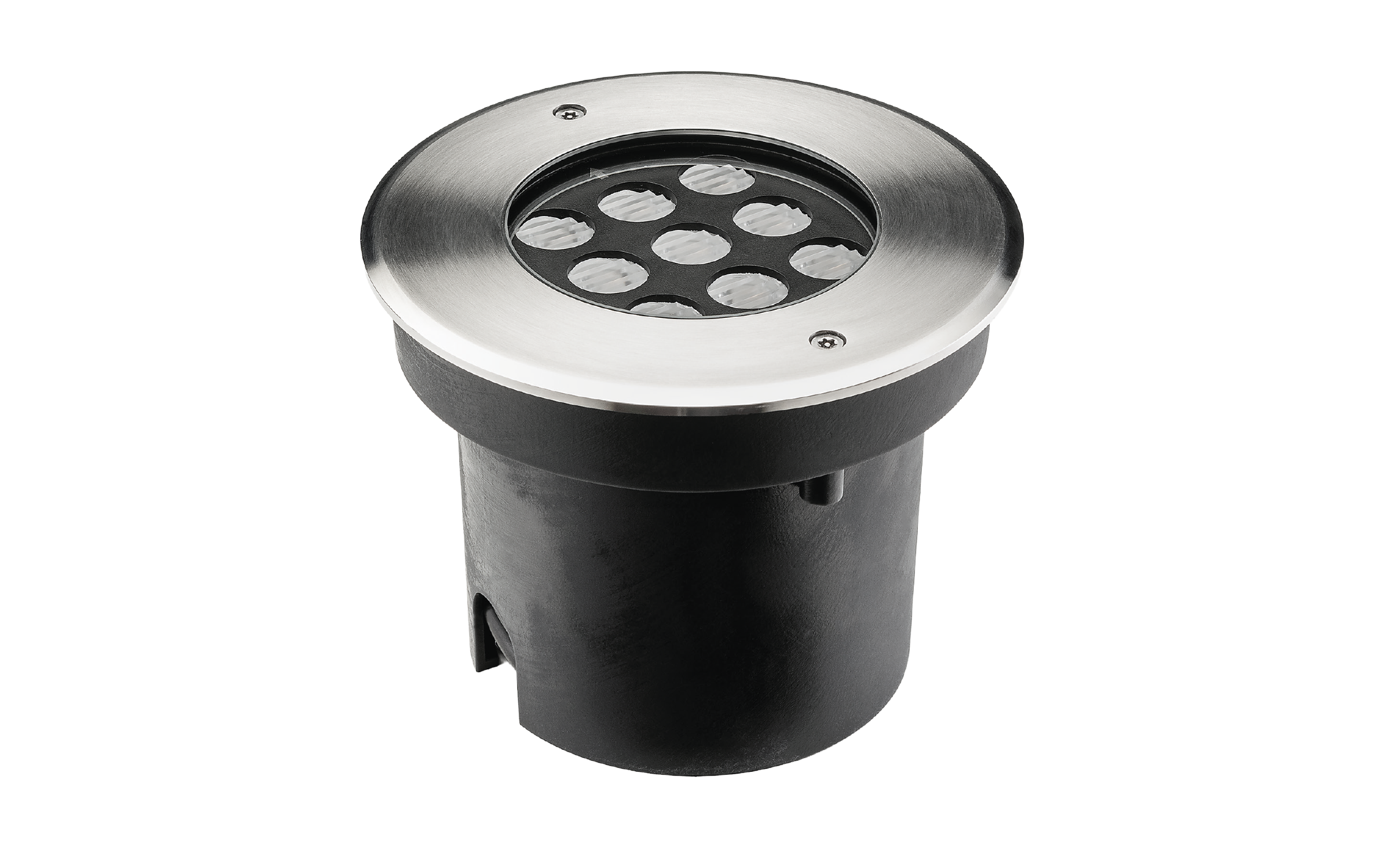

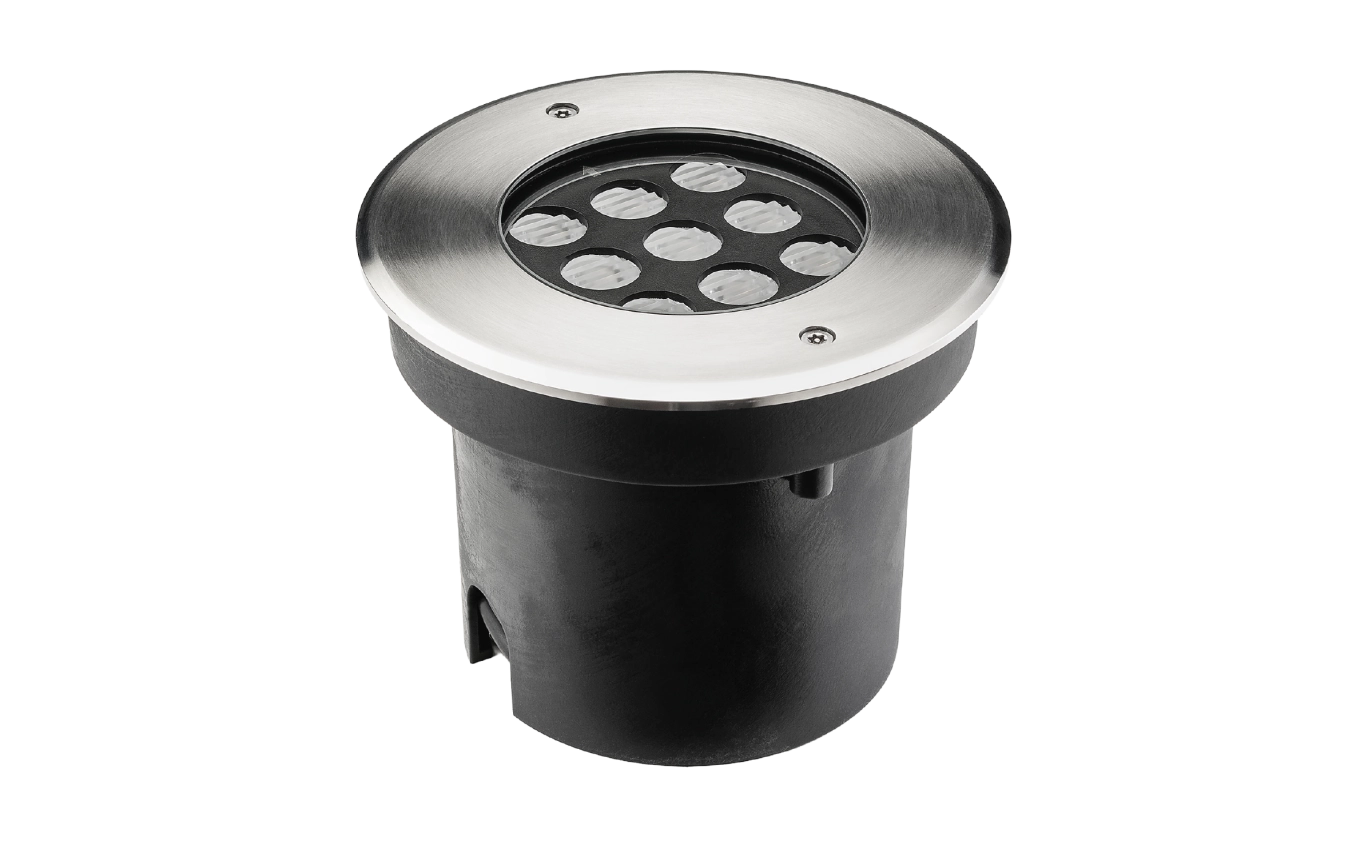

Nemo II Maxi Asymmetric 950lm 3000K Ra>80 Trailing edge

Article code
630121
EAN
7021986301212
Back to articlelist

Overview

Efficacy
68 lm/W
Lumen
950lm
IP Class
IP67
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Recessed, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • flickerfree
  • ik10
  • ip67
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 630121 Mounting instruction Nemo II-Siriak_User Manual CE Declaration Nemo II Relux file (rolf) 7021986301212_Nemo_II_Maxi_Asymmetric_950lm_3000K_Ra_80_Trailing_edge Eulumdat file (ldt) 7021986301212_Nemo II Maxi Asymmetric 950lm 3000K Ra80 Trailing edge Dialux file (uld) 7021986301212_Nemo II Maxi Asymmetric 950lm 3000K Ra80 Trailing edge

How to specify

Text copied to clipboard

Nemo II Maxi Asymmetric 950lm 3000K Ra>80 Trailing edge, Article code: 630121, EAN: 7021986301212, IP67, IK10, Electrical: System wattage: 14W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 60, B16: 98, C10: 60, C16: 98, Light technic: Type of light source: LED, Luminous flux: 950lm, Efficacy: 68 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Asymmetric, Optic: Lens, Visible flicker (PstLM): 0, Stroboscopic flicker (SVM): 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP67, Energy and approvals: Contains light source of energy class: E, Materials and finish: Housing: Aluminium and stainless steel, Optics: Glass, Mounting/Connection: Mounting: Recessed, Indoor / Outdoor, Cable: Cable 1m, Dimensions: Height (mm) H: 115, Diameter (mm) D: 150, Weight (kg) gross/net: 1.995 / 1.895, Packaging: Packaging dimensions (mm): 160 x 160 x 125

Electrical

System wattage
14W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 60, B16: 98, C10: 60, C16: 98

Light technic

Type of light source
LED
Luminous flux
950lm
Efficacy
68 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

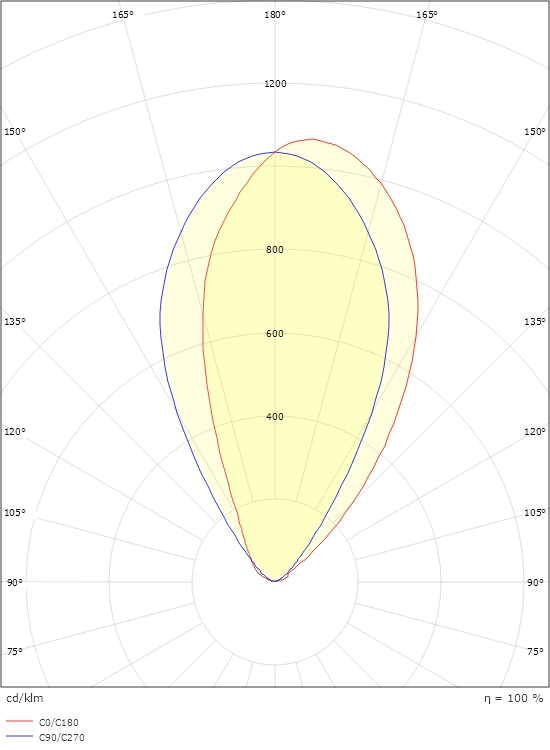

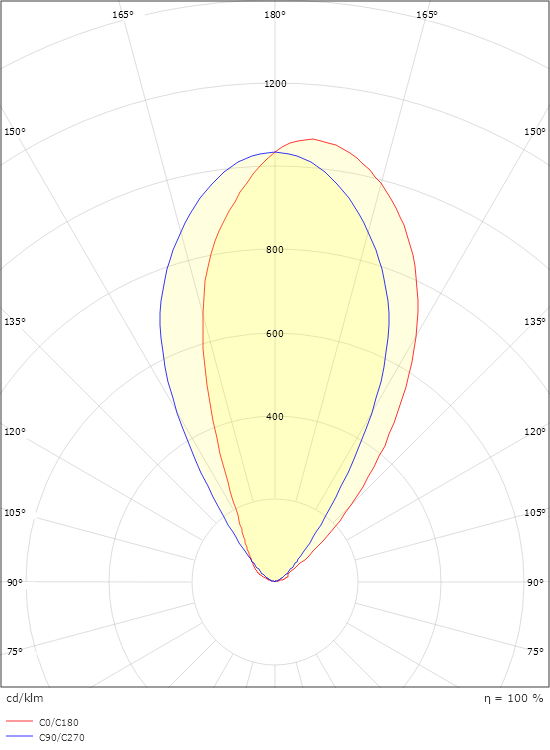

Light distribution
Asymmetric
Optic
Lens
Visible flicker (PstLM)
0
Stroboscopic flicker (SVM)
0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP67

Energy and approvals

Contains light source of energy class
E

Materials and finish

Housing
Aluminium and stainless steel
Optics
Glass

Mounting/Connection

Mounting
Recessed, Indoor / Outdoor
Cable
Cable 1m

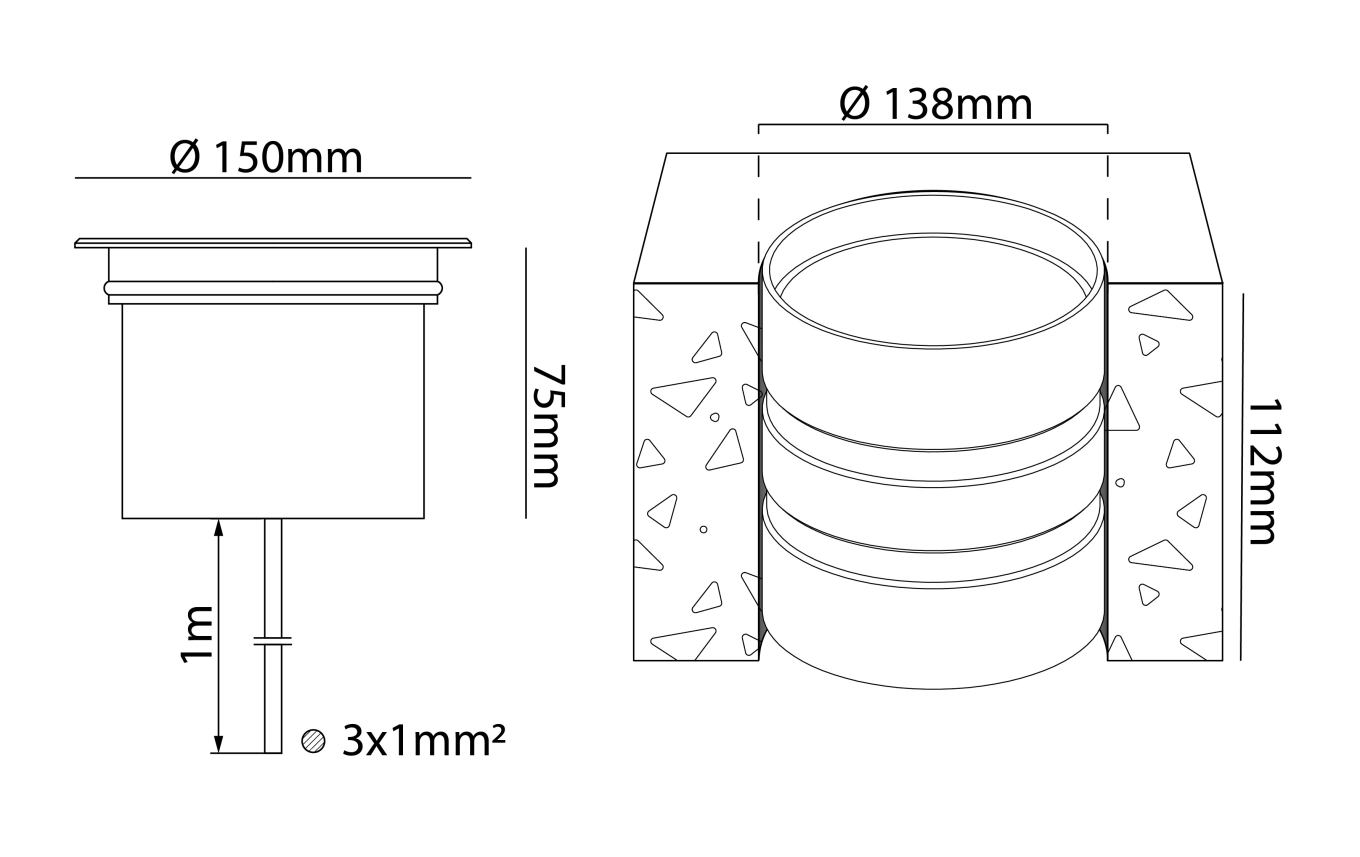

Dimensions

Height (mm) H
115
Diameter (mm) D
150
Weight (kg) gross/net
1.995 / 1.895

Packaging

Packaging dimensions (mm)
160 x 160 x 125
