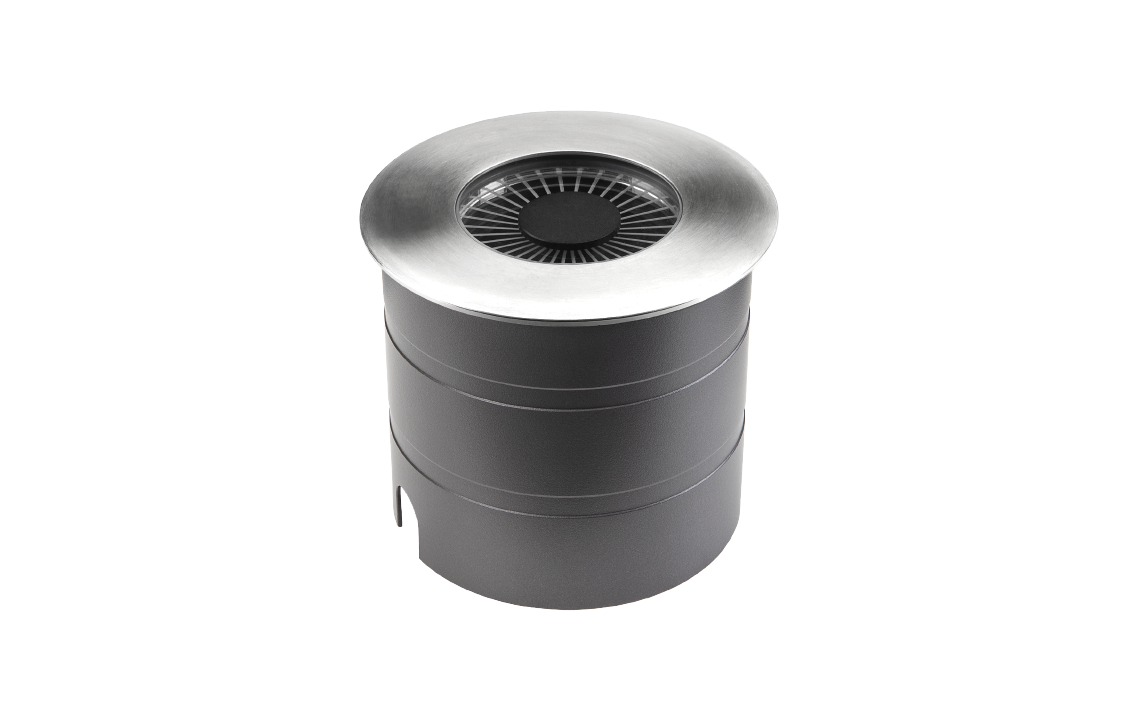

Nemo II / Siriak

Nemo Siriak 24lm 3000K Ra>80 Trailing edge

Article code
630075
EAN
7021986300758
Back to articlelist

Overview

Efficacy
6 lm/W
Lumen
24lm
IP Class
IP67
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Recessed, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • flickerfree
  • ik10
  • ip67
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 630075 Revit file - Generic Nemo Siriak - generic Revit file - Face Based Nemo Siriak - face based

See more

Eulumdat file (ldt) 7021986300758_Nemo Siriak 24lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986300758_Nemo Siriak 24lm 3000K Ra80 Trailing edge dimming Relux file (rolf) 7021986300758_Nemo_Siriak_24lm_3000K_Ra_80_Trailing_edge_dimming Mounting instruction Nemo II-Siriak_User Manual CE Declaration Nemo II

How to specify

Text copied to clipboard

Nemo Siriak 24lm 3000K Ra>80 Trailing edge, Article code: 630075, EAN: 7021986300758, IP67, IK10, Electrical: System wattage: 4W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 115, B16: 184, C10: 115, C16: 184, Light technic: Type of light source: LED, Luminous flux: 24lm, Efficacy: 6 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Lens, Visible flicker (PstLM): 0, Stroboscopic flicker (SVM): 0.01, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP67, Energy and approvals: Contains light source of energy class: F, Materials and finish: Housing: Aluminium and stainless steel, Optics: Glass, Mounting/Connection: Mounting: Recessed, Indoor / Outdoor, Cable: Cable 1m, Dimensions: Height (mm) H: 100, Diameter (mm) D: 110, Cut-out (mm): 98, Weight (kg) gross/net: 1.111 / 1.01, Packaging: Packaging dimensions (mm): 120 x 120 x 120

Electrical

System wattage
4W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 115, B16: 184, C10: 115, C16: 184

Light technic

Type of light source
LED
Luminous flux
24lm
Efficacy
6 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

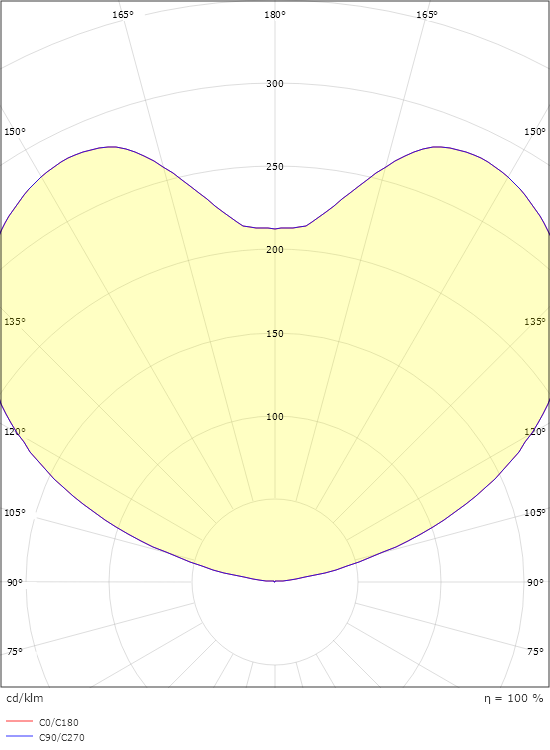

Light distribution
Direct
Optic
Lens
Visible flicker (PstLM)
0
Stroboscopic flicker (SVM)
0.01

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP67

Energy and approvals

Contains light source of energy class
F

Materials and finish

Housing
Aluminium and stainless steel
Optics
Glass

Mounting/Connection

Mounting
Recessed, Indoor / Outdoor
Cable
Cable 1m

Dimensions

Height (mm) H
100
Diameter (mm) D
110
Cut-out (mm)
98
Weight (kg) gross/net
1.111 / 1.01

Packaging

Packaging dimensions (mm)
120 x 120 x 120
