Frame Square Maxi
Frame Square Maxi Black 1980lm 3000K Ra>80 Emergency outdoor 3H
- Article code
- 8241000608
- EAN
- 5703821206075
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 90 lm/W
- Lumen
- 1980lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
Electrical
- System wattage
- 22W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
Light technic
- Type of light source
- LED
- Luminous flux
- 1980lm
- Emergency lumen
- EM 360 lm
- Efficacy
- 90 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L70/B20>100,000
- Lifetime
- L80/B20>75.000
- Minimum ambient temperature
- -20°C
- Optic
- Plastic Opal

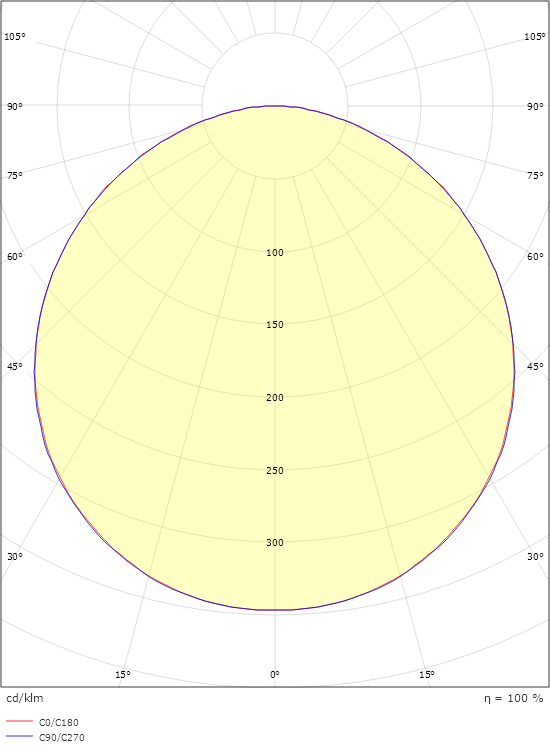

- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
Control/Dimming
- Type
- Emergency outdoor 3H
Protection
- Luminaire class
- Class II
- IK Class
- IK10
- IP Class
- IP66
- Fire protection class
- 850°C - 30s
Energy and approvals
- Contains light source of energy class
- F
Materials and finish
- Housing
- Aluminium
- Colour
- Black
- Optics
- UV-stabilized polycarbonate
Mounting/Connection
- Mounting
- Surface, Indoor / Outdoor
- Connection
- Screwless terminal block
Dimensions
- Length (mm) L
- 310
- Width (mm) W
- 310
- Height (mm) H
- 77
- Weight (kg) gross/net
- 3.7 / 3.5
Packaging
- Packaging dimensions (mm)
- 318 x 318 x 92
