Frame Square Maxi

Frame Square Maxi Graphite 1980lm 3000K Ra>80 Sensor Emergency

Article code
605366
EAN
7021986053661
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
94 lm/W
Lumen
1980lm
IP Class
IP66
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B20>
Mounting
Surface, Indoor
    5 years, Battery: 3 years Battery 5 years corrosion warranty 5 years, Battery: 3 years Warranty
  • indoor
  • el
  • dipswitch
  • ik10
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 605366 Mounting instruction Frame Square Sensor emergency_User Manual Eulumdat file (ldt) 7021986053661_Frame Square Maxi Sensor Emergency Graphite 21W LED 3000K Ra80-44297

See more

Dialux file (uld) 7021986053661_Frame Square Maxi Sensor Emergency Graphite 21W LED 3000K Ra80 Relux file (rolf) 7021986053661_Frame_Square_Maxi_Graphite_Sensor_Emergency_1980lm_3000K_Ra_80_Emergency_3H Revit file - Face Based Frame Square Maxi - face based CE Declaration Frame Square Maxi

How to specify

Text copied to clipboard

Frame Square Maxi Graphite 1980lm 3000K Ra>80 Sensor Emergency, Article code: 605366, EAN: 7021986053661, IP66, IK10, Electrical: System wattage: 21W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 1980lm, Emergency lumen: EM 360 lm, Efficacy: 94 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B20>100,000, Lifetime: L80/B20>75.000, Minimum ambient temperature: 0°C, Light distribution: Direct, Optic: Opal, Beam angle: 110°, Photobiological safety: RG 0, ULOR (<1%): Yes, when ceiling mounted, Control/Dimming: Type: Sensor Emergency, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP66, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 310, Width (mm) W: 310, Height (mm) H: 77, Weight (kg) gross/net: 3.65 / 3.45, Packaging: Packaging dimensions (mm): 318 x 318 x 92

Electrical

System wattage
21W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
1980lm
Emergency lumen
EM 360 lm
Efficacy
94 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B20>100,000
Lifetime
L80/B20>75.000
Minimum ambient temperature
0°C

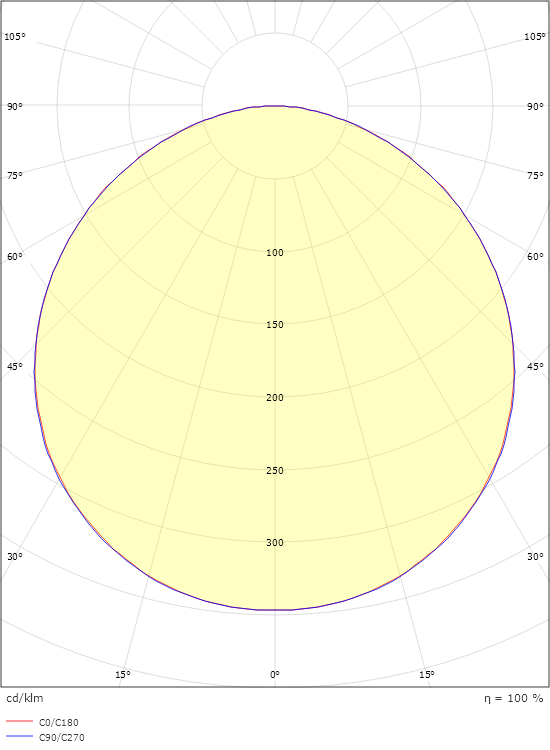

Light distribution
Direct
Optic
Opal
Beam angle
110°
Photobiological safety
RG 0
ULOR (<1%)
Yes, when ceiling mounted

Control/Dimming

Type
Sensor Emergency

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP66
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
310
Width (mm) W
310
Height (mm) H
77
Weight (kg) gross/net
3.65 / 3.45

Packaging

Packaging dimensions (mm)
318 x 318 x 92
