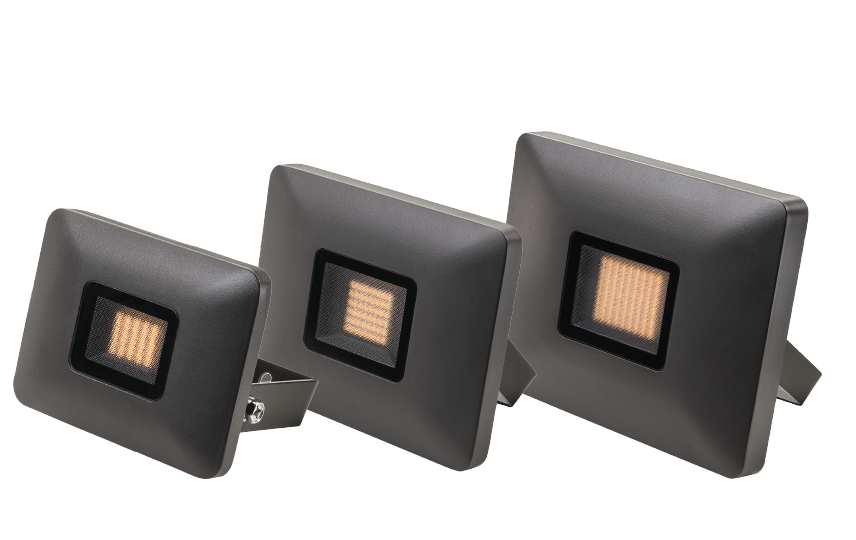

Flom

Flom provides energy- and money-saving outdoor lighting which can be used for the workplace, facade or the garden.Flom also comes with a daylight and motion sensor (PIR). After dark (below 3 lux), Flom automatically switches on when it detects movement at a distance of 2 to 6 metres (adjustable). It switches on within 5 seconds and stays on for 5 minutes (adjustable). It switches off automatically when no further movement is detected. Adjustable angle of bracket.

Article list

Flom

Outdoor Direct Surface SDCM: 3 Class I IK06 IP65 Ra>80 Beam angle: 100° L80/B50> 50,000

Filters

Color

Version

Colour temperature

System wattage

Lumen

Control gear

Filters

						Others	Tools
630018	Mini	3000K	10W	1060lm	On/Off	106 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630020	Midi	3000K	23W	2610lm	On/Off	113 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630024	Maxi	3000K	42W	4640lm	On/Off	110 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630019	Mini	3000K	10W	1060lm	PIR Sensor	106 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630021	Midi	3000K	23W	2610lm	PIR Sensor	113 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630025	Maxi	3000K	42W	4640lm	PIR Sensor	110 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630050	Maxi	3000K	42W	5400lm	On/Off	129 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630052	Midi	3000K	23W	2910lm	On/Off	127 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630054	Mini	3000K	10W	1290lm	On/Off	129 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630051	Maxi	3000K	42W	5400lm	PIR Sensor	129 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630053	Midi	3000K	23W	2910lm	PIR Sensor	127 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630055	Mini	3000K	10W	1290lm	PIR Sensor	129 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630034	Mini	4000K	10W	1140lm	On/Off	114 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630036	Midi	4000K	23W	2710lm	On/Off	118 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630040	Maxi	4000K	42W	4980lm	On/Off	119 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630035	Mini	4000K	10W	1140lm	PIR Sensor	114 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630037	Midi	4000K	23W	2710lm	PIR Sensor	118 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630041	Maxi	4000K	42W	4980lm	PIR Sensor	119 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
630018	Mini	3000K	10W	1060lm	On/Off	106 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630020	Midi	3000K	23W	2610lm	On/Off	113 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630024	Maxi	3000K	42W	4640lm	On/Off	110 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630019	Mini	3000K	10W	1060lm	PIR Sensor	106 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630021	Midi	3000K	23W	2610lm	PIR Sensor	113 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630025	Maxi	3000K	42W	4640lm	PIR Sensor	110 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630050	Maxi	3000K	42W	5400lm	On/Off	129 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630052	Midi	3000K	23W	2910lm	On/Off	127 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630054	Mini	3000K	10W	1290lm	On/Off	129 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630051	Maxi	3000K	42W	5400lm	PIR Sensor	129 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630053	Midi	3000K	23W	2910lm	PIR Sensor	127 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630055	Mini	3000K	10W	1290lm	PIR Sensor	129 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630034	Mini	4000K	10W	1140lm	On/Off	114 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630036	Midi	4000K	23W	2710lm	On/Off	118 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630040	Maxi	4000K	42W	4980lm	On/Off	119 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630035	Mini	4000K	10W	1140lm	PIR Sensor	114 lm/W, L120 x W95 x H44, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630037	Midi	4000K	23W	2710lm	PIR Sensor	118 lm/W, L160 x W130 x H52, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
630041	Maxi	4000K	42W	4980lm	PIR Sensor	119 lm/W, L200 x W160 x H64, Cable 1.5m	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Image	Article code	Description	Dimensions	Tools
	630090	Flom Graphite Sign Arm Aluminium	L695 x W125 x H87	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
	630091	Flom White Sign Arm Aluminium	L695 x W125 x H87	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
