Flom

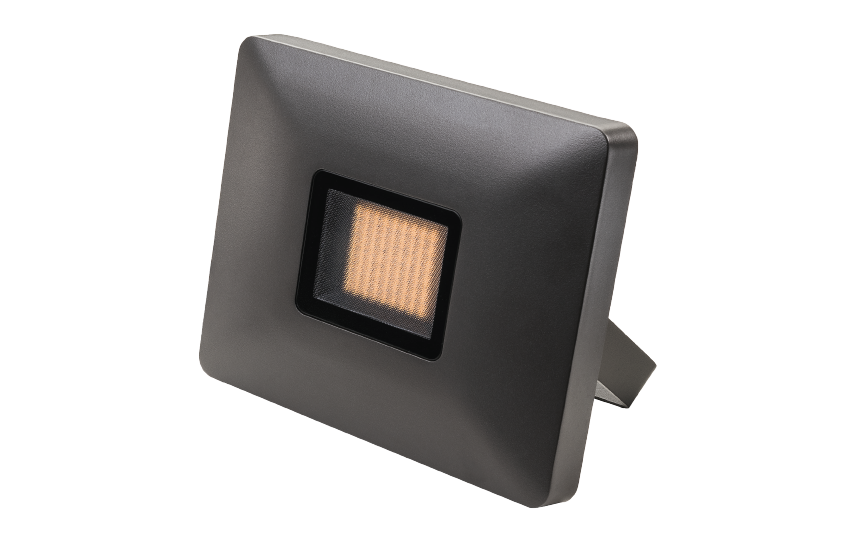

Flom Graphite Maxi 4640lm 3000K Ra>80 On/Off

Article code
630024
EAN
7021986300246
Back to articlelist

Overview

Efficacy
110 lm/W
Lumen
4640lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik06
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 630024 Revit file - Generic Flom_43W - generic Eulumdat file (ldt) 7021986300246_Flom Maxi Graphite 43W LED 3000K Ra80-43352

See more

Dialux file (uld) 7021986300246_Flom Maxi Graphite 43W LED 3000K Ra80 Relux file (rolf) 7021986300246_Flom_Graphite_Maxi_4640lm_3000K_Ra_80_On_Off Mounting instruction Flom_User Manual CE Declaration Flom

How to specify

Text copied to clipboard

Flom Graphite Maxi 4640lm 3000K Ra>80 On/Off, Article code: 630024, EAN: 7021986300246, IP65, IK06, Electrical: System wattage: 42W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 8, B16: 12, C10: 9, C16: 13, Light technic: Type of light source: LED, Luminous flux: 4640lm, Efficacy: 110 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B50>50,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Glass Frosted, Beam angle: 100°, Visible flicker (PstLM): 0.12, Stroboscopic flicker (SVM): 0.02, ULOR (<1%): Yes, up to 13° tilt angle, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK06, IP Class: IP65, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Outdoor, Cable: Cable 1.5m, Dimensions: Length (mm) L: 200, Width (mm) W: 160, Height (mm) H: 64, Weight (kg) gross/net: 1.722 / 1.565, Packaging: Packaging dimensions (mm): 210 x 80 x 200

Electrical

System wattage
42W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 8, B16: 12, C10: 9, C16: 13

Light technic

Type of light source
LED
Luminous flux
4640lm
Efficacy
110 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B50>50,000
Minimum ambient temperature
-25°C
Light distribution
Direct
Optic
Glass Frosted
Beam angle
100°
Visible flicker (PstLM)
0.12
Stroboscopic flicker (SVM)
0.02
ULOR (<1%)
Yes, up to 13° tilt angle

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK06
IP Class
IP65

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Outdoor
Cable
Cable 1.5m

Dimensions

Length (mm) L
200
Width (mm) W
160
Height (mm) H
64
Weight (kg) gross/net
1.722 / 1.565

Packaging

Packaging dimensions (mm)
210 x 80 x 200
