Flom

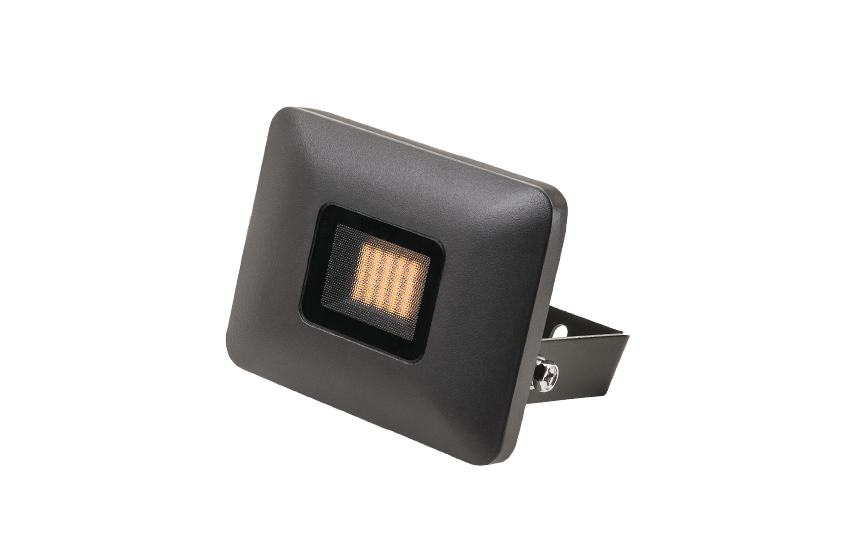

Flom Graphite Mini 1060lm 3000K Ra>80 On/Off

Article code
630018
EAN
7021986300185
Back to articlelist

Overview

Efficacy
106 lm/W
Lumen
1060lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik06
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 630018 Eulumdat file (ldt) 7021986300185_Flom Mini Graphite 10W LED 3000K Ra80-43509 Dialux file (uld) 7021986300185_Flom Mini Graphite 10W LED 3000K Ra80

See more

Relux file (rolf) 7021986300185_Flom_Graphite_Mini_1060lm_3000K_Ra_80_On_Off Revit file - Generic Flom 10W - generic Mounting instruction Flom_User Manual CE Declaration Flom

How to specify

Text copied to clipboard

Flom Graphite Mini 1060lm 3000K Ra>80 On/Off, Article code: 630018, EAN: 7021986300185, IP65, IK06, Electrical: System wattage: 10W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 40, B16: 65, C10: 44, C16: 72, Light technic: Type of light source: LED, Luminous flux: 1060lm, Efficacy: 106 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B50>50,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Glass Frosted, Beam angle: 100°, Visible flicker (PstLM): 0.29, Stroboscopic flicker (SVM): 0.03, ULOR (<1%): Yes, up to 13° tilt angle, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK06, IP Class: IP65, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Outdoor, Cable: Cable 1.5m, Dimensions: Length (mm) L: 120, Width (mm) W: 95, Height (mm) H: 44, Weight (kg) gross/net: 0.667 / 0.607, Packaging: Packaging dimensions (mm): 170 x 130 x 60

Electrical

System wattage
10W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 40, B16: 65, C10: 44, C16: 72

Light technic

Type of light source
LED
Luminous flux
1060lm
Efficacy
106 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B50>50,000
Minimum ambient temperature
-25°C
Light distribution
Direct
Optic
Glass Frosted
Beam angle
100°
Visible flicker (PstLM)
0.29
Stroboscopic flicker (SVM)
0.03
ULOR (<1%)
Yes, up to 13° tilt angle

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK06
IP Class
IP65

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Outdoor
Cable
Cable 1.5m

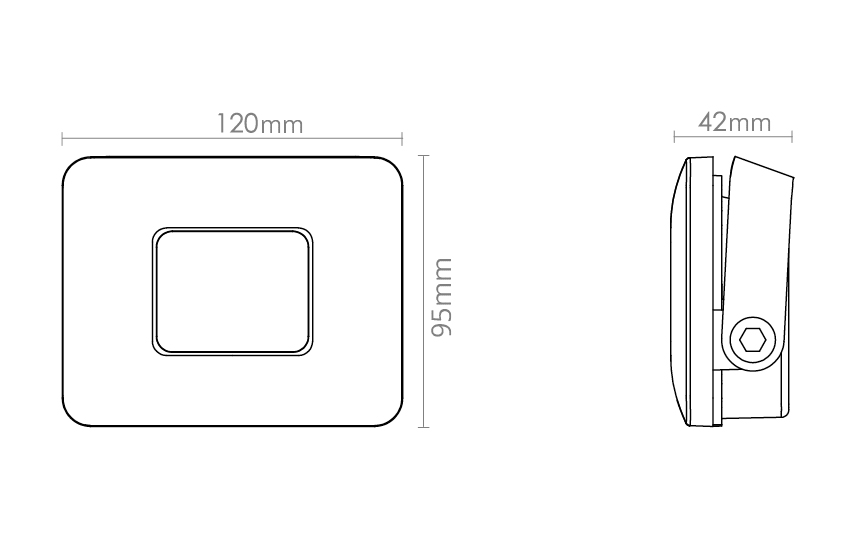

Dimensions

Length (mm) L
120
Width (mm) W
95
Height (mm) H
44
Weight (kg) gross/net
0.667 / 0.607

Packaging

Packaging dimensions (mm)
170 x 130 x 60
