Tardo

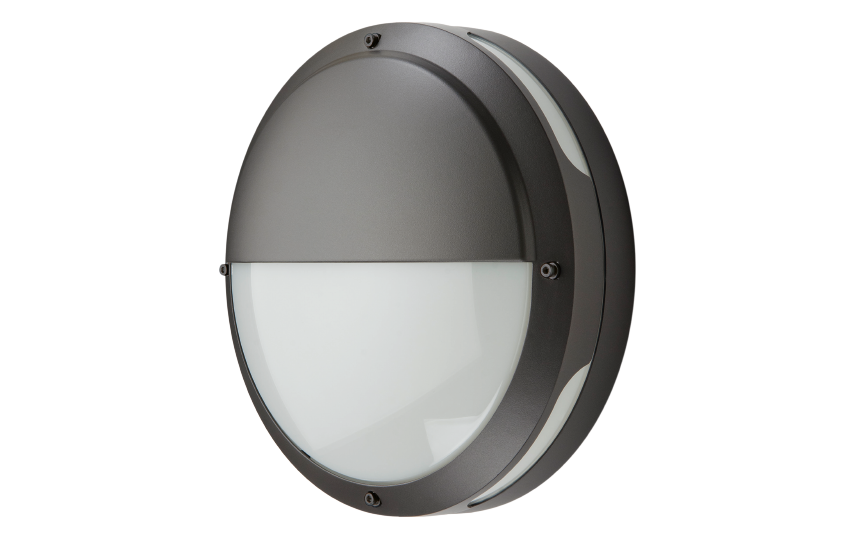

Tardo 2000 Graphite 870lm 3000K Ra>80 Trailing edge

Article code
633896
EAN
7021986338966
Back to articlelist

Overview

Efficacy
62 lm/W
Lumen
870lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B50>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty
  • indoor
  • outdoor
  • dipswitch
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 633896 Eulumdat file (ldt) 7021986338966_Tardo 2000 Graphite 810lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986338966_Tardo 2000 Graphite 810lm 3000K Ra80 Trailing edge dimming

See more

Relux file (rolf) 7021986338966_Tardo_2000_Graphite_810lm_3000K_Ra_80_Trailing_edge_dimming Revit file - Face Based Tardo - face based Mounting instruction Tardo_User Manual CE Declaration Tardo

How to specify

Text copied to clipboard

Tardo 2000 Graphite 870lm 3000K Ra>80 Trailing edge, Article code: 633896, EAN: 7021986338966, IP65, IK10, Electrical: System wattage: 14W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 870lm, Efficacy: 62 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>100,000, Light distribution: Direct/Indirect, Optic: Opal, Beam angle: 120°, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Module: 2000, Connection: Screwless terminal block, Dimensions: Diameter (mm) D: 325, Depth (D): 105, Weight (kg) gross/net: 3.1 / 2.52, Packaging: Packaging dimensions (mm): 335 x 335 x 115

Electrical

System wattage
14W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
870lm
Efficacy
62 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>100,000

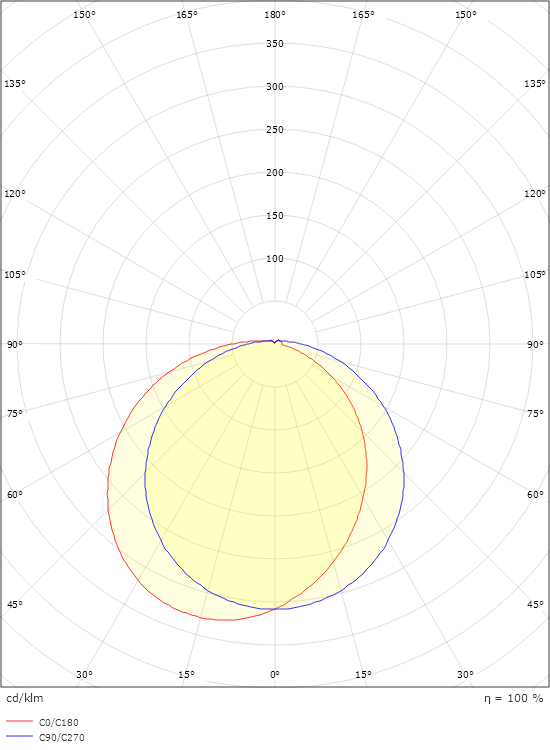

Light distribution
Direct/Indirect
Optic
Opal
Beam angle
120°
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Module
2000
Connection
Screwless terminal block

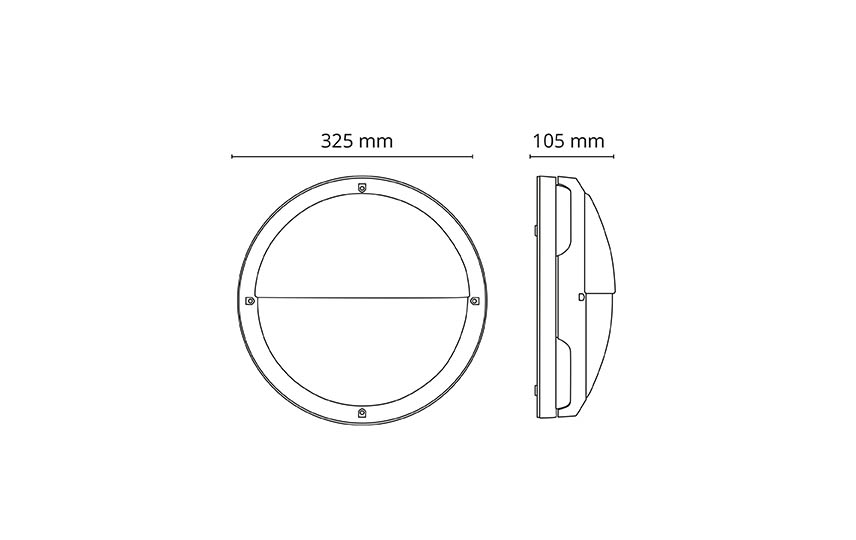

Dimensions

Diameter (mm) D
325
Depth (D)
105
Weight (kg) gross/net
3.1 / 2.52

Packaging

Packaging dimensions (mm)
335 x 335 x 115
