Uno

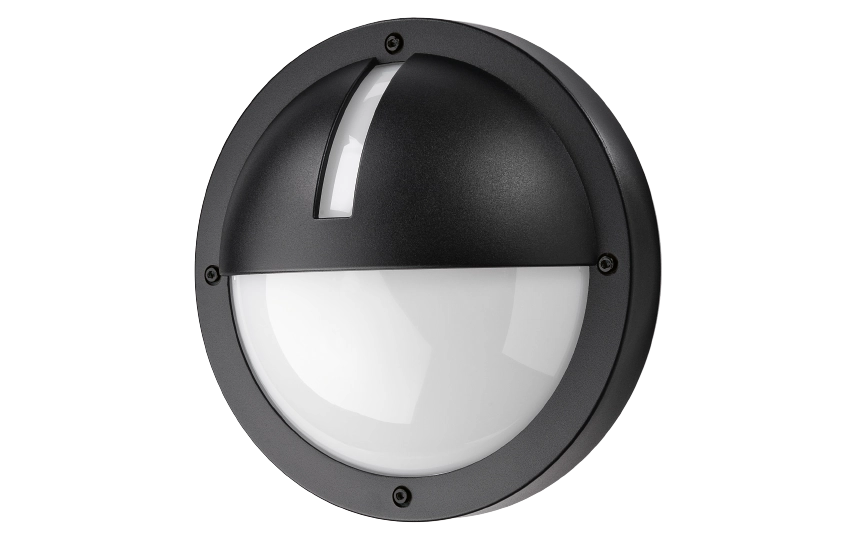

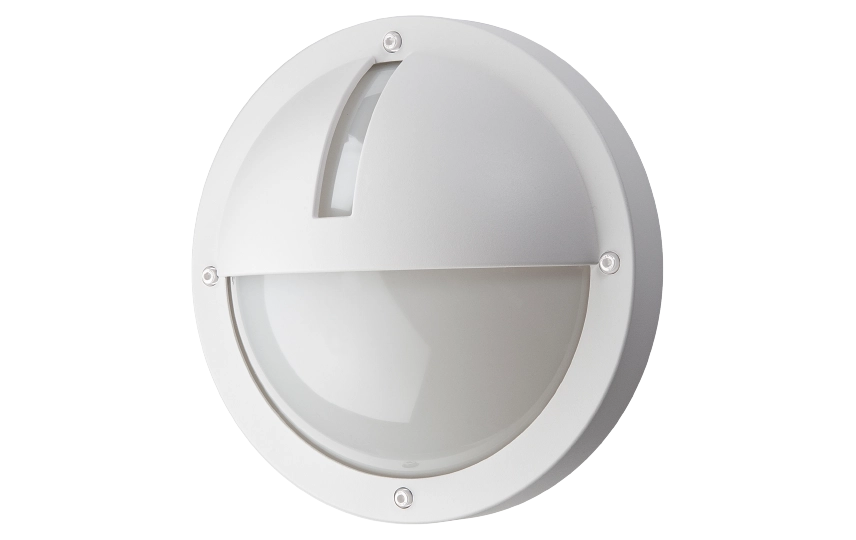

Attractive, round wall luminaire with half-diffuser and slit that can be installed both indoors and outdoors. Made of die-cast powder-coated aluminium. Diffuser made of UV-stabilised opal polycarbonate.Two inputs/outputs for cables, option of both visible and concealed cabling, and loopable quick clips. Variants with integrated Twilight relay. IP65 and vandalresistant rating IK10.

Article list

Download product sheet

Uno

Indoor, Outdoor Direct Surface SDCM: 3 Class II IK10 IP65 Ra>80 Beam angle: 120° L70/B10> 50,000

Filters

Color

Colour temperature

Lumen

Control gear

					Others	Tools
644641	3000K	8W	440lm	Sensor	55 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
644640	3000K	8W	440lm	Trailing edge	55 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
644644	3000K	8W	440lm	Twilight	55 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
643641	3000K	8W	440lm	Sensor	55 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
643640	3000K	8W	440lm	Trailing edge	55 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
643644	3000K	8W	440lm	Twilight	55 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641641	3000K	8W	530lm	Sensor	66 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
641640	3000K	8W	530lm	Trailing edge	66 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
641644	3000K	8W	530lm	Twilight	66 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
643642	4000K	8W	460lm	Trailing edge	58 lm/W, Ø270 x D130, 1100, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
614640					Ø270 x H120 x D130, E27, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
623640					Ø270 x H120 x D130, E27, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
611640					Ø270 x H120 x D130, E27, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks
