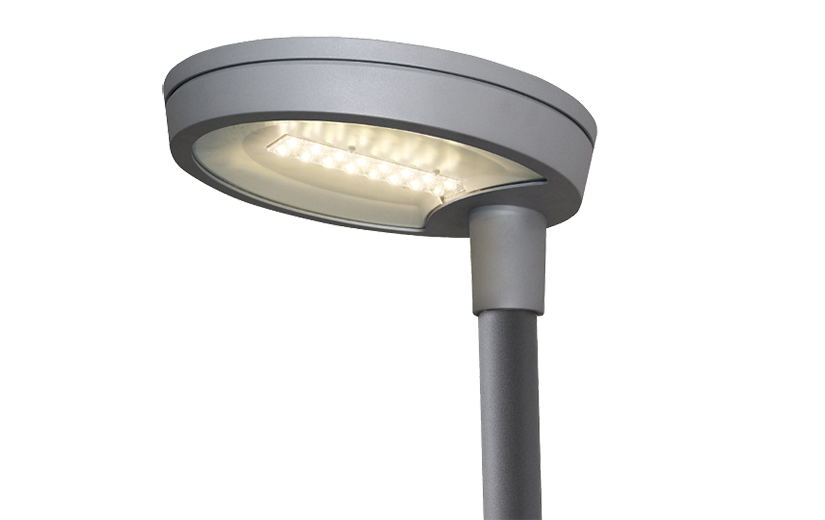

CircLED Multi

CircLED Multi Grey Lens 3, Class II Top 5820lm 4000K Ra>70 On/Off

Article code
8246094128
EAN
5703821176903
Back to articlelist

Overview

Efficacy
139 lm/W
Lumen
5820lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
Lifetime
100,000 L80/B10>
Mounting
Post - top (Ø60mm), Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik09
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246094128 Eulumdat file (ldt) 5703821176903_CircLED Multi Grey Lens III, Class II Top 5820lm 4000K Ra70 OnOff Dialux file (uld) 5703821176903_CircLED Multi Grey Lens III, Class II Top 5820lm 4000K Ra70 OnOff

See more

Relux file (rolf) 5703821176903_CircLED_Multi_Grey_Lens_III,_Class_II_Top_5820lm_4000K_Ra_70_On_Off EPD NEPD-5125-4458_CircLED-Multi-Lens-III-42W Revit file - Generic CircLED Multi - Generic Revit file - Face Based CircLED Multi Mounting instruction CircLED Multi Mounting Instruction CE Declaration CircLED Multi

How to specify

Text copied to clipboard

CircLED Multi Grey Lens 3, Class II Top 5820lm 4000K Ra>70 On/Off, Article code: 8246094128, EAN: 5703821176903, IP66, IK09, Electrical: System wattage: 42W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 7, B16: 12, C10: 11, C16: 19, Light technic: Type of light source: LED, Luminous flux: 5820lm, Efficacy: 139 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>70, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Light distribution: Multi Lens, Optic: Lens III, Visible flicker (PstLM): 0.1, Stroboscopic flicker (SVM): 0, ULOR (<1%): Yes / Yes, up to 17° tilt angle, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IK Class: IK09, IP Class: IP66, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Die-cast aluminium, Colour: Grey (structure 2150 sablé), Optics: Tempered glass, Mounting/Connection: Mounting: Post - top (Ø60mm), Outdoor, Cable: Cable 2x1mm² 10m, Wind projected area: 0,0415m² - Max 6,2 kg, Dimensions: Length (mm) L: 460, Width (mm) W: 390, Height (mm) H: 185, Weight (kg) gross/net: 9.2 / 9, Packaging: Packaging dimensions (mm): 460 x 390 x 185

Electrical

System wattage
42W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 7, B16: 12, C10: 11, C16: 19

Light technic

Type of light source
LED
Luminous flux
5820lm
Efficacy
139 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000

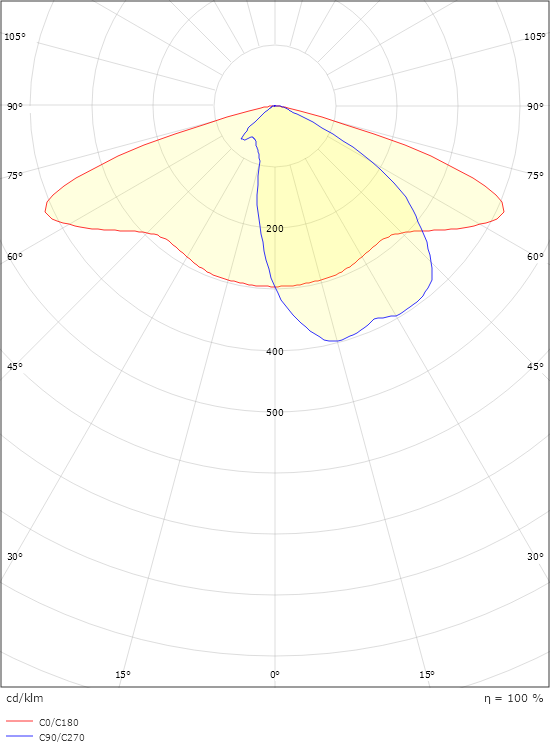

Light distribution
Multi Lens
Optic
Lens III
Visible flicker (PstLM)
0.1
Stroboscopic flicker (SVM)
0
ULOR (<1%)
Yes / Yes, up to 17° tilt angle

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IK Class
IK09
IP Class
IP66
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Die-cast aluminium
Colour
Grey (structure 2150 sablé)
Optics
Tempered glass

Mounting/Connection

Mounting
Post - top (Ø60mm), Outdoor
Cable
Cable 2x1mm² 10m
Wind projected area
0,0415m² - Max 6,2 kg

Dimensions

Length (mm) L
460
Width (mm) W
390
Height (mm) H
185
Weight (kg) gross/net
9.2 / 9

Packaging

Packaging dimensions (mm)
460 x 390 x 185
