CircLED Multi
CircLED Multi Grey Lens 3, Class II Side 9870lm 4000K Ra>70 On/Off
- Article code
- 8246094157
- EAN
- 5703821176934
Overview
- Efficacy
- 120 lm/W
- Lumen
- 9870lm
- IP Class
- IP66
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>70
- Lifetime
- 80,000 L80/B10>
- Mounting
- Pole - Side (Ø48mm), Outdoor
Electrical
- System wattage
- 82W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 8, B16: 12, C10: 12, C16: 20
Light technic
- Type of light source
- LED
- Luminous flux
- 9870lm
- Efficacy
- 120 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>70
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>80,000

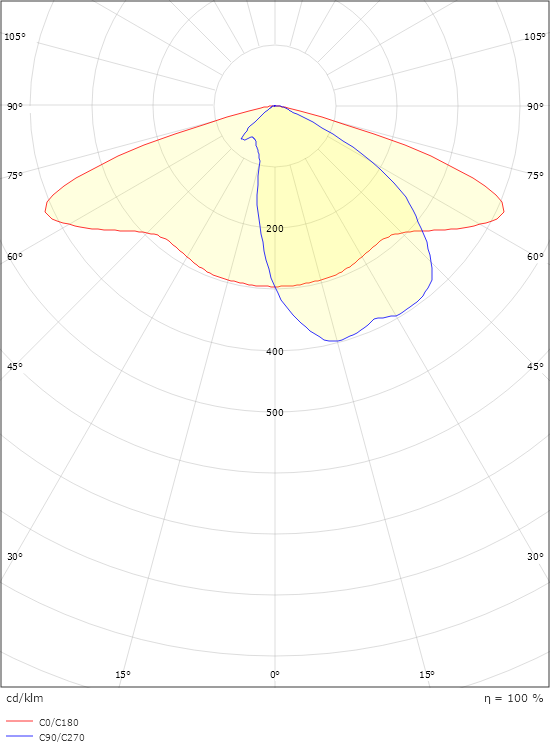

- Light distribution
- Multi Lens
- Optic
- Lens III
- ULOR (<1%)
- Yes / Yes, up to 17° tilt angle
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class II
- IK Class
- IK09
- IP Class
- IP66
- Surge protection
- Integrated (min. 4 kV)
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Die-cast aluminium
- Colour
- Grey (structure 2150 sablé)
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Pole - Side (Ø48mm), Outdoor
- Cable
- Cable 2x1mm² 10m
- Wind projected area
- 0,0415m² - Max 6,2 kg
Dimensions
- Length (mm) L
- 523
- Width (mm) W
- 390
- Height (mm) H
- 135
- Weight (kg) gross/net
- 9.2 / 9
Packaging
- Packaging dimensions (mm)
- 460 x 390 x 185
