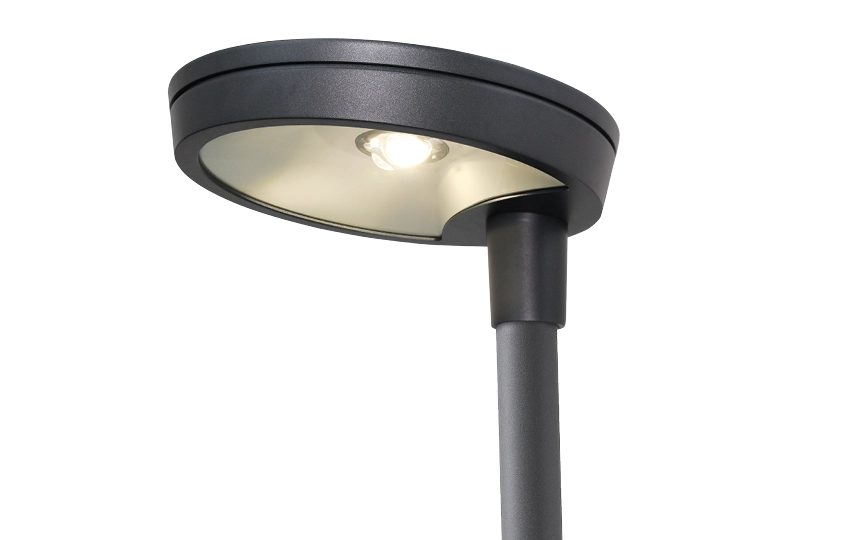

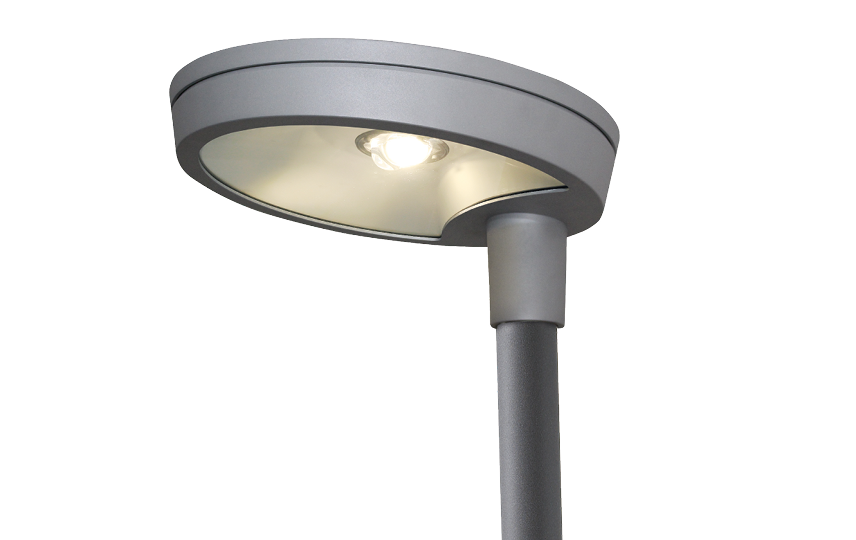

CircLED Single
Design: Christian Hvidt. Light for mounting on mast, IP65-rated. Luminaire body made of die-cast aluminium, powder-coated in black or grey. Reflector made of aluminium, powder-coated white. Optics are particularly well suited to giving a direct light distribution due to the tempered glass front. Complete with LED driver for operation of LED light sources mounted to component rail pre-mounted with six-metre connection cable. Lamp head prepared for mounting at 60 mm. Electrical rating class II. IK09. CircLED is based on the latest LED technology and optics for a long-lasting solution for streets and small roads, public areas and paths. CircLED is available as a single lens or a multi-lens version. Both combine energy savings, durability and precise light distribution and are optimal solutions for retrofitting of old mercury or sodium lamps.
Article list
CircLED Single
:
Outdoor
Light distribution:
Single Lens
SDCM:
2
Luminaire class:
Class II, Class I
IK Class:
IK09
IP Class:
IP66
Colour rendering (Ra):
Ra>80
Lifetime:
L90/B10> 100,000
Filters
| Others | Tools | ||||||
|---|---|---|---|---|---|---|---|
| 4000K | 14W | 1640lm | On/Off |
|
|||
| 4000K | 21W | 2430lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 14W | 1640lm | DYNADIM Profil 1 |
|
|||
| 4000K | 21W | 2430lm | DYNADIM Profil 1 |
|
|||
| 4000K | 14W | 1640lm | DYNADIM Profil 1 |
|
|||
| 4000K | 21W | 2430lm | DYNADIM Profil 1 |
|
|||
| 4000K | 14W | 1640lm | On/Off |
|
|||
| 4000K | 14W | 1640lm | On/Off |
|
|||
| 4000K | 21W | 2430lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 21W | 2430lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 21W | 2170lm | On/Off |
|
|||
| 4000K | 14W | 1640lm | On/Off |
|
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Sorry, we couldn’t find what you are looking for.
| Others | Tools | ||||||
|---|---|---|---|---|---|---|---|
| 4000K | 14W | 1640lm | On/Off |
|
|||
| 4000K | 21W | 2430lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 14W | 1640lm | DYNADIM Profil 1 |
|
|||
| 4000K | 21W | 2430lm | DYNADIM Profil 1 |
|
|||
| 4000K | 14W | 1640lm | DYNADIM Profil 1 |
|
|||
| 4000K | 21W | 2430lm | DYNADIM Profil 1 |
|
|||
| 4000K | 14W | 1640lm | On/Off |
|
|||
| 4000K | 14W | 1640lm | On/Off |
|
|||
| 4000K | 21W | 2430lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 21W | 2430lm | On/Off |
|
|||
| 4000K | 30W | 3320lm | On/Off |
|
|||
| 4000K | 21W | 2170lm | On/Off |
|
|||
| 4000K | 14W | 1640lm | On/Off |
|
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Sorry, we couldn’t find what you are looking for.
Accessories
| Image | Article code | Description | Dimensions | Tools |
|---|---|---|---|---|
| Galvanized Pole 3m | ||||
| Galvanized Pole 4m | ||||
| Galvanized Conical Pole 3m | ||||
| Galvanized Conical Pole 4m | ||||
| Galvanized Ground anchor | ||||
| Galvanized Reducer part from Ø76 to Ø60 | L230 x W98 x H230 | |||
| Grey Design pole 3m | ||||
| Grey Design pole 4m | ||||
| Mounting unit |
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Sorry, we couldn’t find what you are looking for.
