CircLED Single
CircLED Single Black Side 3320lm 4000K Ra>80 On/Off
- Article code
- 8246086165
- EAN
- 5703821167109
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 111 lm/W
- Lumen
- 3320lm
- IP Class
- IP66
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Pole - Side (Ø48mm), Outdoor
Electrical
- System wattage
- 30W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
Light technic
- Type of light source
- LED
- Luminous flux
- 3320lm
- Efficacy
- 111 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 2
- Lifetime
- L90/B10>100,000

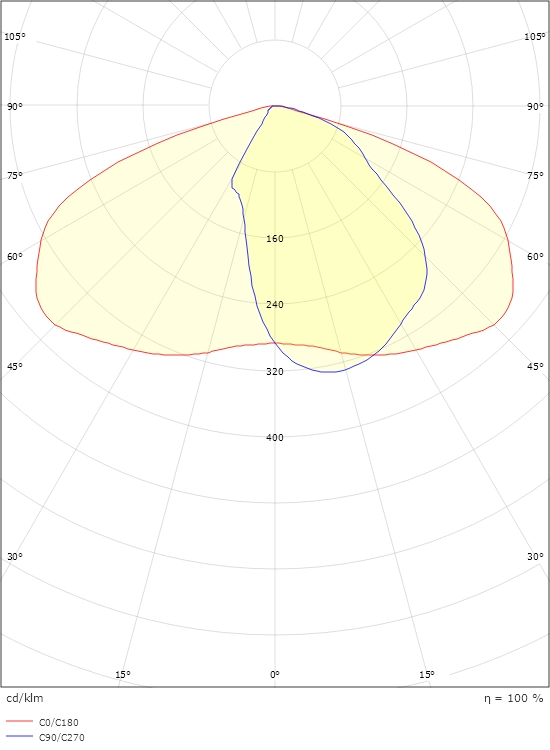

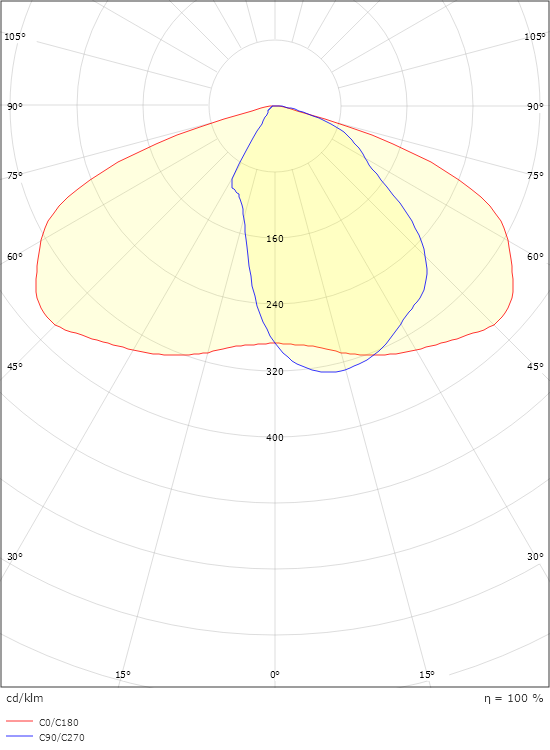

- Light distribution
- Single Lens
- Optic
- Lens
- ULOR (<1%)
- Yes / Yes, up to 17° tilt angle
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class II
- IK Class
- IK09
- IP Class
- IP66
- Surge protection
- Integrated (min. 4 kV)
Energy and approvals
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Die-cast aluminium
- Colour
- Black (20% gloss)
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Pole - Side (Ø48mm), Outdoor
- Cable
- Cable 2x1mm² 10m
- Wind projected area
- 0,0415m² - Max 6,2 kg
Dimensions
- Length (mm) L
- 523
- Width (mm) W
- 390
- Height (mm) H
- 135
- Weight (kg) gross/net
- 8.2 / 8
Packaging
- Packaging dimensions (mm)
- 525 x 395 x 210
