CircLED Single

CircLED Single Top Black 3320lm 4000K Ra>80 On/Off

SG code
8246084510
EAN
5703821165945
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
111 lm/W
Lumen
3320lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Post - top (Ø60mm), Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik09
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246084510 Mounting instruction CircLED Single Mounting Instruction CE Declaration CircLED Single Relux file (rolf) 5703821165945_CircLED_Single_Black_Top_3320lm_4000K_Ra_80_On_Off Eulumdat file (ldt) 5703821165945_CircLED Single Black 30W LED 4000K Ra80-24531 Dialux file (uld) 5703821165945_CircLED Single Black 30W LED 4000K Ra80 Revit file - Generic CircLED Single - Generic Revit file - Face Based CircLED Single

How to specify

Text copied to clipboard

CircLED Single Top Black 3320lm 4000K Ra>80 On/Off, Article code: 8246084510, EAN: 5703821165945, IP66, IK09, Electrical: System wattage: 30W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 3320lm, Efficacy: 111 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Single Lens, Optic: Lens, ULOR (<1%): Yes / Yes, up to 17° tilt angle, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IK Class: IK09, IP Class: IP66, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Die-cast aluminium, Colour: Black (20% gloss), Optics: Tempered glass, Mounting/Connection: Mounting: Post - top (Ø60mm), Outdoor, Module: Top, Cable: Cable 2x1mm² 6m, Wind projected area: 0,0415m² - Max 6,2 kg, Dimensions: Length (mm) L: 460, Width (mm) W: 390, Height (mm) H: 185, Weight (kg) gross/net: 8.2 / 8, Packaging: Packaging dimensions (mm): 525 x 395 x 210

Electrical

System wattage
30W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
3320lm
Efficacy
111 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

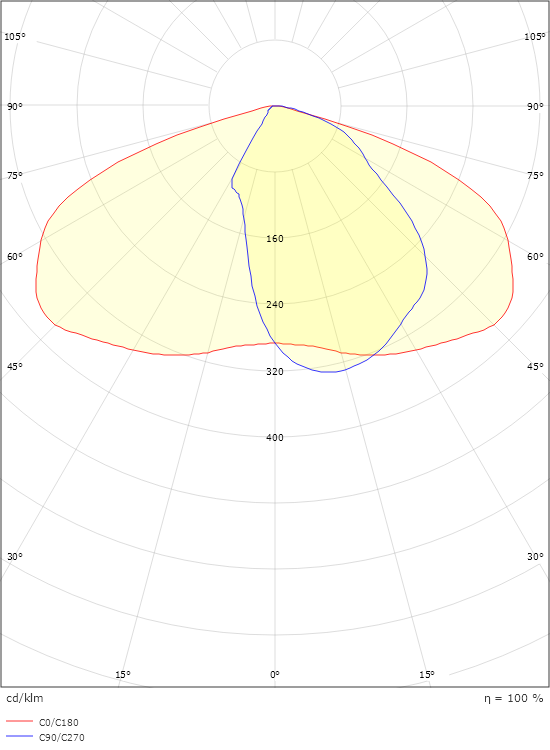

Light distribution
Single Lens
Optic
Lens
ULOR (<1%)
Yes / Yes, up to 17° tilt angle

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IK Class
IK09
IP Class
IP66
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Die-cast aluminium
Colour
Black (20% gloss)
Optics
Tempered glass

Mounting/Connection

Mounting
Post - top (Ø60mm), Outdoor
Module
Top
Cable
Cable 2x1mm² 6m
Wind projected area
0,0415m² - Max 6,2 kg

Dimensions

Length (mm) L
460
Width (mm) W
390
Height (mm) H
185
Weight (kg) gross/net
8.2 / 8

Packaging

Packaging dimensions (mm)
525 x 395 x 210
